Rectangular Outdoor LED Wall Sconce
Rectangular Outdoor LED Wall Sconce
Rectangular Outdoor LED Wall Sconce
Rectangular Outdoor LED Wall Sconce
Rectangular Outdoor LED Wall Sconce

    Rectangular Outdoor LED Wall Sconce

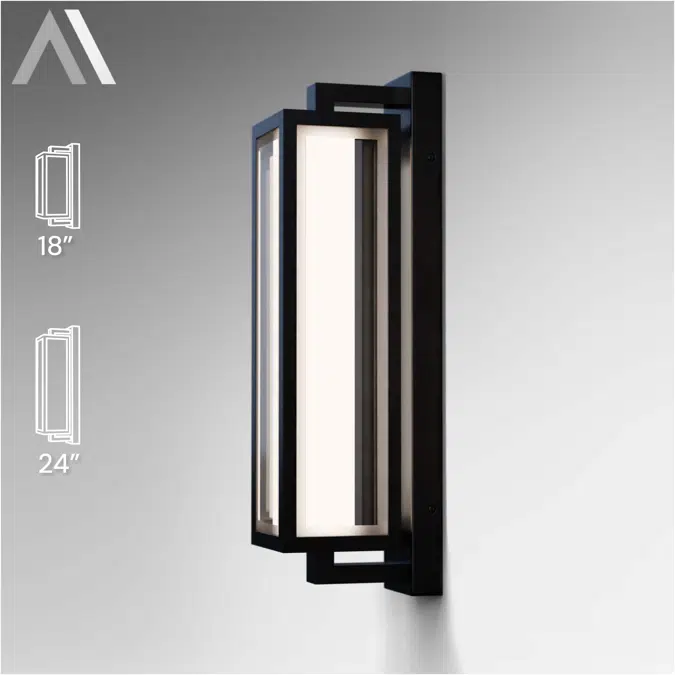

    Alcon Lighting’s 11258 rectangular outdoor LED wall sconce provides energy-efficient wall lighting for commercial, hospitality and residential exteriors. Constructed with a durable aluminum housing and black powder finish, the outdoor sconce is wet-location rated for reliable performance in outdoor environments. Delivering 1,000 lumens at 18 inches or 1,400 lumens at 24 inches, the fixture features field-adjustable color temperatures from 2700K to 5000K. A clear inner lens with frosted edges enhances exterior lighting, giving it a refined appearance. Compatible with 0-10V dimming (120-277V) or TRIAC/ELV dimming (120V), this Title 24-compliant wall sconce provides flexible control for exterior wall applications.

    Specification
    • Construction: Aluminum housing with black powder-coat finish

      Lens: Clear with frosted edges

      Voltage: 120-277VAC, 60Hz

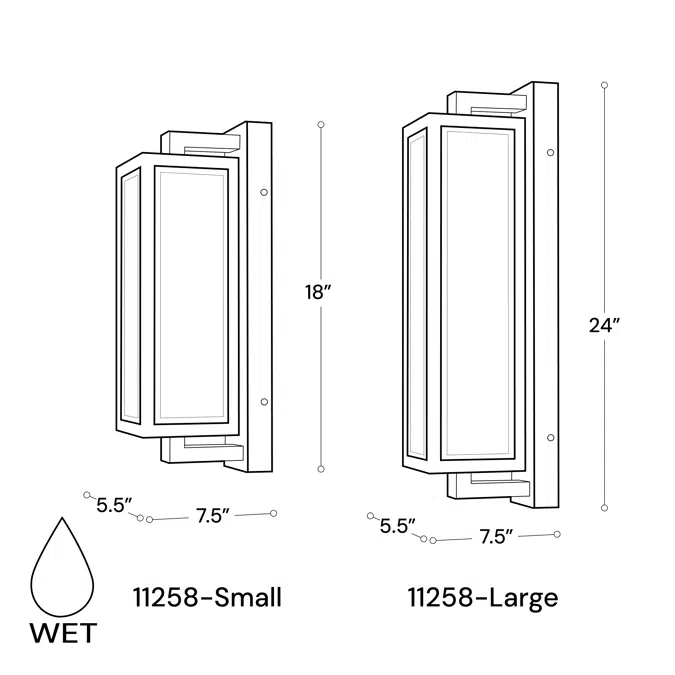

      Wattage: 20W (18"), 26W (24")

      Lumens: 1000 lm (18"), 1400 lm (24")

      Color temperature (CCT): Field-selectable 2700K/3000K/3500K/4000K/5000K

      Dimming driver: 0-10V (120-277V) or TRIAC/ELV (120V)

      CRI: 90+

      Emergency battery: Internal 90 min.

      Minimum starting temperature: -4° F

      Life: 50,000 Hours

      Warranty: 5 years carefree for parts & components (labor not included)

      Listings: cETLus listed for wet locations. Title 24-JA8 compliant

    Technical specification
    • Unique ref.11258-outdoor-wall-sconce
    • Product familyOutdoor Lighting
    • Product groupFacade Lighting
    • TypeObject (single object)
    • Date of publishing2025-11-21
    • Edition number1
    Classification
    • BIMobject CategoryLighting - Wall Mounted
