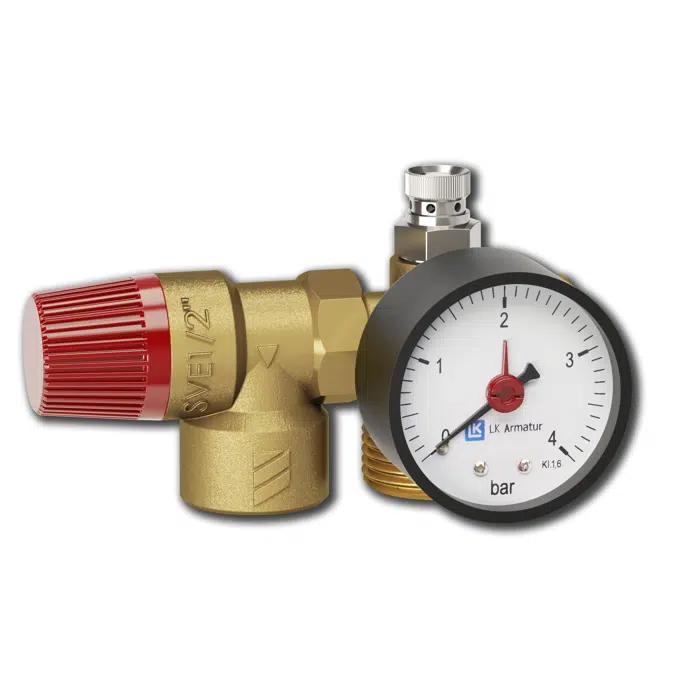

LK 925 SafetyGroup - Male thread

LK 924 / 925 SafteyGroup is a safety group for heating systems.

The safety group contains manifold, manometer, safety valve and an air vent.

924 SafetyGroup has an automatic air vent with a float and 925 SafetyGroup has an automatic air vent with fibre discs.
The manifold has two ½” connections for safety valve and for example an expansion vessel, one ⅜” connection for air vent.

The manometer shall be mounted in one of the three ¼” connections, plug the other ¼” connections with supplied plugs.
Depending on model the manifold has a female ¾” connection or a male 1” connection towards the heating system.

The manometer, air vent with a float and one ½” connection on the manifold are provided with a PTFE seal.

Safety valves in other pressure clas­ses can be supplied upon request.
