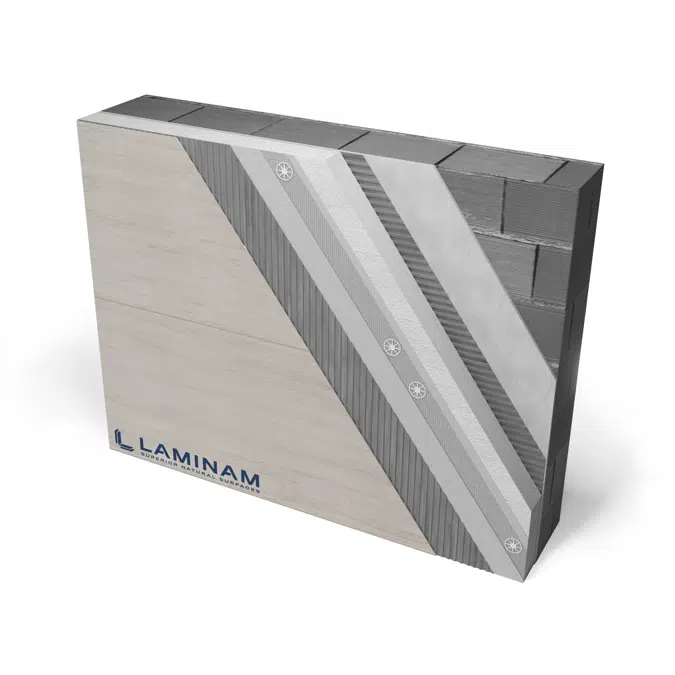

Outdoor Cladding / Installation on Thermal Insulation System

Laminam

Outdoor Cladding / Installation on Thermal Insulation System

Outdoor Cladding / Installation on Thermal Insulation System

To install in exteriors, it is possible to use the Laminam 3+ and Laminam 5/5+ slabs. To choose the right slab, we advise you to consider sun exposure, the geographic position and color of the slabs (dark colors and black tend to attract more heat which results in higher thermal expansion).
The choice of the size to use on the facade must be carefully evaluated to allow the operator to install it correctly (handling, back buttering, bonding and hammering) depending on the wall height and the building site equipment (scaffolding, cranes, lifts).

Specification

Laminam 3+ (nominal thickness 3,5mm)
Laminate porcelain obtained by wet grinding of clayish raw materials, granite and metamorphic, feldspar-containing rocks and ceramic pigments. Compacted by a special shaping in compatter and sintering at 1200°C, with hybrid firing. With single gauge square edge and with a structural reinforcement in inert material (fiberglass blanket bonded at the back).
Laminam 5 (nominal thickness 5,6mm)
Laminate porcelain obtained by wet grinding of clayish raw materials, granite and metamorphic, feldspar-containing rocks and ceramic pigments. Compacted by a special shaping in compatter and sintering at 1200°C, with hybrid firing. With single gauge square edge.
Laminam 5+ (nominal thickness 6mm)
Laminate porcelain obtained by wet grinding of clayish raw materials, granite and metamorphic, feldspar-containing rocks and ceramic pigments. Compacted by a special shaping in compatter and sintering at 1200°C, with hybrid firing. With single gauge square edge and with a structural reinforcement in inert material (fiberglass blanket bonded at the back).

Technical specification

Unique ref.outdoor-cladding-thermal-insulation-system
Product familyCeramic slab application
Product groupOutdoor Cladding
TypeAssembly (multiple objects)
Date of publishing2021-12-13
Edition number2
Height (mm)3000
Width (mm)1000
Depth (mm)3.5

Links

Product urlhttps://www.laminam.com/en/service-cladding-flooring/
Installation instructionshttps://www.laminam.com/en/service-cladding-flooring/
Instruction videohttps://www.youtube.com/watch?v=P2Qqg1UizY4&t=7s
Product certificationhttp://www.laminam.com/en/corporate-responsibility
Technical descriptionhttps://www.laminam.com/en/service-cladding-flooring/

Material mainCeramics
Material secondaryGlass fibre
Designed inItaly
Manufactured inItaly
Weight Net (Kg)24.6

Classification

BIMobject CategoryWalls - External Walls
IFC classificationWall
ETIM CodeEC011951
ETIM NameWall covering applicator
UNSPSC nameWall finishing materials
UNSPSC code301615
Uniclass 2015 CodePr_35_93_96_15
Uniclass 2015 DescriptionCeramic tile floor channels
CSI MasterFormat 2014 Code12 42 13
CSI MasterFormat 2014 TitleCeramics
CSI UniFormat II CodeC3010
CSI UniFormat II TitleWall Finishes
