Curtain Wall

- Laminam porcelain stoneware slab

Exterior cladding made with laminate porcelain obtained by wet grinding of clayish raw materials, granite and metamorphic, feldspar-containing rocks and ceramic pigments. Compacted by a special shaping in a compactor and sintering at 1200°C, with hybrid (gas/electric) firing. With single gauge square edge and with a structural reinforcement made of fibreglass applied using a controlled industrial process (fibreglass mat applied to the back). Nominal thickness …/….

Size: 1000x3000mm/ 1620x3240mm or sub-formats.

Laminam SpA will provide the designer and the Works Supervision with the graphics and the resistance design values of the slab related to the system adopted.

MECHANICAL CURTAIN WALL

- Supply and installation of the sub-structure

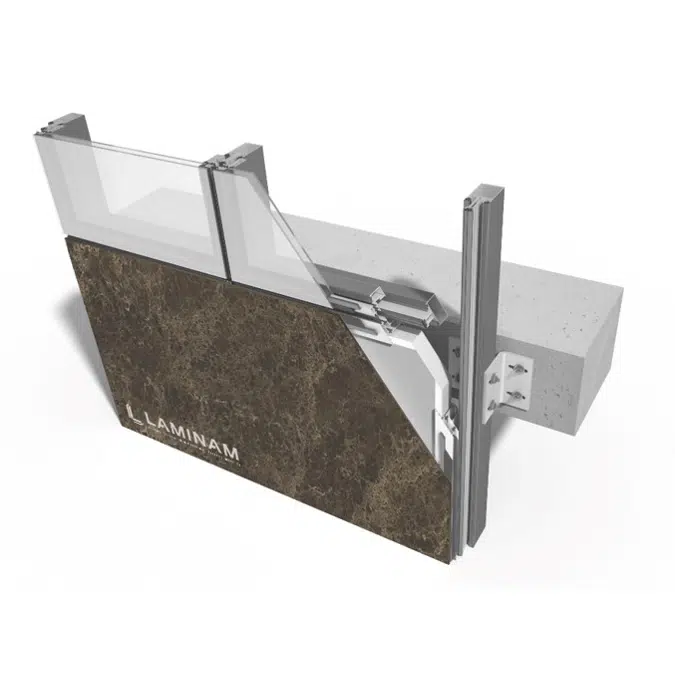

- Exterior cladding in panels obtained by assembling slabs onto frames. The two elements are bonded using structural silicone, polyurethane or MS polymer adhesive in addition to double-sided tape. The primer and the cleaner are specified by the manufacturer if necessary, as is the thickness of the silicone bead. A mechanical presser is also used, screwed onto the vertical profiles and cross-bars. Each frame consists of box-section or general-section aluminium profiles, assembled together by means of square brackets, angle irons or dedicated systems. Fixing to the bearing cross-linking mesh by means of specific mechanical attachments present on the panel or fixed to it. These attachments retain the profiles, allowing for the thermal expansions by means of fixed and sliding anchor points. Wall fixing anchors suitably sized and suitable for the type of support. The horizontal centre distance of the sub-structure must be determined in accordance with the installation site, the height of the building and the wind pressure. Minimum joint between the slabs 5 mm.

Items not included in the quote (costs at your charge):

- VAT;

- supply and laying of insulating material;

- scaffolding and/or platforms;

- construction site charges;

- disposal of packaging crates and/or waste materials;

- upper and lower closing in another material;

- everything not expressly provided in the quote.

STRUCTURAL CURTAIN WALL

- Supply and installation of the sub-structure

- Exterior cladding in panels obtained by assembling slabs onto frames. The two elements are bonded using structural silicone, polyurethane or MS polymer adhesive supplemented by double-sided tape. The primer and the cleaner are specified by the manufacturer if necessary as is the thickness of the silicone bead. Each frame consists of box-section or general-section aluminium profiles, assembled together by means of square brackets, angle irons or dedicated systems.

Fixing to the vertical profiles by means of specific mechanical attachments present on the panel. These attachments retain the profiles, allowing for the thermal expansions by means of fixed and sliding anchor points. Wall fixing anchors suitably sized and suitable for the type of support. The horizontal centre distance of the sub-structure must be determined in accordance with the installation site, the height of the building and the wind pressure. Minimum joint between the slabs 5 mm.

Items not included in the quote (costs at your charge):

- VAT;

- supply and laying of insulating material;

- scaffolding and/or platforms;

- construction site charges;

- disposal of packaging crates and/or waste materials;

- upper and lower closing in another material;

- everything not expressly provided in the quote.
