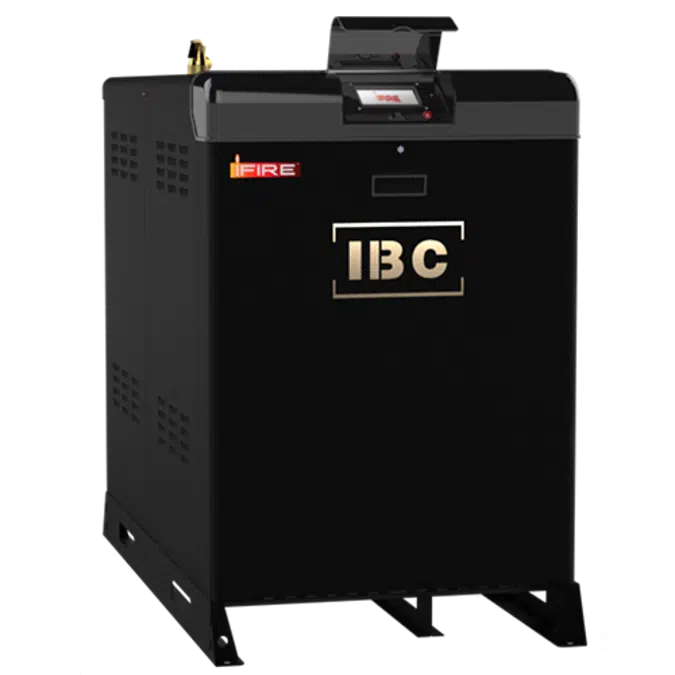

IFIRE Commercial Volume Water Heater

Commercial Volume Water Heater

With the launch of the IFIRE™, IBC® is uniquely positioned to offer unprecedented value in the commercial new construction or retrofit marketplace by providing a stainless-steel water tube option, for heat and volume water heating applications. Both Hydronic IFIRE™, options have 6 models from 300,000 to 1,000,000 Btu/hr and achieves a thermal efficiency of up to 96.5%.

Suitable for the following projects:

Schools
Healthcare Facilities
Restaurants
Hotels
Recreational Facilities
Office Buildings
Factories / Warehousing / Farms
Large Residences / Multi-Family Housing
Apartment Buildings
Commercial Garages

Specification

Intelligent controls
• VERSA IC® touchscreen enables modulating temperature control, safety limits and ignition programming into one user-friendly integrated control platform.
• Fault history with full diagnostics
• Three pump control (DHW, system and boiler)
• Modbus RTU BMS port
Instant visibility
• Built-in service light. Aids in quick visual status of the boiler and acts as a service light for boiler maintenance of the heater
Maximum performance
• Up to 96.5% thermal efficiency at full rate
• Cascade up to 8 heaters
• 7:1 turndown
• No external controls required.
• SQAQMD certified ultra-low NOx, <20PPM
Easy to install and service
• Safety certified for indoor/outdoor installation
• More venting options. Every IFIRE is direct vent capable and comes standard with an outdoor air intake air cover
• CAT IV or direct vent
• PVC, CPVC, polypropylene or stainless-steel compatible up to 100ft
• Zero side clearances to combustibles for easy installation
• Drain valve allows for easier servicing and reduced time on the job
• Forklift and pallet-jack accessible base
• Easy access to all components in the boiler
Durability
• Stainless steel construction
• 100% factory tested, ASME Certified
• Galvanized steel jacket with UV-resistant powder coat
• All IFIRE models are designed, engineered and assembled in America

Technical specification

Unique ref.ifire-commercial-volume-water-heater
Product familyWater Heater
Product groupIFIRE
TypeObject (single object)
Date of publishing2025-07-29
Edition number1

Links

Product urlhttps://www.ibcboiler.com/consumer/products/ifire/
Installation instructionshttps://www.ibcboiler.com/consumer/products/ifire/ifire-spec/
Product certificationhttps://www.ibcboiler.com/wp-content/uploads/IFIRE-Trifold-Brochure-08.16.2021.pdf
Technical descriptionhttps://www.ibcboiler.com/wp-content/uploads/IFIRE-Trifold-Brochure-08.16.2021.pdf

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryHVAC - Water Heaters
ETIM CodeEC010868
ETIM NameGas-fired water heater
Uniclass 2015 CodePr_60_60_96_34
Uniclass 2015 DescriptionGas-fired storage water heaters
CSI MasterFormat 2014 Code22 34 36.23
CSI MasterFormat 2014 TitleCommercial, High-Efficiency, Gas Domestic Water Heaters
OmniClass Number23-31 29 00
OmniClass TitleHot Water Heaters

Region availability

North America
Canada
United States
