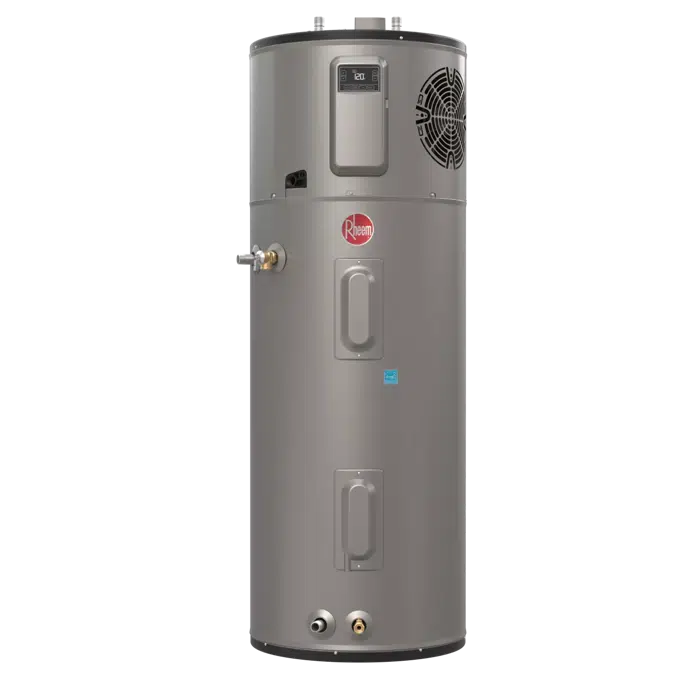

Commercial Hybrid Electric Water Heater

Rheem Manufacturing Company

Commercial Hybrid Electric Water Heater

Commercial Hybrid Electric Water Heater

Qualifies for Federal tax credit and local utility rebates
Up to 4x the efficiency of a standard electric water heater
Built-in WiFi & CTA-2045 Communicator
Available in 40, 50, 65 and 80 gallon capacities

Specification

Efficiency
Up to 4.07 UEF reduces operating cost
ENERGY STAR^® rated
Title 24 Compliant (JA13 Ready)

Performance

Delivers hot water faster than most standard electric water heaters
Ambient operating range: 37-145° F is widest in class, offering more days of HP operation annually; designed to meet Northern Climate Spec (Tier 4)

Easy Installation

Universal top and side water connections
Duct ready design
Quick access to electrical junction box
Easily replaces a standard electric water heater

Integration

Electronic control for easy temperature adjustment and mode management
Audible alarm for service alerts
Integrated Wi-Fi powered by EcoNet^® technology* and free mobile app gives users control over water heater, allowing for customizable temperature, vacation settings, energy savings and system monitoring at home or away
Demand Response Ready with built-in EcoPort/ CTA-2045 port
LeakGuard^™ and LeakSense^™ Ready — Easily add leak detection and prevention with leak sensor and shutoff valve upgrade kit

Operation Modes

Energy Saver
Heat Pump
High Demand
Electric
Vacation/Away: 2-28 days (or placed on hold indefinitely)

Plus…

Premium grade anode rod with resistor extends the life of the tank
Dip tube diffuser reduces sediment improving efficiency and tank life
3/4" NPT water inlet and outlet; 3/4" condensate drain connections
Incoloy stainless steel resistor elements
Dry-fire protection
Easy access, top mounted washable air filter
2" Non-CFC foam insulation
Enhanced flow brass drain valve
Temperature and pressure relief valve installed
Design certified to NSF/ANSI 372 (Lead Content)

Warranty

3-Year limited tank and parts warranty
See Commercial Warranty Certificate for complete information

Technical specification

Unique ref.commercial-hybrid-electric-water-heater
Product familyWater Heaters
Product groupCommercial Hybrid Electric
TypeObject (single object)
Date of publishing2025-12-11
Edition number1

Links

Product urlhttps://www.rheem.com/product/rheem-commercial-hybrid-electric-hpld80-2rh/
Technical descriptionhttps://www.rheem.com/product/rheem-commercial-hybrid-electric-hpld80-2rh/related-documents/271914

Classification

BIMobject CategoryHVAC - Water Heaters
IFC classificationBoiler
Uniclass 2015 CodePr_60_60_96
Uniclass 2015 DescriptionWater heaters
OmniClass Number23-31 29 00
OmniClass TitleHot Water Heaters

Region availability

North America
Canada
United States
