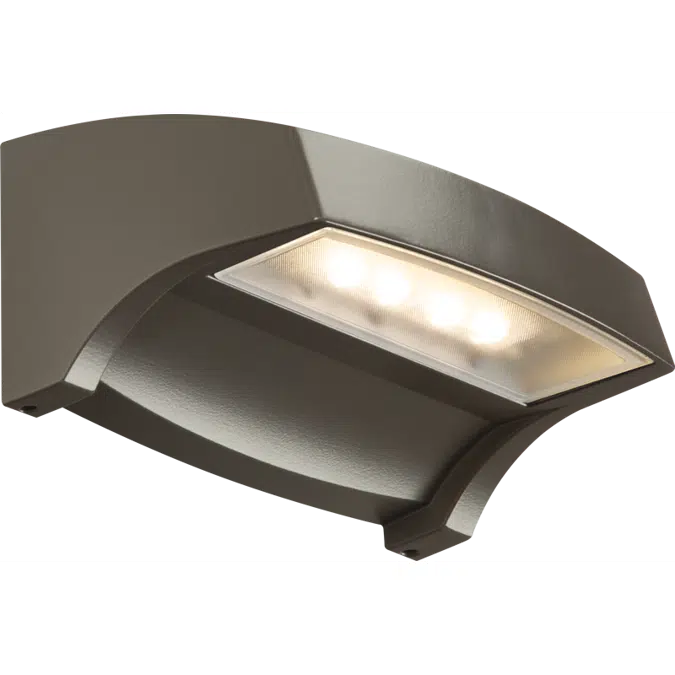

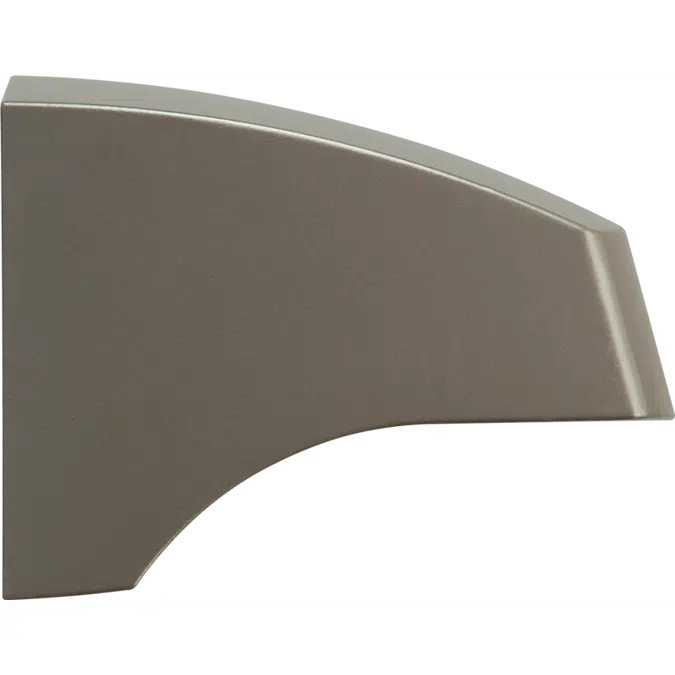

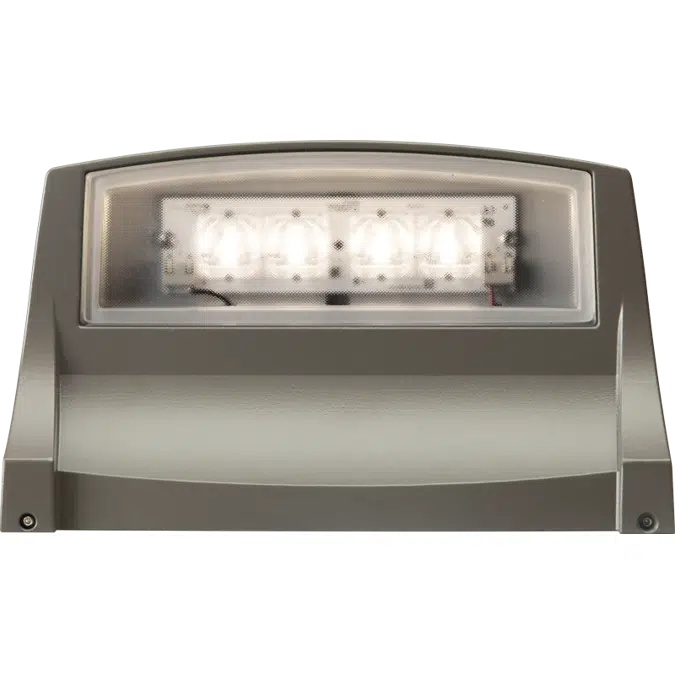

VWMH Voltaire Mini Architectural Wall Pack – Horizontal
VWMH Voltaire Mini Architectural Wall Pack – Horizontal
VWMH Voltaire Mini Architectural Wall Pack – Horizontal
    H.E. Williams, Inc.

    VWMH Voltaire Mini Architectural Wall Pack – Horizontal

    Features

    • Provides security and accent lighting for walkways, entries, perimeters, and facades
    • Intended for use in both uplight and downlight applications
    • Blends seamlessly with a variety of architectural styles
    • Purposefully modeled to allow runoff of dirt and water for an always-clean appearance
    • Optional battery, photocell, and tamper-resistant screws
    • Precision optics provide multiple distribution options
    • IDA Dark-Sky approved to minimize glare, reduce light trespass and help protect night sky
    • Seven standard finish options and a wide selection of custom colors complement the architectural elements of any outdoor environment
    • High-performance up to 125 lm/W
    • Build America, Buy America and Buy American Act compliant
    • Made Right Here® in the USA
    Specification

    • Housing

      • Die-cast aluminum enclosure.

      Thermal Management

      • Integral die- cast aluminum heatsink and LED source provide passive thermal management. Rated ambient operating temperature -30ºC to 50ºC (L10, L17), -30ºC to 45ºC (L20).

      Optical System

      • General output provides full cutoff.

      LED Source

      • ANSI 3000K, 4000K, or 5000K CCT; 70 or 80 CRI LEDs. L20: circuit board design. L10 & L17: Chip on board.

      LED Driver

      • 0-10V dimming.

      Electrical

      • 120-277 VAC input range; 50-60Hz; power factor >.90; THD <20% at full load. FCC Class A compliant. Quick- disconnect wiring provided. Calculated L70 >50,000 hours per IES TM-21.

      Finish

      • Super durable polyester powder coat bonded to phosphate-free, multi-stage pretreated metal, meets and exceeds AAMA 2604 specifications for outdoor durability.

      Mounting

      • Surface mounts directly over a 4″ maximum outlet box. Must be anchored to adequate structure that can safely support fixture weight (6.5 Lbs).

      Listings

      • cCSAus certified as luminaire suitable for wet locations.
      • IDA Dark-Sky approved (downlight applications only).
      • RoHS compliant.
      • IP65 rated.
      • Title 24 compliant with PC option.
      • Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
      • Request certification at hew.com/buy-american.

      Warranty

      5-year limited warranty, see details

    Technical specification
    • Unique ref.vwmh-voltaire-mini-architectural-wall-pack-horizontal
    • Product familyOutdoor Luminaires
    • Product groupWall Packs
    • TypeObject (single object)
    • Date of publishing2026-04-10
    • Edition number1
    Links
    Related
    • Material mainCast Aluminum
    • Designed inUnited States
    • Manufactured inUnited States
    Classification
    • BIMobject CategoryLighting - Wall Mounted
    • IFC classificationLight Fixture
    • Uniclass 2015 CodeEF_70_80
    • Uniclass 2015 DescriptionLighting
    • CSI MasterFormat 2014 Code26 51 13
    • CSI MasterFormat 2014 TitleInterior Lighting Fixtures, Lamps, And Ballasts
    • OmniClass Number23-35 47 11
    • OmniClass TitleLighting Fixtures
