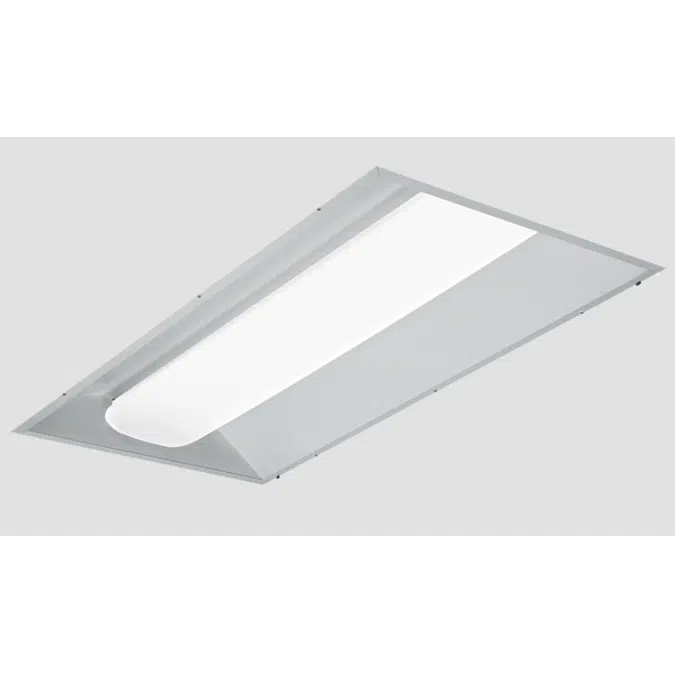

VDIL Vandal-Resistant Direct/Indirect Lensed
H.E. Williams, Inc.

VDIL Vandal-Resistant Direct/Indirect Lensed

Features

  • Transparent lensed door provides a barrier between the room and the diffuser to discourage vandals and minimize contaminants
  • Ideal for potentially rough environments such as recreational facilities, schools, supervised behavioral centers, or other vandal-prone areas
  • Ribbed acrylic diffuser shields LEDs from direct view
  • Double or triple gasketing options available
  • T-slot steel hinge allows reversible hinging and latching and ensures positive retention when door is opened
  • Optional anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
  • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
  • 2x2 and 2x4 sizes available
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
Specification

  • Housing

    22-gauge die-formed C.R.S.

    Door Frame & Lens

    Transparent acrylic lens with .236 ″ thick polycarbonate underlay, mounted in .050″ thick extruded aluminum door frame, flat with mitered corners secured with six tamper-resistant, tri-groove screws.

    Reflector

    Precision die-formed C.R.S. with highly reflective, non-glare matte white polyester powder coated finish.

    Finish

    92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

    Electrical

    High-quality mid-power LED boards. L70 at 50,000 hours. 50/60 Hz constant current driver.

    Mounting

    NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall flange type available.

    Listings

    		• cCSAus certified as luminaire suitable for dry or damp locations.
    • City of Chicago Environmental Air approved when specified with CP option.
    • Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
    Request certification at hew.com/buy-american.

    Warranty

    		5-year limited warranty, see details
Technical specification
  • Unique ref.vdil-vandal-resistant-direct-indirect-lensed
  • Product familyIndoor Luminaires
  • Product groupVandal Resistant
  • TypeObject (single object)
  • Date of publishing2026-02-27
  • Edition number1
Links
Related
  • Material mainMetal
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryLighting - Ceiling Mounted
  • IFC classificationLight Fixture
  • Uniclass 2015 CodeEF_70_80
  • Uniclass 2015 DescriptionLighting
  • CSI MasterFormat 2014 Code26 51 13
  • CSI MasterFormat 2014 TitleInterior Lighting Fixtures, Lamps, And Ballasts
  • OmniClass Number23-35 47 11
  • OmniClass TitleLighting Fixtures
