GLN Narrow Industrial
H.E. Williams, Inc.

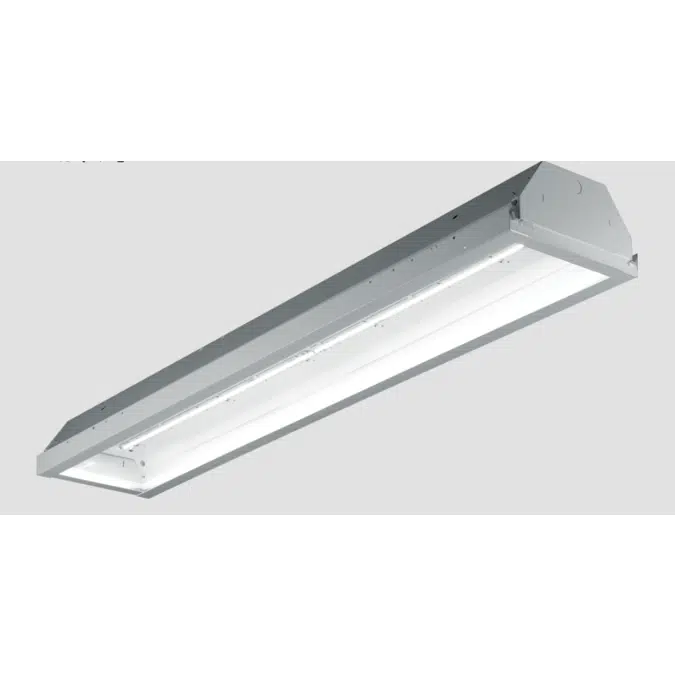

GLN Narrow Industrial

Features

  • Narrow fixture design is suitable for high-bay aisle applications
  • Heavy-gauge aluminum housing for maximum heat dissipation
  • Shallow fixture depth of less than 4" allows fixture placement near the ceiling for maximum space utilization
  • Easy access to driver without the removal of LED modules
  • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
  • Variety of mounting options
  • High-performance up to 162 lm/W
  • Optional wireguard provides added protection
  • Optional steel door frame with clear or diffuse acrylic
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
Specification

  • Housing

    .040″ die-formed aluminum housing.

    Finish

    92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

    Electrical

    High-quality mid-power LED boards. 50°C maximum ambient operating temperature with HA Option, lumen restrictions apply. 25°C maximum ambient operating temperature. 50/60 Hz constant current driver.

    Mounting

    Suspended.

    Listings

    		• cCSAus certified as luminaire suitable for dry or damp locations.
    • Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
    Request certification at hew.com/buy-american.

    Warranty

    		5-year limited warranty, see details
Technical specification
  • Unique ref.gln-narrow-industrial
  • Product familyIndoor Luminaires
  • Product groupIndustrial
  • TypeObject (single object)
  • Date of publishing2026-02-27
  • Edition number1
Links
Related
  • Material mainMetal
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryLighting - Ceiling Mounted
  • IFC classificationLight Fixture
  • Uniclass 2015 CodeEF_70_80
  • Uniclass 2015 DescriptionLighting
  • CSI MasterFormat 2014 Code26 51 13
  • CSI MasterFormat 2014 TitleInterior Lighting Fixtures, Lamps, And Ballasts
  • OmniClass Number23-35 47 11
  • OmniClass TitleLighting Fixtures
