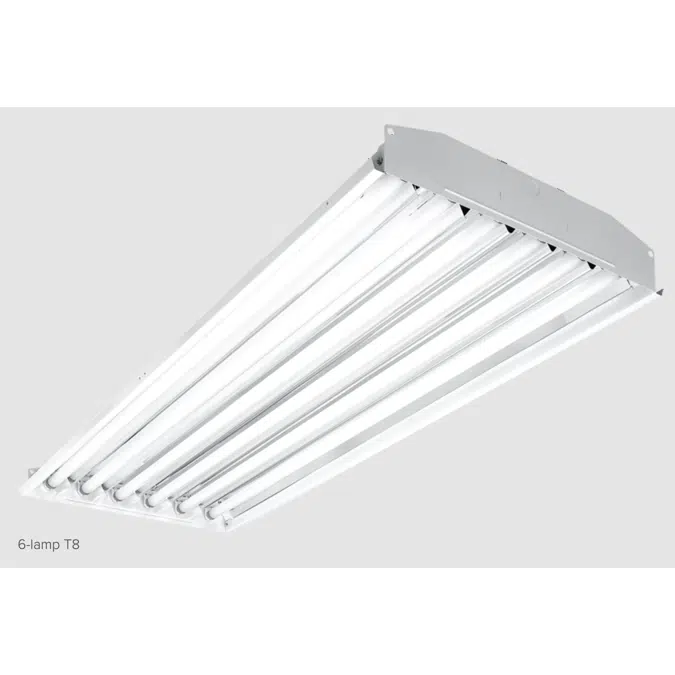

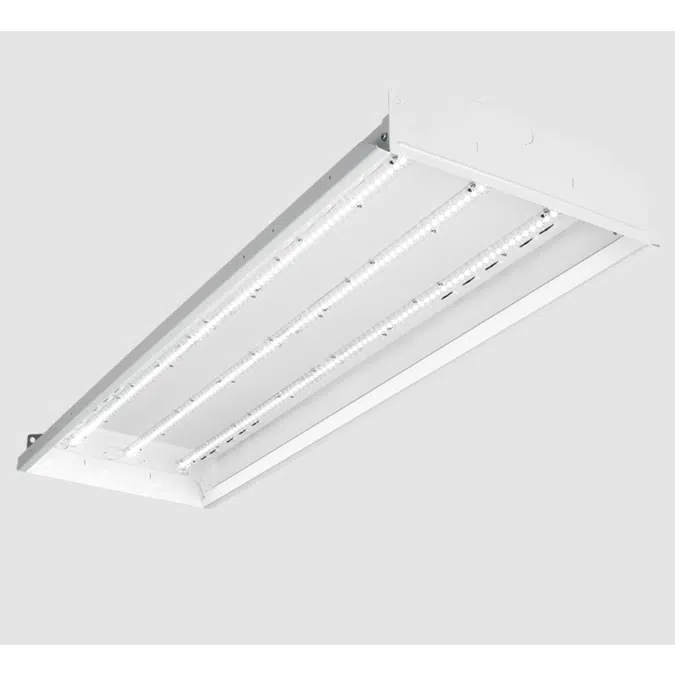

GL LOW-PROFILE INDUSTRIAL
GL LOW-PROFILE INDUSTRIAL
    H.E. Williams, Inc.

    GL LOW-PROFILE INDUSTRIAL

    FEATURES

    • Shallow fixture depth of less than 4" allows fixture placement near the ceiling for maximum space utilization and reduces damage incurred from material handling equipment
    • Narrow distribution and uplight options provide tailored performance
    • Quick-wire access plate for easy installation
    • Aluminum housing for maximum heat dissipation
    • Uplight modules available to illuminate dark ceilings
    • High-performance up to 162 lm/W
    • High and low ambient options for extreme temperatures
    • Piano hinge and steel door frame options
    • Optional wireguard provides added protection
    • Variety of mounting options
    • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
    • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
    • Buy American Act compliant
    • Wireless in-fixture control solutions available
    • Made Right Here® in the USA
    Specification

    • Housing

      Die-formed aluminum housing.

      Finish

      92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

      Electrical

      High-quality mid-power LED boards. L70 at 50,000 hours. 40°C maximum ambient operating temperature (reduced to 25°C when specifying alternate drivers).

      Mounting

      Suspended. Indoor applications only.

      Listings

      		• cCSAus certified as luminaire suitable for dry or damp locations.
      • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

      Warranty

      		5-year limited warranty, see details
    Technical specification
    • Unique ref.gl-lowprofile-industrial
    • Product familyIndoor Luminaires
    • Product groupHighbays
    • TypeObject (single object)
    • Date of publishing2026-02-27
    • Edition number1
    Links
    Related
    • Material mainMetal
    • Material secondaryGlass
    • Designed inUnited States
    • Manufactured inUnited States
    Classification
    • BIMobject CategoryLighting - Ceiling Mounted
    • IFC classificationLight Fixture
    • Uniclass 2015 CodeEF_70_80
    • Uniclass 2015 DescriptionLighting
    • CSI MasterFormat 2014 Code26 51 13
    • CSI MasterFormat 2014 TitleInterior Lighting Fixtures, Lamps, And Ballasts
    • OmniClass Number23-35 47 11
    • OmniClass TitleLighting Fixtures
