97 ENCLOSED & GASKETED WIDE DISTRIBUTION INDUSTRIAL
H.E. Williams, Inc.

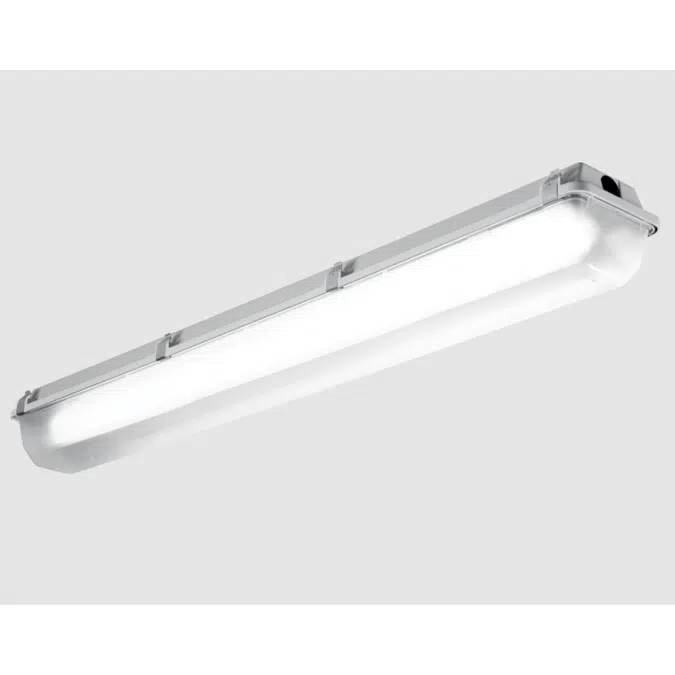

97 ENCLOSED & GASKETED WIDE DISTRIBUTION INDUSTRIAL

FEATURES

  • Wide distribution optics are ideal for parking garage applications
  • Fully gasketed fixture is built tough to resist contaminants
  • Toggle latches ensure a tight seal and provide easy access to electrical components
  • Closed-cell polyurethane gasket poured and formed in place to ensure tight seal–does not absorb water or support fungal growth
  • Standard stainless steel latches protect the fixture from corrosion in harsh environments
  • Tamper-resistant latches available
  • -40°C minimum operating temperature
  • NSF/ANSI 2, IP65, IP66 and IP67 certified, rated for NEMA 4X
  • High-performance up to 148 lm/W
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
Specification

  • Enclosure

    Outer housing consists of 5VA (f1) fiberglass, rated for flame and weather resistance.

    Internal Housing

    .050″ aluminum.

    Latching

    Stainless steel latches. Injection-molded polycarbonate latches available (not recommended for use in harsh environments, such as a car wash).

    Reflector

    95% reflective highly specular aluminum.

    Shielding

    Frosted or clear, impact-resistant acrylic.

    Electrical

    High-quality mid-power LED board. L70 >50,000 hours. -20ºC to 40ºC maximum ambient operating temperature. -40ºC minimum operating temperature with LA40 option.

    Mounting

    Surface or suspended. Stainless steel ceiling mount brackets included.

    Listings

    		• cETLus conforms to UL STD 1598 and UL STD 8750. Certified to CAN/CSA STD C22.2 No. 250.0. Suitable for wet locations when specified with watertight hub, STOW or SOOW cord, or mini-male receptacle option.
    • NSF/ANSI Standard 2–Splash Zone certified, IP65, IP66, and IP67 certified, and rated for NEMA 4X.
    • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

    Warranty

    		5-year limited warranty, see details
Technical specification
  • Unique ref.97-enclosedgasketedwidedistribution-industrial
  • Product familyIndoor Luminaires
  • Product groupIndustrial
  • TypeObject (single object)
  • Date of publishing2026-02-27
  • Edition number1
Links
Related
  • Material mainMetal
  • Material secondaryGlass
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryLighting - Ceiling Mounted
  • IFC classificationLight Fixture
  • Uniclass 2015 CodeEF_70_80
  • Uniclass 2015 DescriptionLighting
  • CSI MasterFormat 2014 Code26 51 13
  • CSI MasterFormat 2014 TitleInterior Lighting Fixtures, Lamps, And Ballasts
  • OmniClass Number23-35 47 11
  • OmniClass TitleLighting Fixtures
