Forster omnia single leaf Door insulated

Name: Forster omnia single leaf Door insulated
Rating: 4.2 (5 reviews)

4.2(5 reviews)

Our proven forster omnia system for single-leaf and double-leaf doors and exterior glazings impresses thanks to its outstanding durability, maximum levels of energy efficiency and easily integrated safety solutions.

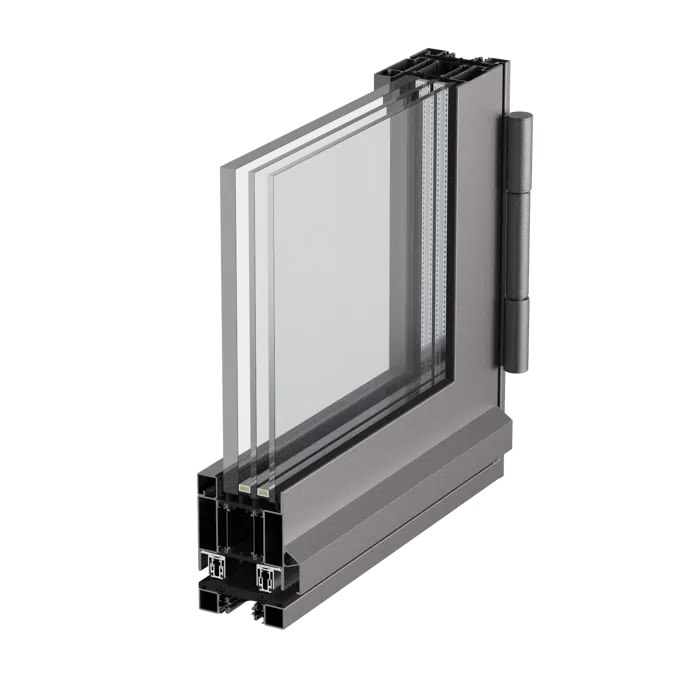

Thanks to the high structural depth of 85 millimetres, triple insulating glass can be installed in the robust steel or stainless steel profiles without any issues – a decisive aspect in ensuring the building shell offers high thermal insulation in line with the Minergie standard. Safety solutions such as fire protection and anti-burglary protection can be added when required. By replacing only a few components, fire protection class EI30 can also be reached. The open stainless steel insulator allows easy access to the profile interior and thus enables the corresponding cables to be installed in the event of changing use.

Your benefits

• Maximum thermal insulation

• 100% steel or stainless steel

• EI30 fire protection

• Burglar-resistant solution

Specification

Standard door
Material variants
Steel zinc magnesium
Bright steel**
Brushed stainless steel**
Face widths
Window sash with frame from 100 mm
Fixed glazing from 40 mm
Dimensions
Inside width single-leaf (W×H): max. 1360 × 2691 mm
Inside width double-leaf (W×H): max. 2670 × 2691 mm
Fittings
Attached and concealed flush fittings
Max. leaf weight 420 kg
System features
Design variants:
Single/double leaf doors, with optional sidelight and fanlight
Fixed glazing
Insulated door threshold, simple lock installation via insertion strips
Structural depth 85 mm
Max. filling element thickness 59 mm
Glazing beads in aluminium and steel
Wet and dry glazing
Performance characteristics*
CE marking according to EN 14351-1
UD value up to 0.74 W/(m2K)
Durability of self-closing properties: Class 8 according to EN 12400
(tested up to 1 million cycles according to EN 1191 with automatic
door operator)
Doors for escape and emergency routes (partial and full panic)
according to EN 179 and EN 1125
Burglary resistance: RC2 according to EN 1627
Resistance to wind loads: Class C4/B4 according to EN 12210
Watertightness: Class 3A according to EN 12208
Air permeability: Class 4 according to EN 12207
Impact resistance: Class 4 according to EN 13049
Operating forces: Class 5 according to EN 12217
Threshold-free and barrier-free according to DIN 18040
Sound insulation up to Rw = 45 dB according to EN ISO 140-3
* Take note of the country-specific approvals and requirements
** On request

Technical specification

Unique ref.door_omnia_1_leaf
Product familyDoor
Product groupForster omnia
TypeObject (single object)
Date of publishing2019-01-14
Edition number1

Links

Product urlhttps://www.forster-profile.ch/int-en/home.html
Installation instructionshttps://www.forster-profile.ch/fileadmin/media/forster-profile/documents/anleitungen/bro_montage_wartungsanleitung_en.pdf
Instruction videohttps://www.youtube.com/watch?v=fwoxSzw3ozQ&feature=youtu.be
Product certificationhttps://www.forster-profile.ch/int-en/profile-systems-in-steel-and-stainless-steel-for-thermal-break-and-safety-applications.html
Technical descriptionhttps://www.forster-profile.ch/int-en/downloads/specification-texts.html

Material mainSteel
Material secondaryGlass
Designed inSwitzerland
Manufactured inSwitzerland

Classification

BIMobject CategoryDoors - Swing
IFC classificationDoor
UNSPSC nameDoors
UNSPSC code301715
Uniclass 2015 CodeSs_25_38_20
Uniclass 2015 DescriptionDoor, window and gate hardware systems
