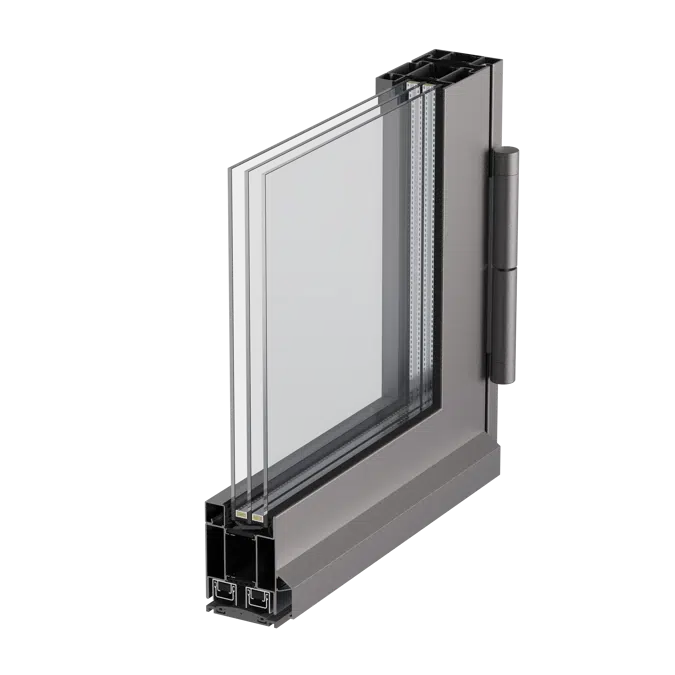

Forster unico HI single leaf door in fixed glazing insulated

Technical specifications

Material variants Bright steel, steel zinc magnesium, brushed stainless steel

Face widths Door leaf with frame from 80 mm

Window and overlapping casement with frame from 92 mm

Fixed glazing from 30 mm

Fittings Attached and concealed flush fittings (max. opening angle on window 90°), historic fittings

Max. leaf weight 410 kg (door), 150 kg (window)

System features Design variants:

Side-hung door with single/double leaf, with optional sidelight and fanlight

Flush sheet metal door

Turn/tilt and turn/tilt windows, single or double leaf

Fixed glazing

Structural depth from 70 mm

Design glazing beads in aluminium and steel

Wet and dry glazing

Performance characteristics* CE marking according to EN 16034 and EN 14351-1

Thermal insulation: Door UD up to 0.9 W/(m2K)

Window UW up to 1.0 W/(m2K)

Fixed glazing UW up to 0.63 W/(m2K)

Fire protection EI30, EW30, E30 according to EN 1634-1

Smoke protection Sa or S200 according to EN 1634-3

Durability of self-closing properties

Door: Class 8 according to EN 12400 (tested up to 1 million cycles according to EN 1191 with automatic door opener)

Window: Class 2 according to EN 12400 (10,000 cycles according to EN 1191)

Resistance to wind loads: Class C3 / B3 (door) and C5 / B5 (window) according to EN 12210

Burglary resistance RC2 and RC3 according to EN 1627

Watertightness Class 3A (door) and E 1050 (window) according to EN 12208

Air permeability Class 4 according to EN 12207

Impact resistance Class 1 (door) and 3 (window) according to EN 13049

Barrier-free according to DIN 18040

Sound insulation up to Rw = 46 dB (door) and Rw = 47 dB (window) according to EN ISO 140-3
