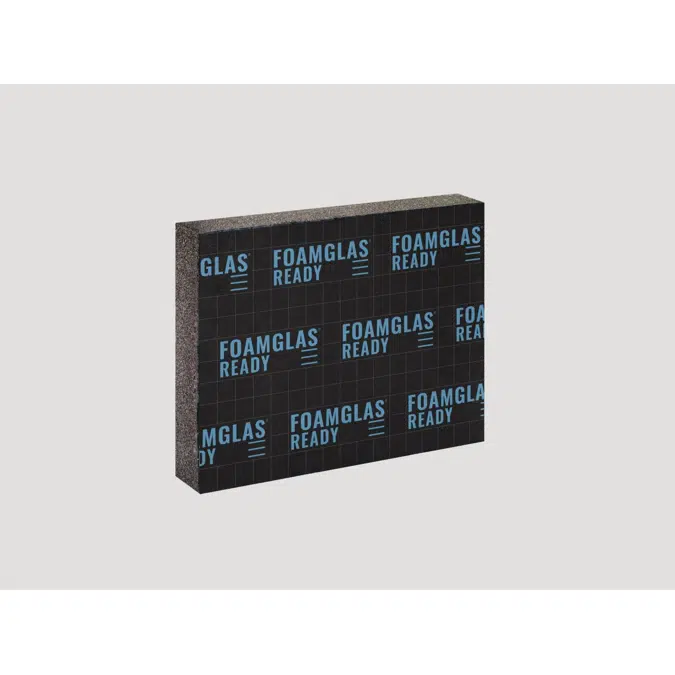

FOAMGLAS® READY T3+-130x450x600

Available in slab dimensions of 600x450mm, or board dimensions of 1200x600mm. READY insulation products have a factory-applied top layer suitable to accept site-applied torch on membranes. When installed with hot or cold adhesives, and adhesive-filled joints, READY products offer an insulation solution for the life of the building.

FOAMGLAS® T3+ provides all of the benefits of FOAMGLAS® cellular glass insulation - long-lasting thermal performance, excellent compressive strength and non-combustibility. T3+ is extremely popular for applications upon walls, soffits and roofs.

With a thermal conductivity (lambda value) of 0.036 W/(m·K), FOAMGLAS® T3+ is available in thicknesses from 50 mm to 200 mm.

Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.

Specification

- Applications = Flat roofs: bonding on concrete, metal deck and special roofs | Below grade: walls (perimeter) and floors | Interior insulation: floors
- Bending Strength = ≥ 400 kPa
- Capillarity = Zero
- Compressive Creep = (1.5/1/50) 225
- Compressive Strength = ≥ 500 kPa
- Forms of Delivery = Packaged in units of 10 to 96 boards per thickness and width
- Hygroscopicity = Zero
- Length = 600mm, ±2mm tolerance
- Melting Point = >1000°C
- Point Load = ≤ 1.5 mm
- Reaction to Fire = Euroclass E (Core is Euroclass A1)
- Service Temperature = -265°C to +430°C
- Specific Heat = 1000 J/(kg·K)
- Tensile Strength = ≥ 150 kPa
- Thermal Conductivity (λ_D) = ≤ 0.036 W/(m·K)
- Thermal Expansion Coefficient = 9 x 10^-6/K
- Thermal Resistance (R_D) = 3.60 m²K/W
- Thickness = 130mm, ±2mm tolerance
- Water Vapour Resistance = μ = ∞
- Width = 450mm, ±2mm tolerance
