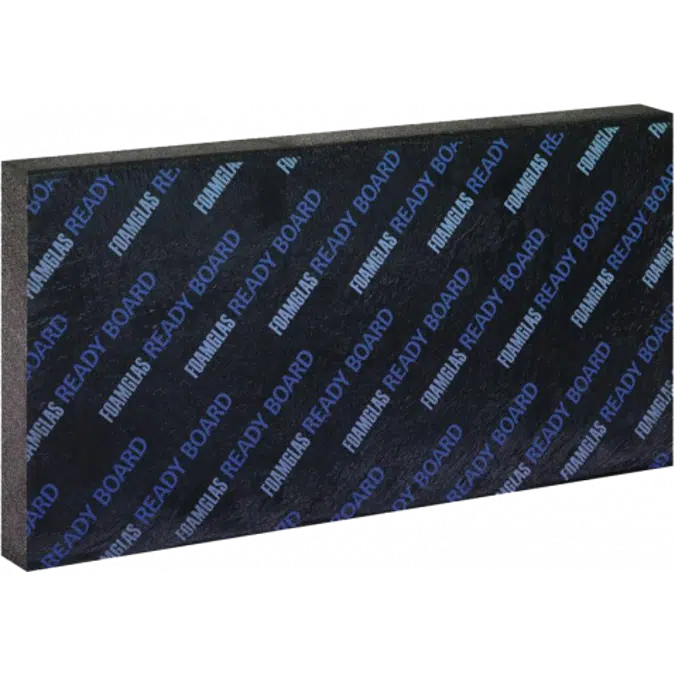

FOAMGLAS® READY BOARD T4+-80x600x1200

Available in slab dimensions of 600x450mm, or board dimensions of 1200x600mm. READY insulation products have a factory-applied top layer suitable to accept site-applied torch on membranes. When installed with hot or cold adhesives, and adhesive-filled joints, READY products offer an insulation solution for the life of the building.

Suitable for a wide range of building envelope applications - floors, flat roofs, and roofs with a metal standing seam covering - FOAMGLAS® T4+ offers a thermal conductivity of 0.041 W/(m·K) and a UDL compressive strength of 600 kPa.

Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.

Specification

- Applications = Flat roofs | Pitched roofs | Metal Roofs | External walls below ground
- Bending Strength = ≥ 450 kPa
- Capillarity = Zero
- Compressive Creep = (1.5/1/50) 225
- Compressive Strength = ≥ 600 kPa
- Flexural modulus of elasticity =700 MN/m²
- Forms of Delivery = Packaged in units of 2 to 12 boards per thickness.
- Hygroscopicity = Zero
- Length = 1200mm, ±5mm tolerance
- Melting Point = >1000°C
- Point Load = ≤ 1.5 mm
- Reaction to Fire = Euroclass E (Core is Euroclass A1)
- Service Temperature = -265°C to +430°C
- Specific Heat = 1000 J/(kg·K)
- Tensile Strength = ≥ 150 kPa
- Thermal Conductivity (λ_D) = ≤ 0.041 W/(m·K)
- Thermal Diffusivity at 0°C =4.2 x 10^-7m²/sec
- Thermal Expansion Coefficient = 9 x 10^-6/K
- Thermal Resistance (R_D) = 1.95 m²K/W
- Thickness = 80mm, ±2mm tolerance
- Water Vapour Resistance = μ = ∞
- Width = 600mm, ±2mm tolerance
