FOAMGLAS® F-120x450x600

Offering the highest compressive strength of any FOAMGLAS® product, FOAMGLAS® F is used above or beneath floor slabs, and upon roofs where the compressive loads are high. A typical example would be regular heavy traffic such as trucks and emergency vehicles. It has a thermal conductivity (lambda value) of 0.050 WW/(m·K) and a max compressive strength of 1600 kPa. Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.

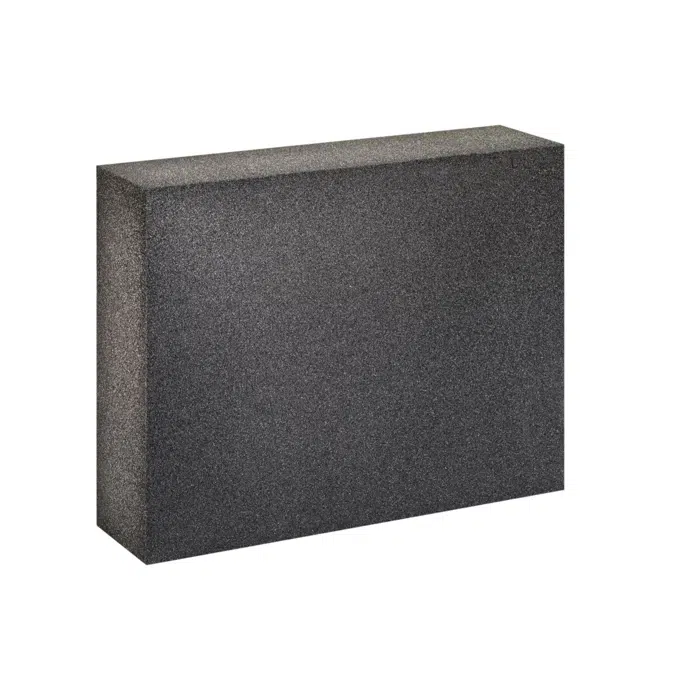

Our cellular glass insulation slabs measure 600 x 450mm. Slabs are used throughout the entire internal and external building envelope. They meet Euroclass A1 test standards, and are easy to handle, cut and trim.

Specification

- Applications = Flat and tapered roofs | Internal floors, which require insulation with the highest compressive strength | Foundation slabs
- Bending Strength = ≥ 550 kPa
- Capillarity = Zero
- Compressive Strength = ≥ 1600 kPa
- Flexural Modulus = 1500 MN/m²
- Forms of Delivery = Packaged in units of 3 to 12 boards per thickness.
- Hygroscopicity = Zero
- Length = 600 mm ± 2 mm
- Melting Point = >1000 °C
- Point Load = ≤ 1.0 mm
- Reaction to Fire = Euroclass A1
- Service Temperature = -265°C to +430°C
- Specific Heat = 1000 J/(kg·K)
- Tensile Strength = ≥ 200 kPa
- Thermal Conductivity (λ_D) = ≤ 0.050 W/(m·K)
- Thermal Diffusivity = 3.5 x 10^-7 m²/sec
- Thermal Expansion Coefficient = 9 x 10^-6K^-1
- Thermal Resistance (R_D) = 2.40 m²K/W
- Thickness = 120 mm ± 2 mm
- Water Vapour Resistance = μ = ∞
- Width = 450 mm ± 2 mm
