HEYWOOD L LED White/light wood fan with DC motor

HEYWOOD L LED White/light wood fan with DC motor

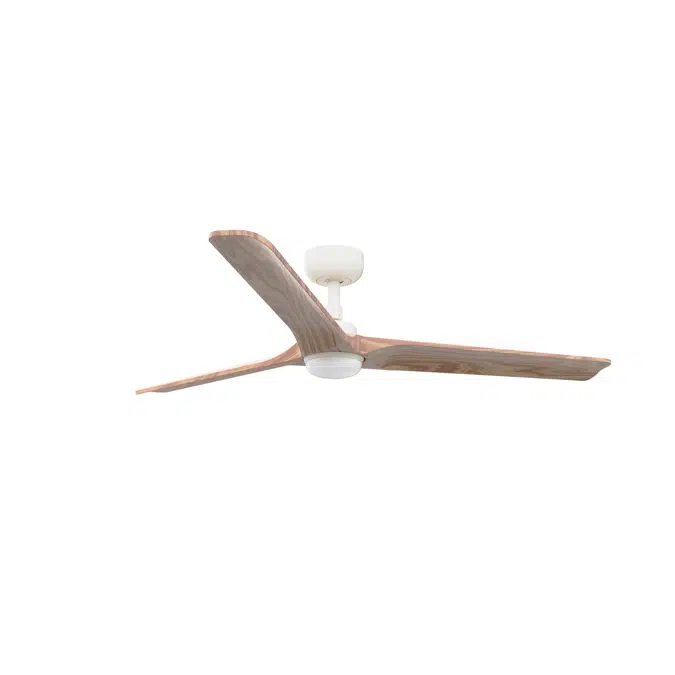

HEYWOOD L LED is a ceiling fan that incorporates a light kit, designed by Faro Lab, with an ultra-compact DC motor, ideal for rooms from 17.6 m² to 28 m². The light wood blades of this ceiling fan wrap around the motor, achieving a lightweight effect. It is activated using a remote control, included. This white fan has 6 adjustable speeds, a reverse function and can be installed on inclined ceilings.
Specification
  • Reference: 33810-1TW

    Catalogue: Ventilacion

    EAN: 8421776355606

    Tariff Item: 8414510090

    Clase ETIM - ETIM 9.0: EC011012

    MERCADO GLOBAL: Si

    MERCADO 110: No

    ERP applies?: Yes

    ERP registration number: 1930296

    Fixing: Ceiling

    Serie: 3809

    Body material: Steel

    Blade material: Wood

    Body finish: Matt White

    Light Source Energy Class: F

    Light Source Code: L00331

    IP: 20

    Type: I

    Power max (W): 10

    Hertz: 50/60Hz

    Light source: SMD LED

    Light source included: Yes

    Lumens max: 944lm

    Voltage: 220V-240V

    Adjustable K range: 2700 - 4000 - 6000K

    TEMPERATURA DE COLOR REGULABLE (K): 1

    CRI: 85

    Sea Side Suitable: 0

    Total height: 270

    Total diameter: 1320

    Canopy diameter: 130

    Ceiling/light kit diameter: 145

    Related accessory: 33974

    Engine type: DC

    No of blades: 3

    PALAS REVERSIBLES: 0

    Number of speeds: 6

    W: 4-5-7-13-22-32

    RPM: 58-75-94-124-152-173

    Additional rods included in the box: No

Technical specification
  • Unique ref.33810-1TW_-_HEYWOOD-L-LED-White-light-wood-fan-with-DC-motor
  • Product familyFan
  • Product groupWith Light
  • TypeObject (single object)
  • Date of publishing2024-10-07
  • Edition number1
Related
  • Material mainSteel
Classification
  • BIMobject CategoryHVAC - Mechanical Ventilation
