Faro Barcelona

BARTH L LED Black fan

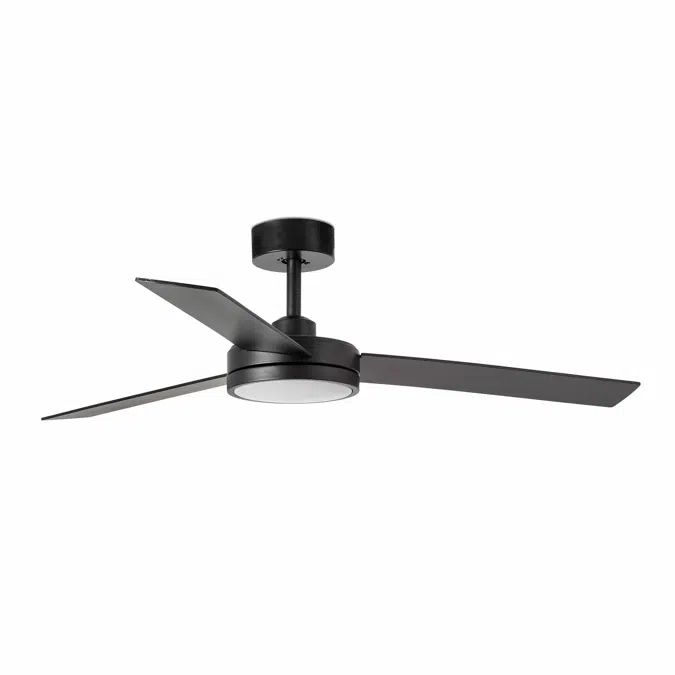

Name: BARTH L LED Black fan
Rating: 4.5 (6 reviews)

4.5(6 reviews)

BARTH is a black ceiling fan with SMD LED 24W 2700K - 4350K - 6000K light source. Fan with modern and rounded lines ideal for ventilation of rooms from 17.6 m² to 28 m². It is activated using a remote control, included. This DC motor fan has 5 adjustable speeds. This ceiling fan has a reverse summer-winter function, and can be used in the coldest winter months, optimizing the efficiency of your heating. Air flow: 180.57 m3 min / 6377 CFM.

Specification

Reference: 34261
Catalogue: Ventilacion
EAN: 8421776244290
Tariff Item: 8414510090
Clase ETIM - ETIM 9.0: EC011012
MERCADO GLOBAL: Si
MERCADO 110: No
ERP applies?: Yes
ERP registration number: 1076112
Fixing: Ceiling
Series: 3426
Diffusor material: PP
Blade material: Plywood
Diffuser finish: Opal White
Light Source Energy Class: G
Light Source Code: L00086
IP: 20
Power max.(W): 24
Hertz: 50/60Hz
Light source: SMD LED
Light source included: Yes
Lumens max: 2400lm
Voltage: 220V-240V
Colour temperature: 6000K
Adjustable K range: 2700 - 4350 - 6000K
Adjustable Color Temperature (K): 1
CRI: >80
MAC ADAM STEP: >5 SDCM
Sea Sied Suitable: 0

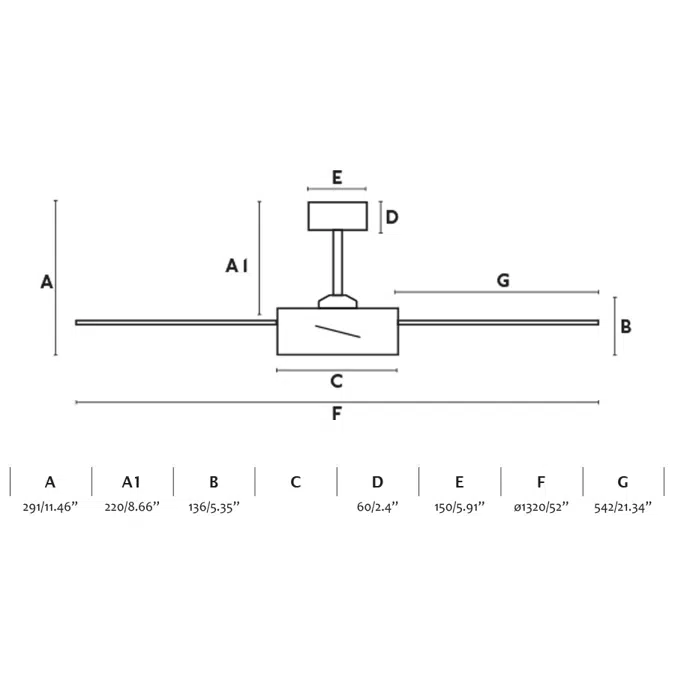

Total height: 291
Total diameter: 1320
Canopy diameter: 150
Ceiling/light kit diameter: 240
Engine type: DC
No of blades: 3
Reversible Blades: 0
Number of speeds: 5
W: 4-6-8-13-20-30
RPM: 94-125-147-180-208-236
Additional rods included in the box: No
Individual box height (MM): 210
Individual box width (MM): 305
Length individual box (MM): 675
Volume Box Ind. Trawl: 0.044263
Gross weight of box Ind. Trawl: 6.38
PCS: 0
Net weight consolidated item: 5.42

Technical specification

Unique ref.34261_-_barth-black-ceiling-fan
Product familyFan
Product groupWith Light
TypeObject (single object)
Date of publishing2022-07-30
Edition number1

Links

Product urlhttps://faro.es/en/collection/barth-black-ceiling-fan/
Installation instructionshttps://faro.es/content/comun/instructions.php?ref=34261
Technical descriptionhttps://faro.es/content/comun/ficha.php?ref=34261

Material mainSteel
Designed inSpain
Manufactured inSpain

Classification

BIMobject CategoryHVAC - Mechanical Ventilation
IFC classificationFan
ETIM CodeEC000532
ETIM NameFan
UNSPSC nameFans
UNSPSC code40101604
Uniclass 2015 CodePr_65_67_29_67
Uniclass 2015 DescriptionPropeller fans
CSI MasterFormat 2014 Code11 30 34
CSI MasterFormat 2014 TitleResidential Ceiling Fans
OmniClass Number23-33 31 19 11 15
OmniClass TitleCeiling Fans
