550 Series Fire Rated Counter Shutters

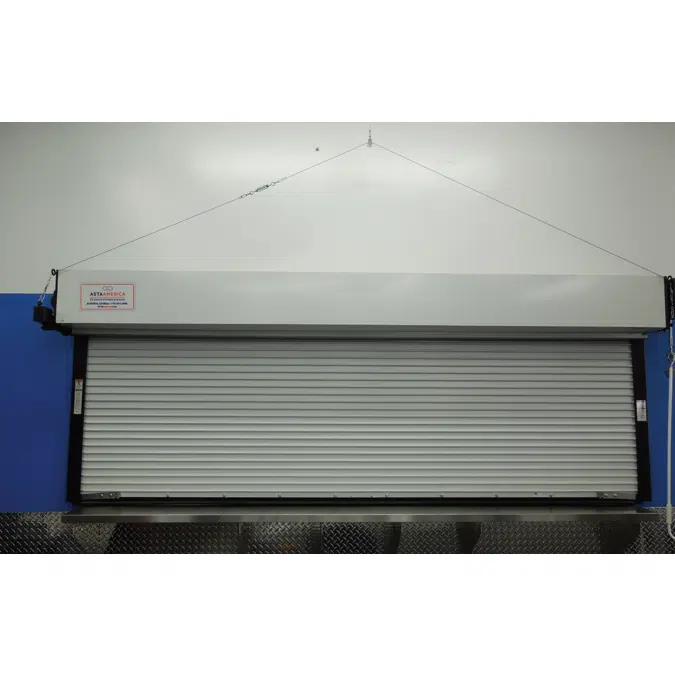

ASTA AMERICA 550 SERIES ROLLING FIRE SHUTTER is manufactured with U.L. fire ratings and is a cost effective way of protecting property in case of a fire, while increasing building safety for occupants. The 550 Series is manufactured to the highest standards featuring, space saving designs and user-friendly operation. The fail-safe operating system is activated by fusible links, smoke detectors or can be wired to a central alarm system by one of our release devices. The 550 Series Rolling Fire Shutter is the perfect choice for pharmacies, cafeterias, concession areas, ticket counters, nurse/hospital desks, and many more applications where a fire rated wall exists.

Specification

FOUR FINISH OPTIONS:
- White Topcoat
- Gray Topcoat
- Tan Topcoat
- Stainless Steel / 22-gauge, # 4 finish
Powder Coat Finish is available in a variety of color options
40-year film integrity and a 35-year no-chalk/no-fade limited paint warranty.
STANDARD FEATURES:
- 22-gauge flat slats with 1-1/2” high profile
- Steel endlocks
- Enclosed hood
- U.L. approved
- Fusible links
- Bottom weather seal
- 2-Year limited warranty
OPTIONS
- Fire rating: Available in 3/4 hour and 1-1/2 hour.
- Sizes: Up to 12’- 0” wide x 8’- 0” high.
- Operation: Push-up and hand crank available on all sizes.
- Locking: Slide lock is standard.
- Weather Seal: U.L. rated jamb brush seal and flame baffle.
