Trapeze

Mineral tile Trapeze

Name: OWAcoustic mineral tile Tapeze

Collection: OWAconsult collection

Manufacturer: OWA

Application: Ceiling system S 15b

Technical data:

Mineral tile according to DIN EN 13964 and DIN 18177

Proof of usability in accordance with EU Construction Products Regulation:

CE marking and Declaration of Performance (DoP)

Air permeability class: PM 1

Formaldehyde class: FH 1

VOC emissions: TVOC 1

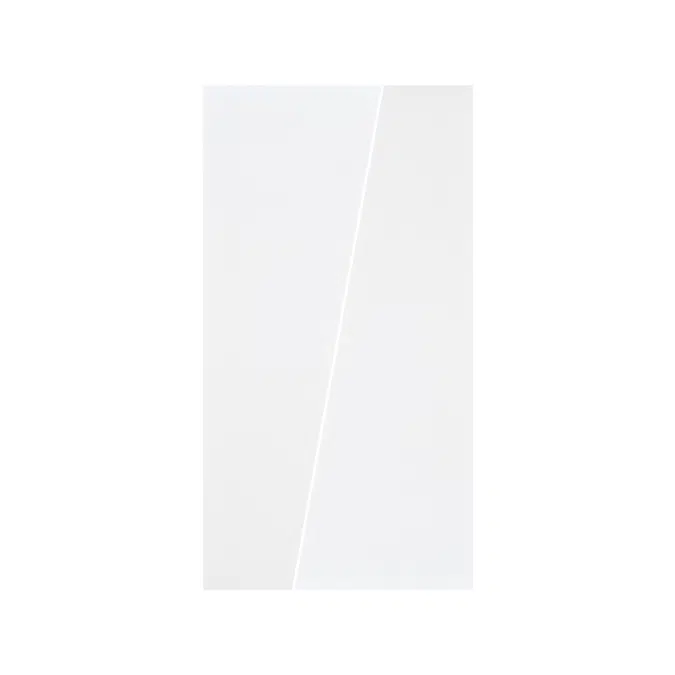

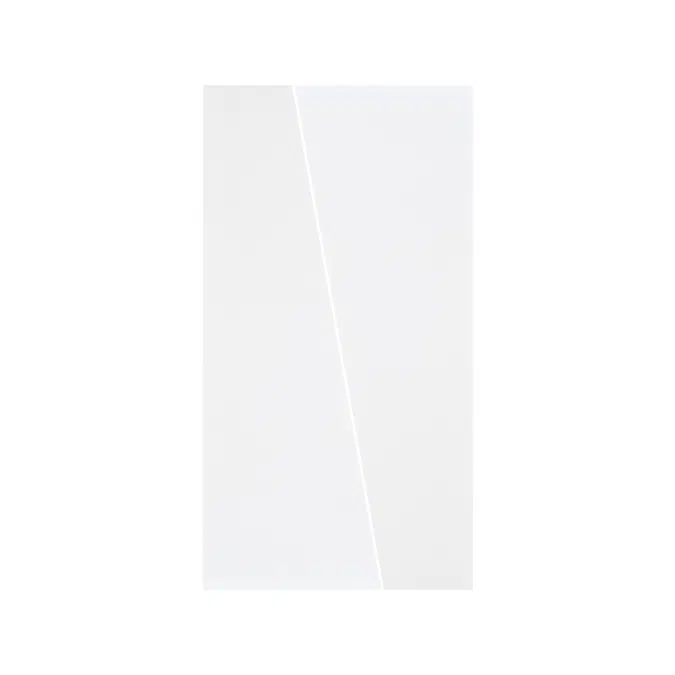

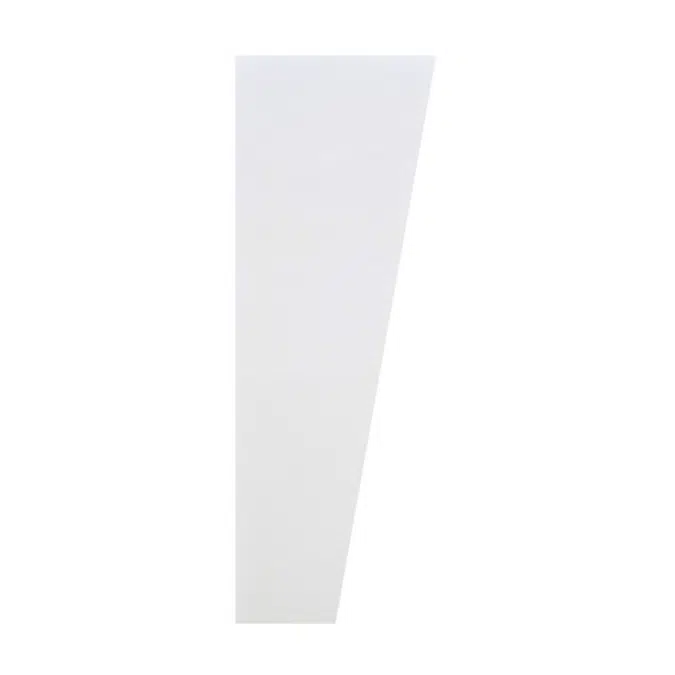

Design: Trapeze 4, 2 and 1, fleece-covered

Colour: white

Light reflection: approx. 87, white (ISO 7724-2, ISO 7724-3)

Reaction to fire: A2-s1,d0 according to DIN EN 13501-1

Edge: 15b, revealed edge 15 mm grid

Thickness: 20 mm

Sound absorption:

Alpha w = 0,85

NRC = 0,85

Sound reduction:

Dn,f,w = 30 dB

CAC = 30 dB

Humidity resistance: up to 95% RH
