Corpus Wall Absorber

Corpus Wall Absorber

OWA - Odenwald Faserplattenwerk GmbH

Corpus Wall Absorber

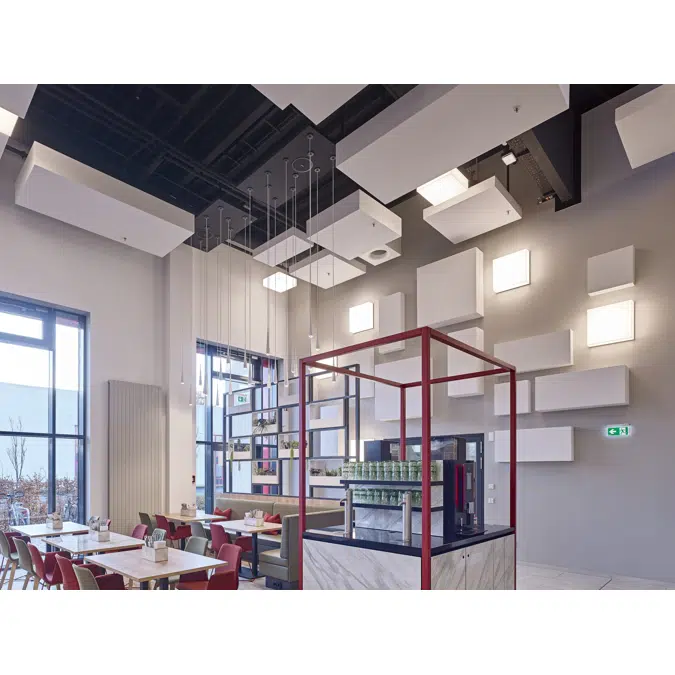

Corpus, which has won several design awards, offers excellent acoustic performance in an expressive design. It is based on a modular system consisting of ten different rectangular and square acoustic cuboids with ultra-fine, white, fleece covered surfaces. The wall absorbers are quick and easy to install and offer limitless configuration options. Unique formations can be created to optimize their surroundings acoustically and generate design highlights in the room.

Specification

Glass wool Corpus Wall Absorber S1, S2, M1, M2, L1 and L2
Name: OWAconsult glass wool Corpus Wall Absorber
Collection: OWAconsult collection
Manufacturer: OWA
Application: Wall Absorber
Technical data:

Visible side: white, fleece-laminated
Design: fleece-covered
Colour: white, finished
Light reflection: approx. 78 (ISO 7724-2, ISO 7724-3)
Reaction to fire: A2-s1,d0 according to DIN EN 13501-1
Edge: sharp-edged
Height:
Corpus S1, M1 and L1 150 mm
Corpus S2, M2 and L2 300 mm

Sound absorption:
Alpha w = 1,00
NRC = 1,00

Humidity resistance: up to 90% RH

Technical specification

Unique ref.Corpus_Wall_Absorber
Product familyAbsorber
Product groupAbsorber
TypeObject (single object)
Date of publishing2025-10-02
Edition number1

Links

Product urlhttps://www.owa.de/en/produkt/corpus-wall-absorber-wandcorpus-en/
Installation instructionshttps://www.owa.de/wp-content/uploads/2024/03/DS_1587_e.pdf
Tendering informationhttps://ausschreiben.de/catalog/owa

Related

Material mainGlass wool
Material secondaryMetal
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryBuilding Materials - Acoustic Panels & Accessories
IFC classificationCeiling
Uniclass 2015 CodeSs_25_25_05
Uniclass 2015 DescriptionAcoustic panel systems
CSI MasterFormat 2014 Code09 84 33
CSI MasterFormat 2014 TitleSound-Absorbing Wall Units
OmniClass Number23-15 13 19 35
OmniClass TitleAcoustical Wall Treatment
