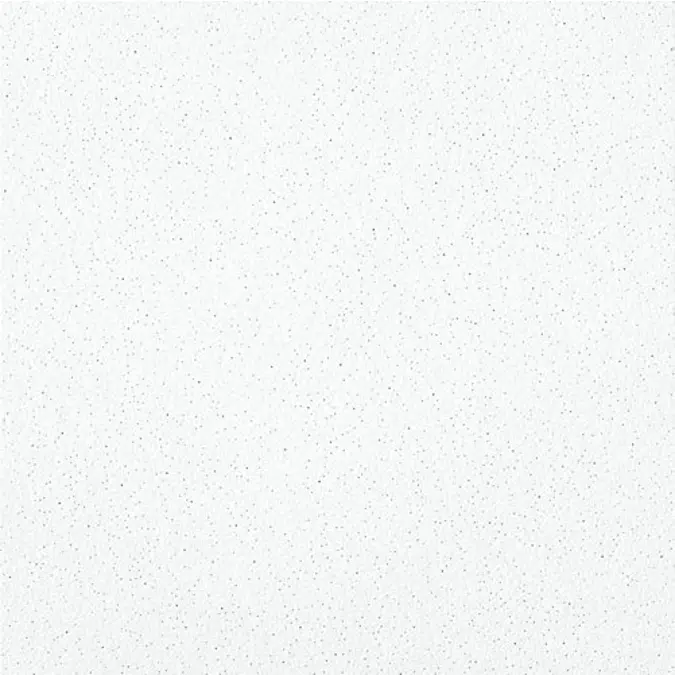

New Sandila NRC

Mineral tile New Sandila NRC

Name: OWAcoustic mineral tile New Sandila NRC

Collection: OWAlifetime collection

Manufacturer: OWA

Application: Ceiling system S 3, S 3 cliq, S 3a, S 3a cliq, S 15 cliq

Technical data:

Mineral tile according to DIN EN 13964 and DIN 18177

Proof of usability in accordance with EU Construction Products Regulation:

CE marking and Declaration of Performance (DoP)

Air permeability class: PM 1

Formaldehyde class: FH 1

VOC emissions: TVOC 1

Design: New Sandila/N

Colour: white, finished

Light reflection: approx. 87 (ISO 7724-2, ISO 7724-3)

Reaction to fire: A2-s1,d0 according to DIN EN 13501-1

Edge: 3, Square edge | 6, revealed edge 24 mm grid | 15, revealed edge 15 mm grid

Thickness: 15 mm nom.

Sound absorption:

Alpha w = 0,65

NRC = 0,70

Sound reduction:

Dn,f,w = 31 dB

CAC = 33 dB

Humidity resistance: up to 95% RH
