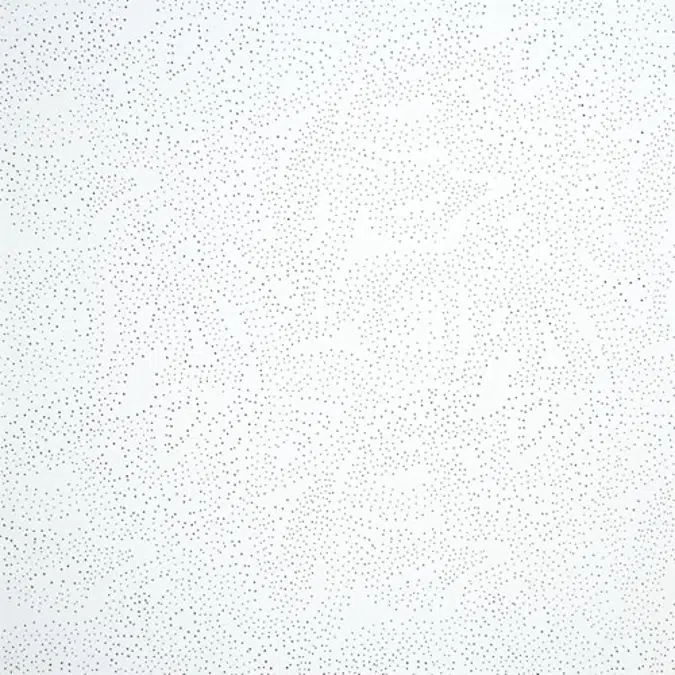

Janus Constellation

The Janus Constellation ceiling tile provides good room acoustics along with high sound insulation. Ceiling cavity noise is also efficiently absorbed. The tiles can be installed quickly and easily using elements from the OWAconstruct range. For repair and inspection work, the ceilings are easy to open and close without affecting their good sound insulation properties. Janus is also available in the Cosmos/N surface version.

Specification

Mineral tile Janus Constellation
Name: OWAcoustic mineral tile Janus Contellation
Collection: OWAlifetime collection
Manufacturer: OWA
Application: Ceiling system S 3, S 3 cliq, S 15 cliq

Technical data:
Mineral boards in accordance with DIN EN 13964 and DIN 18177
Proof of usability in accordance with EU Construction Products Regulation:
CE marking and Declaration of Performance (DoP)
Air permeability class: PM 1
Formaldehyde class: FH 1
VOC emissions: TVOC 1
Design: Janus Constellation
Colour: white, finished
Light reflection: approx. 88 (ISO 7724-2, ISO 7724-3)
Reaction to fire: A2-s1,d0 according to DIN EN 13501-1
Edge: 3, Square edge
Thickness: 33 mm
Sound absorption:
Alpha w = 0,65
NRC = 0,65
Sound reduction:
Dn,f,w = 49 dB
CAC = 49 dB
Humidity resistance: bis 95% RH

Technical specification

Unique ref.Janus-Constellation
Product familyMineral ceilings
Product groupExposed systems
TypeObject (single object)
Date of publishing2025-10-02
Edition number1

Links

Product urlhttps://www.owa.de/en/produkt/janus-constellation-jans-en/
Installation instructionshttps://www.owa.de/wp-content/uploads/2019/05/DS_9801_e.pdf
Instruction videohttps://www.owa.de/en/service/videos/
Technical descriptionhttps://www.owa.de/wp-content/uploads/2019/05/DB_Sternbild_d.pdf
Tendering informationhttps://ausschreiben.de/catalog/owa

Related

Material mainMineral
Material secondaryMetal
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryBuilding Materials - Acoustic Panels & Accessories
IFC classificationCeiling
Uniclass 2015 CodeSs_30_25_22
Uniclass 2015 DescriptionDemountable suspended ceiling systems
CSI MasterFormat 2014 Code09 51 23
CSI MasterFormat 2014 TitleAcoustical Tile Ceilings
OmniClass Number23-15 19 15 11 11
OmniClass TitleAcoustical Ceiling Tile
