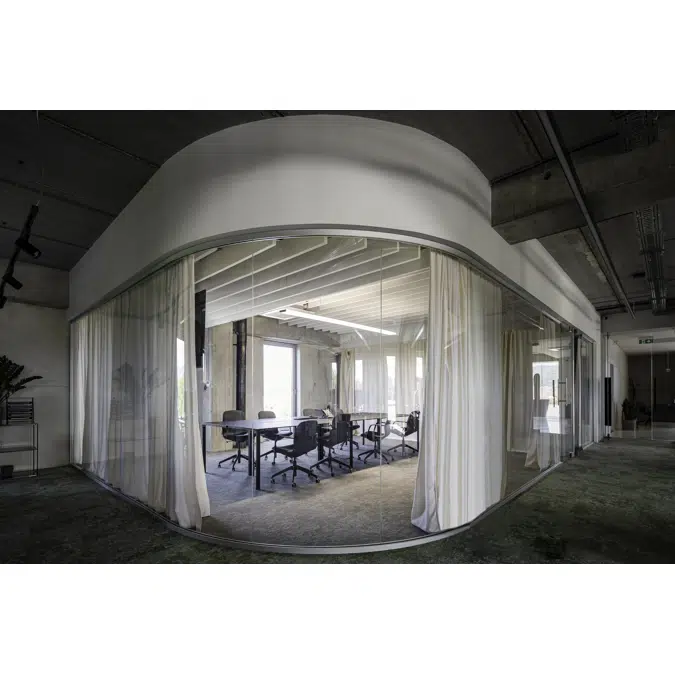

FreeStyle baffles

The baffles of the FreeStyle product line combine the need for distinctiveness with an open, generous sense of style. There are virtually unlimited options for combining the baffles, either horizontally or vertically. They can be installed in two ways. With an adjustable hanger, the FreeStyle baffles float “free” from the ceiling, held by thin wires. In combination with an OWA System S 3 ceiling, they hang on a support rail and float directly below the suspended ceiling. Whatever option you choose, FreeStyle baffles give ceiling areas and entire rooms an impressive character.

Specification

Glass wool FreeStyle Baffles
Name: OWAconsult glass wool FreeStyle
Collection: OWAconsult collection
Manufacturer: OWA
Application: Baffles
Technical data:
Proof of usability in accordance with EU Construction PVO:
CE marking and Declaration of Performance (DoP)
Visible side: white, grey, black, fleece-laminated or fabric-laminated

Design: fleece- or fabric-covered
Colour: white, grey, black finished or fabric materials
Light reflection: for white approx. 78 (ISO 7724-2, ISO 7724-3)
Reaction to fire: only for fleece covered A2-s1,d0 according to DIN EN 13501-1
Edge: sharp-edged, fleece- or fabric-laminated
Thickness: 40 mm
Sound absorption:
Alpha w = 0,65/0,70
NRC = 0,65/0,75

Humidity resistance: up to 90% RH
