OWA - Odenwald Faserplattenwerk GmbH

Corpus

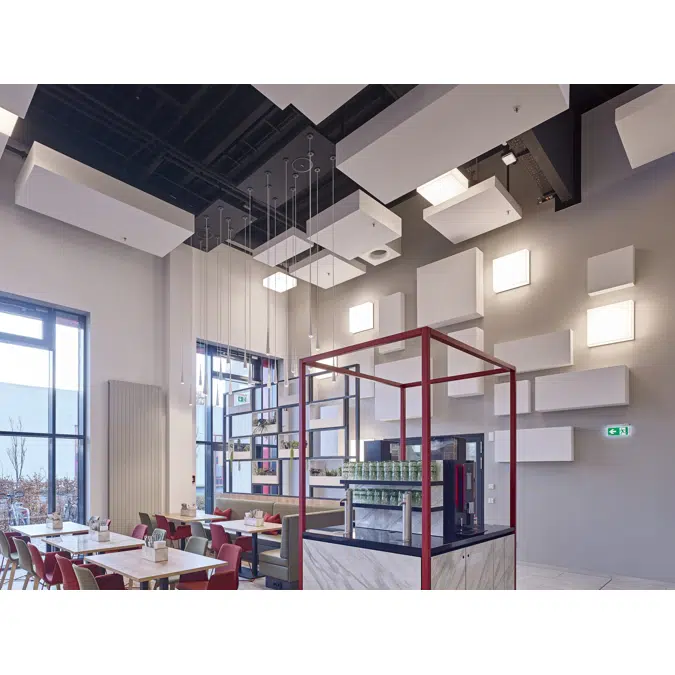

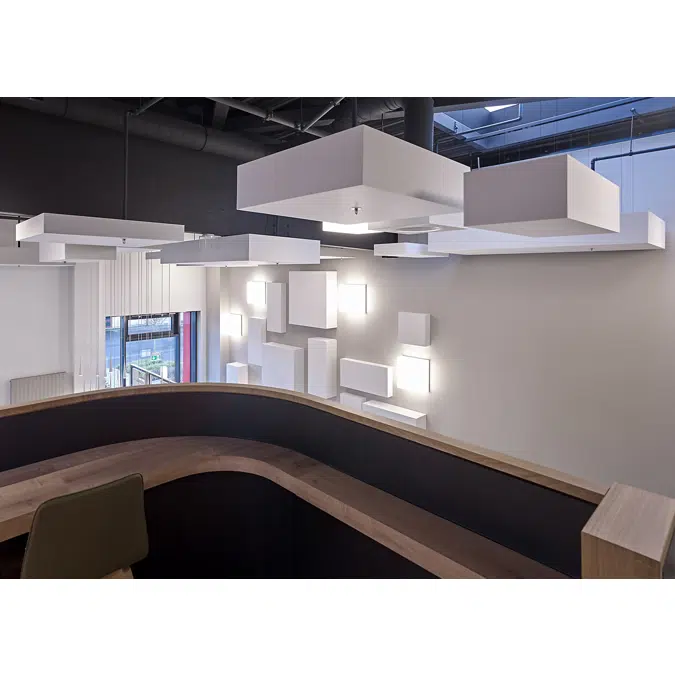

The Corpus product, which has won several design awards, offers excellent acoustic performance while having an expressive look. Its basis is a modular construction kit consisting of ten differently sized, rectangular and square acoustic elements with ultra-fine, white, fleece-covered surfaces, providing almost limitless combination options. The ten three-dimensional acoustic elements can be combined as desired and either connected together or installed with variable spacings. Cube LED elements provide even more variety and impressive lighting effects.

Specification

Glass wool Corpus
Name: OWAconsult glass wool Corpus
S1, S2, M1, M2, L1, L2, XL1, XL2, XXL1 and XXL2
Collection: OWAconsult collection
Manufacturer: OWA
Application: Canopies
Technical data:

Visible side: white, fleece-laminated
Design: fleece-covered
Colour: white, finished
Light reflection: approx. 78 (ISO 7724-2, ISO 7724-3)
Reaction to fire: A2-s1,d0 according to DIN EN 13501-1
Edge: sharp-edged
Height:
S1, M1, L1, XL1 and XXL1 150 mm
S2, M2, L2, XL2 and XXL2 300 mm
Sound absorption:
Alpha w = 1,00
NRC = 1,00

Humidity resistance: up to 90% RH

Technical specification

Unique ref.Corpus_Canopies
Product familyCanopies
Product groupCanopies
TypeObject (single object)
Date of publishing2025-10-02
Edition number1

Links

Product urlhttps://www.owa.de/en/produkt/corpus-corpus-en/
Installation instructionshttps://www.owa.de/wp-content/uploads/2022/02/DS_1964_e.pdf
Tendering informationhttps://ausschreiben.de/catalog/owa

Related

Material mainGlass wool
Material secondaryMetal
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryBuilding Materials - Acoustic Panels & Accessories
IFC classificationCeiling
Uniclass 2015 CodeSs_30_25_22_70
Uniclass 2015 DescriptionRaft or island suspended ceiling systems
CSI MasterFormat 2014 Code09 51 00
CSI MasterFormat 2014 TitleAcoustical Ceilings
OmniClass Number23-15 13 21
OmniClass TitleCeiling Panels
