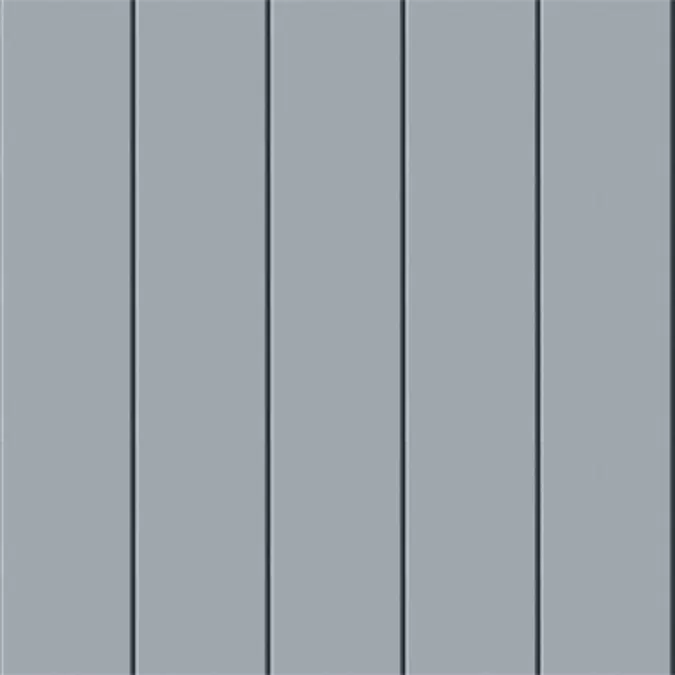

Double Standing Seam Roof (530 mm, prePATINA blue-grey)

Double Standing Seam Roof (530 mm, prePATINA blue-grey)

Double Standing Seam Roof (530 mm, prePATINA blue-grey)

The double standing seam is formed by locking the sides of adjoining panels by double welting the top of the upstand of the seam. The standard panel width is 530 mm, the height of the seam is approx. 25 mm. The minimum roof pitch is 3° (5.2%), a fully supporting substrate is requiered. Special shapes such as convex and concave curves or tapered panels can be produced without any problem.

技术规格

唯一参考RZK010007
产品系列Zinc Covering
产品组Double Standing Seam Roof (530 mm, prePATINA blue-grey)
类型对象（单个对象）
发布日期2019-03-01
版本号1

相关

主材料锌

分类

BIMobject 类别建筑 - 屋顶

发售地区

欧洲
德国
