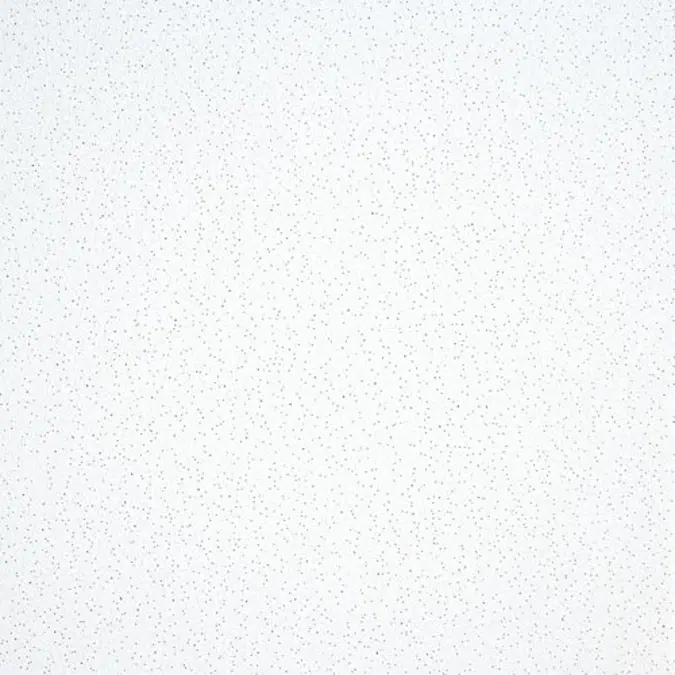

Janus Cosmos/N
Janus Cosmos/N

    Janus Cosmos/N

    The Janus Cosmos/N ceiling tile provides good room acoustics along with high sound insulation. Ceiling cavity noise is also efficiently absorbed. The tiles can be installed quickly and easily using elements from the OWAconstruct range. For repair and inspection work, the ceilings are easy to open and close without affecting their good sound insulation properties. Janus is also available in the Constellation surface version.

    规格
    • Mineral tile Janus Cosmos/N

      Name: OWAcoustic mineral tile Janus Cosmos/N

      Collection: OWAlifetime collection

      Manufacturer: OWA

      Application: Ceiling system S 3, S 3 cliq, S 3a, S 3a cliq, S 15 cliq, S 15a cliq


      Technical data:

      Mineral boards in accordance with DIN EN 13964 and DIN 18177

      Proof of usability in accordance with EU Construction Products Regulation:

      CE marking and Declaration of Performance (DoP)

      Air permeability class: PM 1

      Formaldehyde class: FH 1

      VOC emissions: TVOC 1

      Design: Janus Cosmos/N

      Colour: white, finished

      Light reflection: approx. 84 (ISO 7724-2, ISO 7724-3)

      Reaction to fire: A2-s1,d0 according to DIN EN 13501-1

      Edge: 3, Square edge

      Thickness: 33 mm

      Sound absorption:

      Alpha w = 0,60

      NRC = 0,60

      Sound reduction:

      Dn,f,w = 49 dB

      CAC = 49 dB

      Humidity resistance: bis 95% RH

    技术规格
    • 唯一参考Janus-CosmosN
    • 产品系列Mineral ceilings
    • 产品组Exposed systems
    • 类型对象(单个对象)
    • 发布日期2025-10-02
    • 版本号1
    相关
    • 主材料矿物
    • 次要材料金属
    • 设计国家/地区德国
    • 制造国家/地区德国
    分类
    • BIMobject 类别建筑材料 - 吸音板及配件
    • IFC 分类天花板
    • Uniclass 2015 代码Ss_30_25_22
    • Uniclass 2015 说明Demountable suspended ceiling systems
    • CSI MasterFormat 2014 代码09 51 23
    • CSI MasterFormat 2014 标题Acoustical Tile Ceilings
    • OmniClass 编号23-15 19 15 11 11
    • OmniClass 标题Acoustical Ceiling Tile
