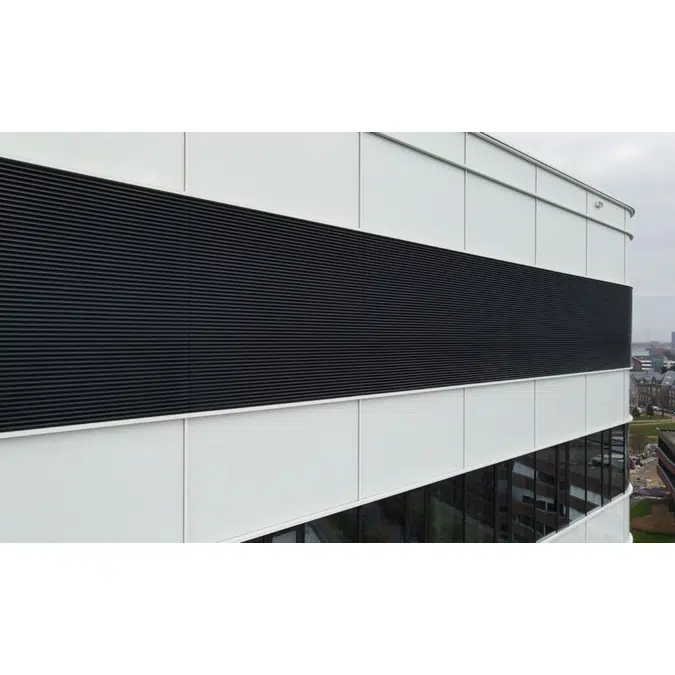

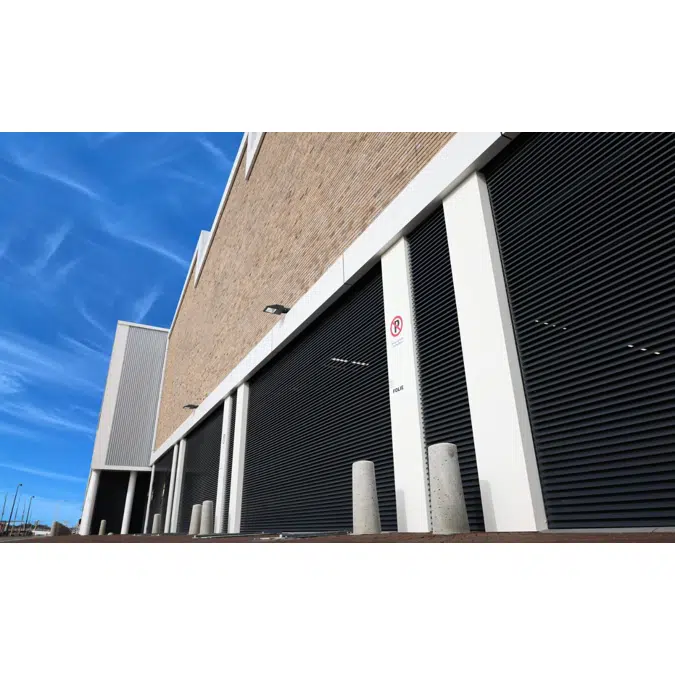

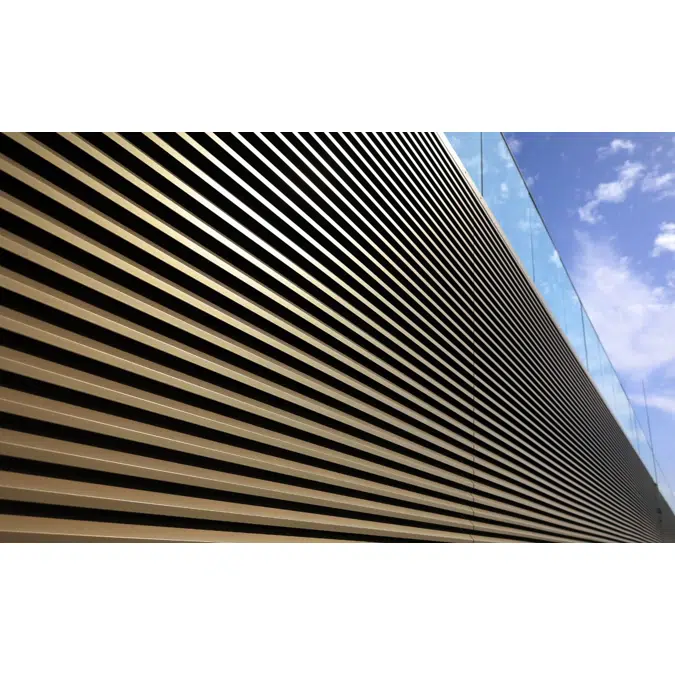

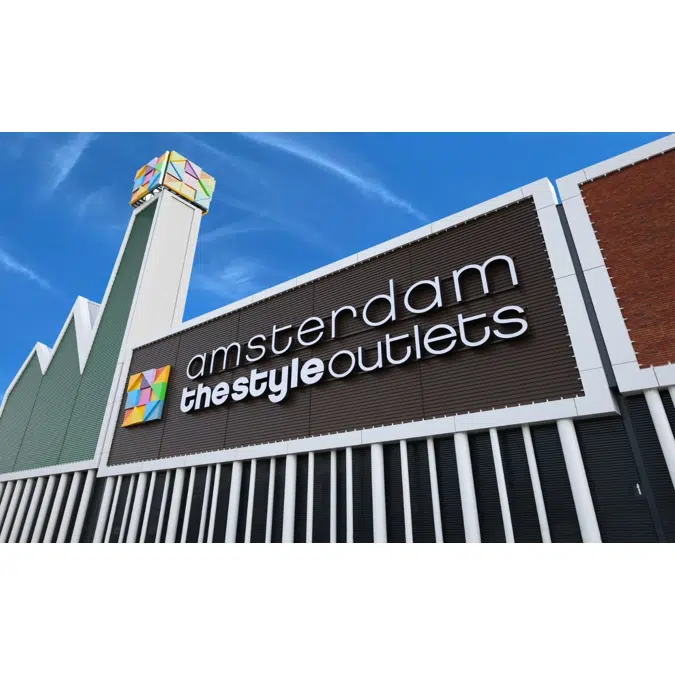

Storax Louvre Wall ST-050-00

Storax Louvre Wall ST-050-00

Storax Louvre Wall ST-050-00

Storax Louvre Wall ST-050-00

Storax Louvre Wall ST-050-00

Storax Louvre Wall ST-050-00

ST-050-00 | Extruded aluminium profile with 50 mm pitch and 49% physical free area. Suitable for fixed and variable step spacings (50–100 mm).

规格

ST-050-00 | Extruded aluminium profile with 50 mm pitch and 49% physical free area. Suitable for fixed and variable step spacings (50–100 mm). Made from EN AW 6063 T66, anodized (20 µm) or powder-coated (RAL, Sikkens, NCS, Interpon – 60–80 µm). Blade bendable (min. radius 800 mm). Optional top/bottom blades: ST-050-02, ST-050-03/-04. Single/double doors with STORAX fittings. Louvre holders: ST-050-11/-12 (fixed), ST-050-13/-14 (variable). Max. span 1200 mm at wind load qb 800 Pa. Profile dimensions: 41 x 56 mm.

技术规格

唯一参考st-050-00
类型建筑材料材料
发布日期2025-07-11
版本号1

链接

产品网址https://www.storax.nl/producten/lamellenwanden/st-050-00-49/

相关

主材料铝
设计国家/地区Belgium
制造国家/地区Belgium

分类

BIMobject 类别墙壁 - 覆面

发售地区

Europe
Netherlands
