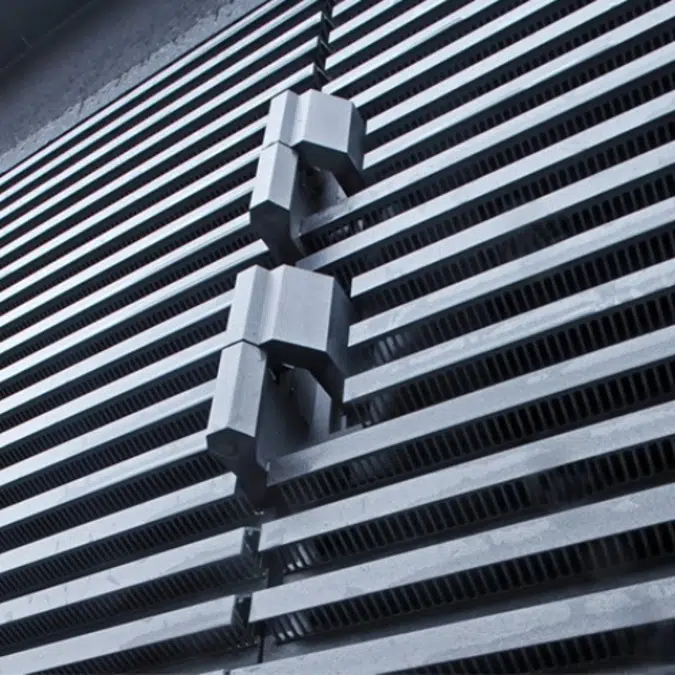

Storax Louvre Wall ST-033-Perfo

Storax Louvre Wall ST-033-Perfo

Storax Louvre Wall ST-033-Perfo

ST-033-PERFO | Extruded Z-shaped dummy louvre with a 33.3 mm pitch and 24% physical free area.

规格

ST-033-PERFO | Extruded Z-shaped dummy louvre with a 33.3 mm pitch and 24% physical free area. Equipped with insect-repellent perforation (11.5 x 3 mm). Made of aluminium extrusion (EN AW 6063 T66), anodized (20 microns) or powder-coated in any RAL, Sikkens, NCS, or Interpon color (60–80 microns). Also available without perforation (ST-033-CLOSE). Single and double doors available with standard STORAX hardware. Louvre holders: ST-033-11 (30 mm) or ST-033-12 (34 mm, for thermal expansion). Max. span 1400 mm at wind load qb 800 Pa. Blade dimensions: 20.4 x 37.5 mm.

技术规格

唯一参考st-033-perfo
类型建筑材料材料
发布日期2025-07-11
版本号1

链接

产品网址https://www.storax.nl/producten/lamellenwanden/st-033-perfo-24/

相关

主材料铝
设计国家/地区Belgium
制造国家/地区Belgium

分类

BIMobject 类别墙壁 - 覆面

发售地区

Europe
Netherlands
