Optilite Acrylic Skylight
Optilite Acrylic Skylight
Optilite Acrylic Skylight
    Kera Group

    Optilite Acrylic Skylight

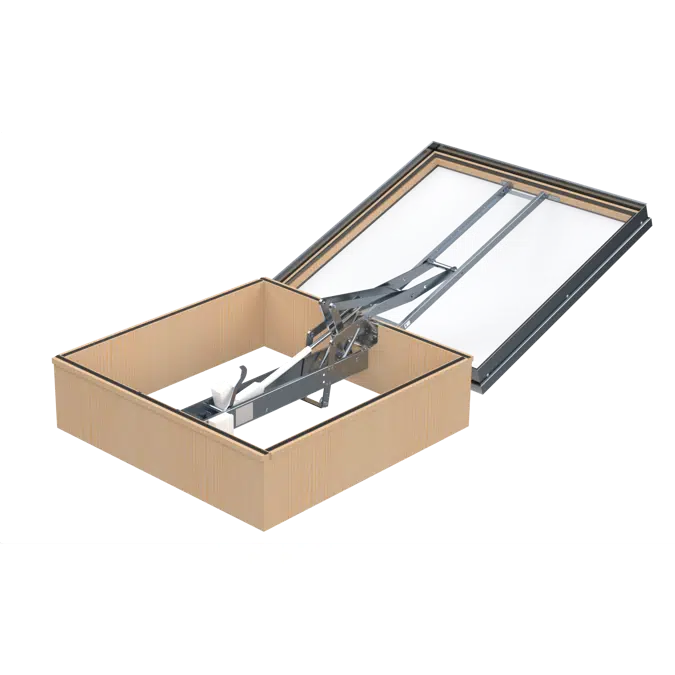

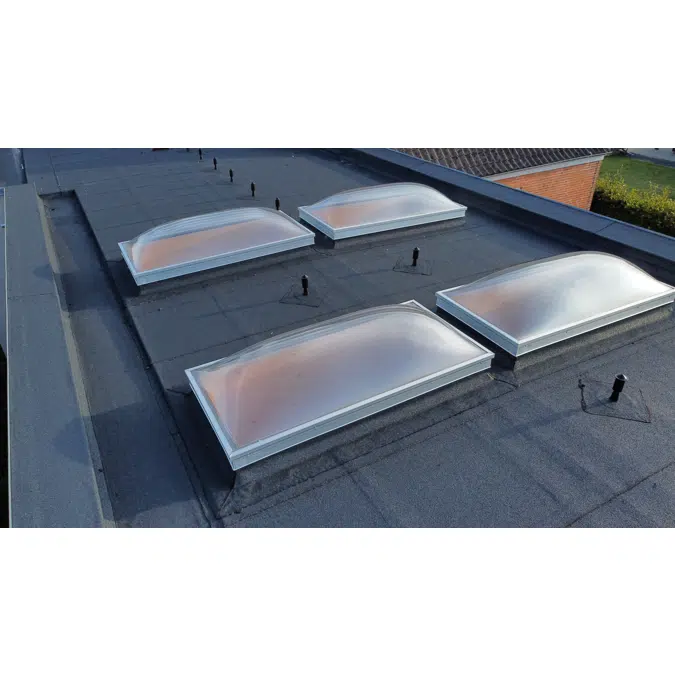

    Optilite Acrylic Skylight is the ideal smoke vent for stairwells and public buildings where natural daylight is essential.

    Manufactured from Acrylic sheets (PMMA), it offers high durability and long service life.

    The acrylic layers are framed in extruded aluminium profiles with a special insulation profile in PVC foam.

    The Optilite Acrylic Skylight is available with the following options:

    • Dome or pyramid shapes.
    • Choose between 2 and 5 layers to meet your specific need for energy efficiency.
    • Dome variants can be fitted with an outer layer of polycarbonate for superior impact resistance.
    • Fixed or openable upstands options in several designs, tailored to your specific requirements
    • Fall protection grille fixed in the upstand.
    • Pneumatic or electric opening systems
    • Limit switch for BMS surveillance
    • A wide range of exterior and interior colors to suit diverse design desires

    All Optilite skylights are certified according to EN 1873 and EN 12101-2.
    Detailed specifications such as dimensions, weights, and technical properties are available in the product datasheet.


    KERA GROUP

    Kera Group is a family-owned company founded in 1971, offering high-quality smoke ventilation, rooflight, and safety automation solutions. Established in Northern Europe and supplying projects across the continent, we combine decades of engineering expertise with dependable service.

    技术规格
    • 唯一参考optilite-acrylic-skylight
    • 类型对象(单个对象)
    • 发布日期2025-11-11
    • 版本号1
    分类
    • BIMobject 类别窗户 - 天窗

    发售地区

    Europe
    Denmark
    Estonia
    Finland
    Latvia
    Lithuania
    Norway
    Poland
    Sweden
