KNX Motor Controls

The elaborate and robust motor control is used for shading with façade products like venetian blinds, rolling shutters, awnings and façade awnings and boasts all the necessary features to do so.

Thanks to sophisticated end position detection, the system is moved into the shading position and the room is only in shade for a short period of time.

Measuring and analyzing the operating time enables the façade product to be moved into the exact position. The aging process and fluctuations in temperature are thereby automatically taken into account.

The automatic solar tracking control, which features 4 preset operating positions – privacy, shading below, shading above and transparency –, offers a high level of comfort in the workplace and at home.

“Limited operation” also guarantees optimum product protection if it’s windy or frosty. The façade product can still be operated in a reduced, secure area.

Standard pushbuttons or control cables can be directly connected to the binary inputs on the device. The connection input statuses affect the motors or they can be sent on the BUS as KNX products.

规格

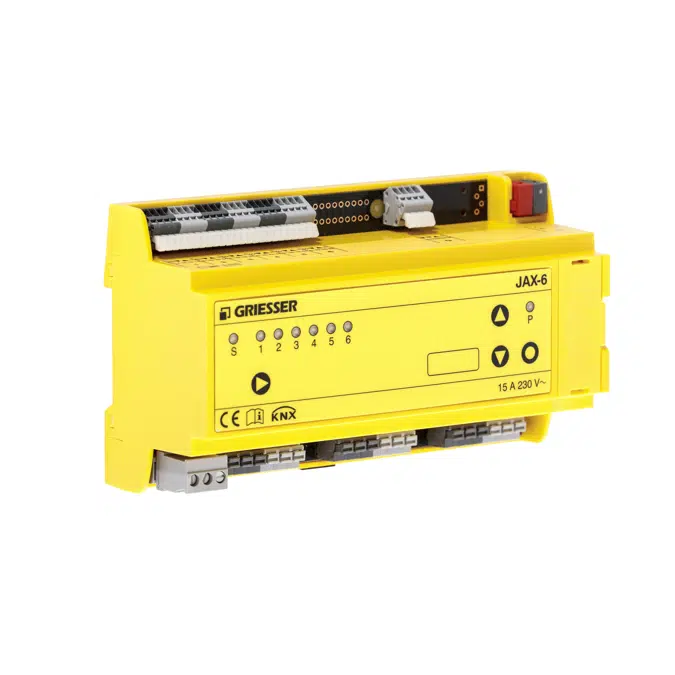

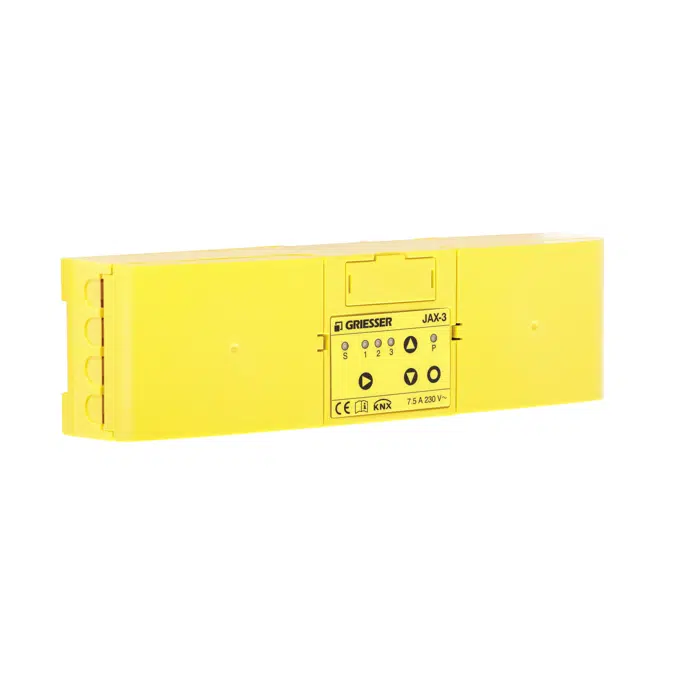

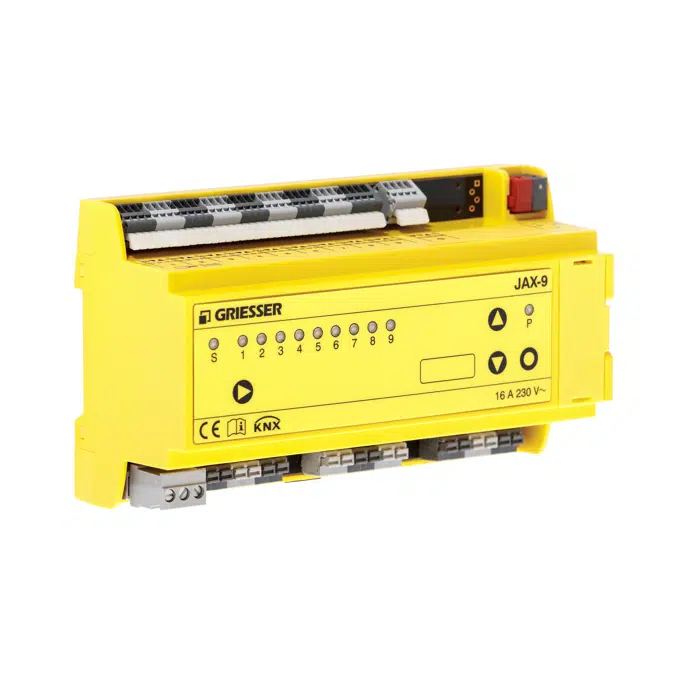

Technical Specification - JAX-3 / JAX-6 / JAX-9
Electrical Connections
Mains Connection
- Voltage: 230 V AC ±10%, 50 Hz
- Circuit breaker: Max. 16 A
- Standby power: 1.5 W per channel
- Connection type: Screw terminals, 3-pin (L, N, PE)
KNX-BUS Connection
- Connection: Plug-in terminals, red/black, 2 x 4-pin
- Cable: 2 conductors, 0.5–0.8 mm (solid)
- Installation: According to KNX standard
Motor Outputs
- Model type:
  JAX-1: Number of outputs: 1 - Connection: Screw terminals, 5-pin (UP, DOWN1, DOWN2, N, PE)
  JAX-3: Number of outputs: 3 - Connection: Screw terminals, 5-pin (UP, DOWN1, DOWN2, N, PE)
  JAX-6: Number of outputs: 6 - Connection: Screw terminals, 3-pin (UP, DOWN1, DOWN2)
  JAX-9: Number of outputs: 9 - Connection: Screw terminals, 2-pin (UP, DOWN)
- Motor type: Asynchronous motor 230 V AC, 50 Hz
- Max. motor current: 2.5 A with 2 or 3 mech. limit switches, power factor > 0.9
- Motor protection: Built-in limit detection, no parallel motor connection allowed
- Power factor: > 0.9
Local and Group Operation
- Circuit type: SELV (Safety Extra Low Voltage)
- Local and group control via 4-wire twisted pair (Ø 0.8 mm)
- Max. cable length: 100 m
- Status LED for local control and operation mode
Mechanical Data
- Model type JAX-1:
  Number Dimensions (W x H x D): 190 x 70 x 52 mm
  Weight: 300 g
  Protection class: IP 20 according to EN 60529 (closed)
- Model type JAX-3:
  Number Dimensions (W x H x D): 205 x 70 x 50 mm
  Weight: 380 g
  Protection class: IP 20 according to EN 60529 (closed)
- Model type JAX-6:
  Number Dimensions (W x H x D): 205 x 70 x 50 mm
  Weight: 320 g
  Protection class: IP 20 according to EN 60529 in correctly installed switch cabinet
- Model type JAX-9:
  Number Dimensions (W x H x D): 157 x 90 x 57 mm
  Weight: 320 g
  Protection class: IP 20 according to EN 60529 in correctly installed switch cabinet
- Safety class: II according to EN 60730-1
- Rated impulse voltage: 4000 V (IEC 60664-1)
- Operating temperature: 5 bis +45 °C
- Installation:
  JAX-1 / JAX-3: DIN rail, railing channel, false floor, wall or false ceiling
  JAX-6 / JAX-9: in switch cabinet on DIN rail 35 mm according to DIN EN 60715
