GARDA AP 200 Linear Railing

Embedded glass railing system that maximizes transparency. Complete integration, clean aesthetics, and structural performance for all types of projects.

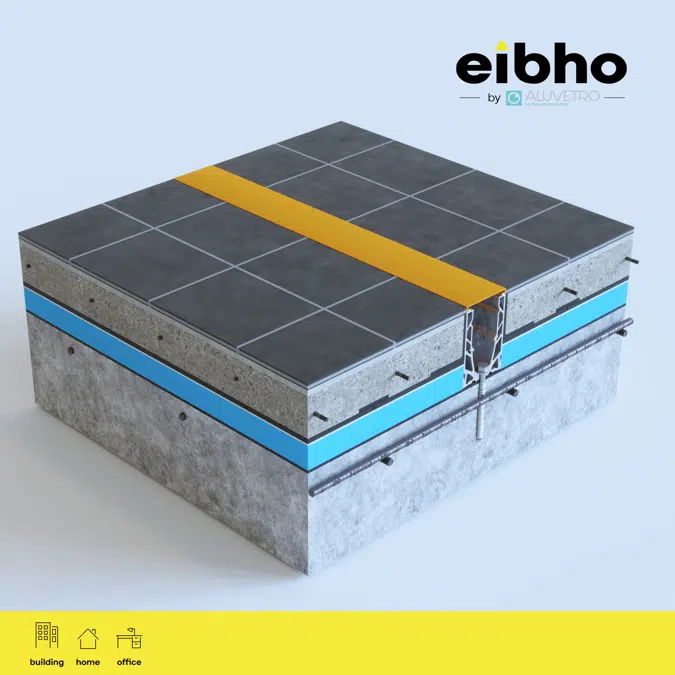

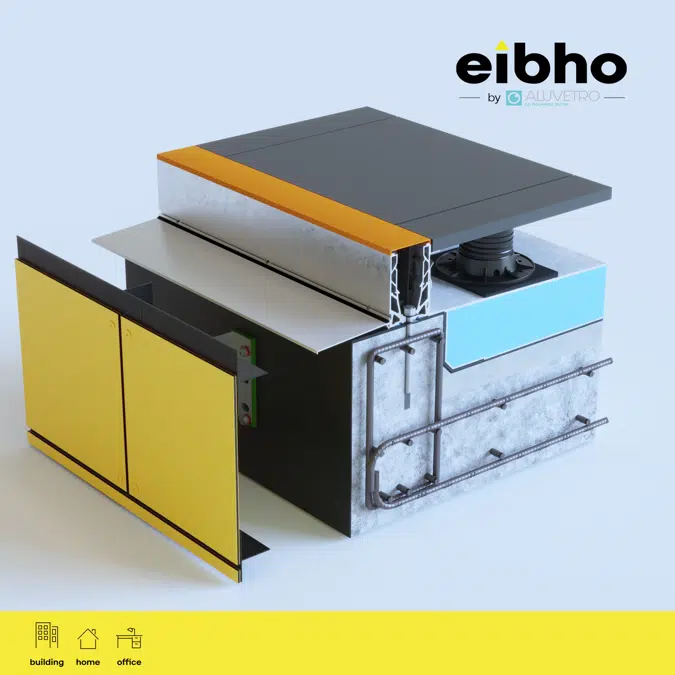

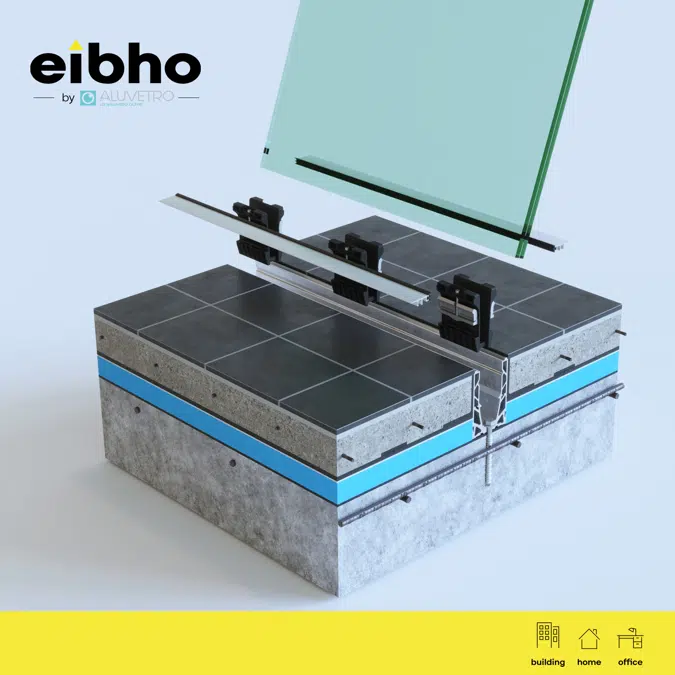

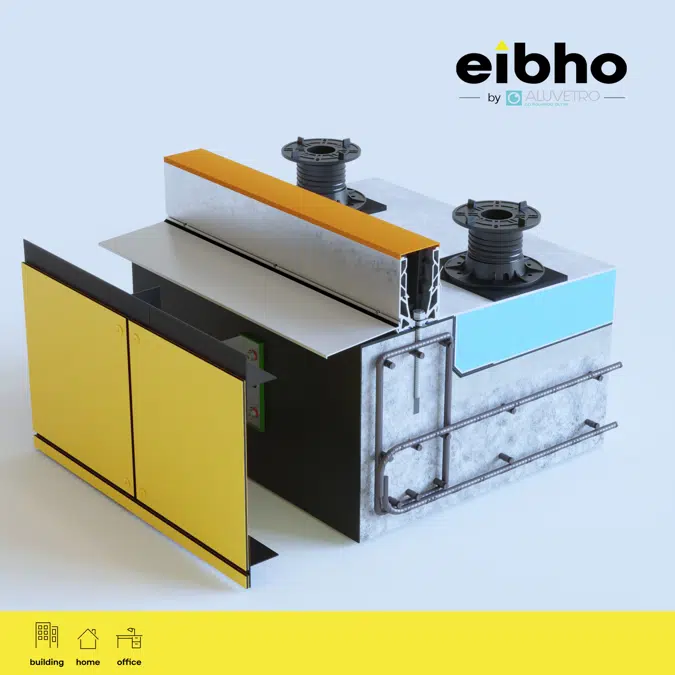

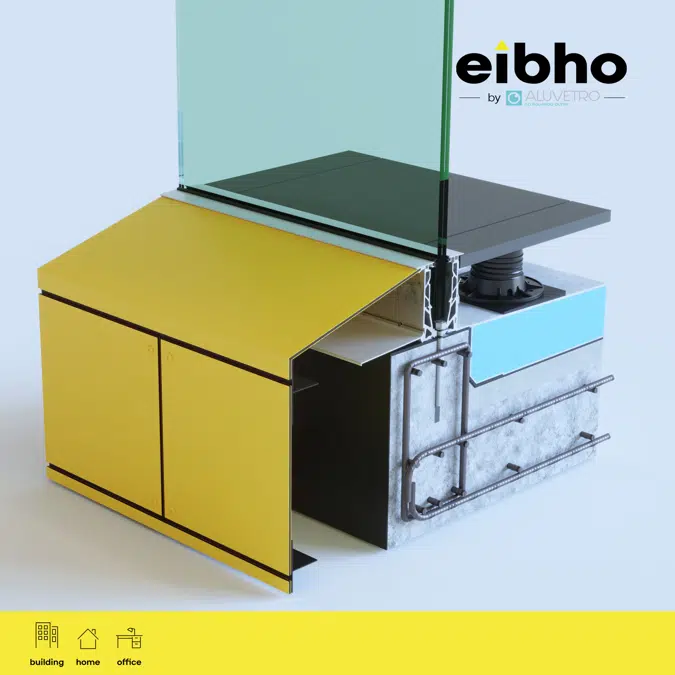

Glass railing system with interior mounting AP 200 or offset mounting AP 200 SPECIAL, both featuring a concealed base profile beneath raised flooring or pavement.

Perfect for projects where no visible profile components are desired from the outside, ensuring maximum visual clarity.

规格

Resistance according to application:
- 0.8 kN/m → standard residential and commercial use
- 1.6 – 2.0 kN/m → gyms, public areas, and access points
- Safety test over 2.0 kN/m → 3.0 kN/m
Available thicknesses:
- 8+8.2 mm / 8+8.4 mm
- 10+10.2 mm / 10+10.4 mm
- 12+12.2 mm / 12+12.4 mm
Complies with CTE regulations – usage zones: A1, A2, B, C1, C2, C3, C4, D1, D2, E, F, G1, G2

技术规格

唯一参考GARDA-AP-200-Linear-Railing
产品系列GARDA EIBHO by Aluvetro
产品组GARDA AP
类型对象（单个对象）
发布日期2025-12-08
版本号1

链接

产品网址https://eibhobyaluvetro.com/fichas/garda-ap-200-ap-200-especial/
技术说明https://eibhobyaluvetro.com/productos/barandillas-lineales-vidrio/
