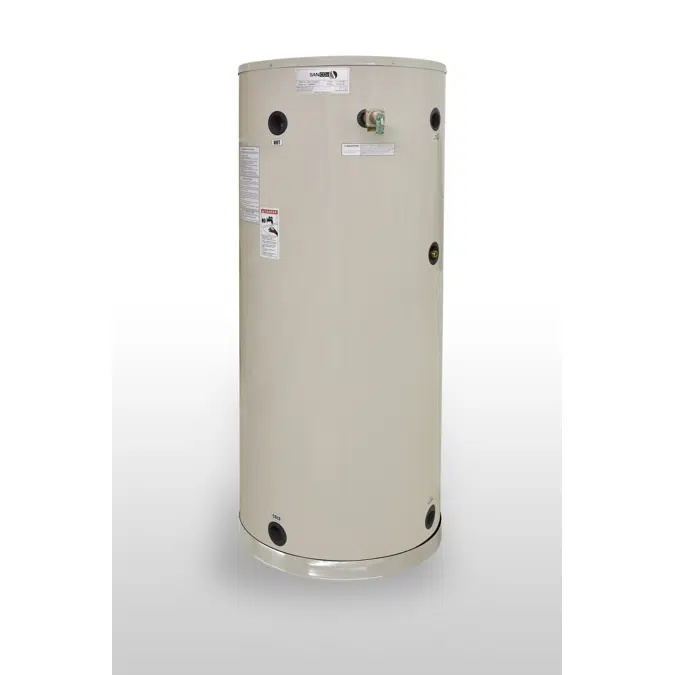

119 gallon storage tank

Residential / commercial glass-lined 119G storage tank

规格

Construction
The tank shall be manufactured from mild steel with
a baked on Cobalt enriched porcelain glass lining
Tank outer shell shall be steel with a baked on
powder coating for protection
The ECO-119GLBB Tank is only certified for Indoor
installation, it should not be located external to the building

Insulation
2" of High R value foam insulation will be sprayed on to the
bare shell of the tank to reduce heat loss

Connections
Connections to the Hot and Cold building supplies shall be
1 1/2" NPT Female type
Connections to the Hot and Cold piping to the Heat Pump
shall be 3/4" NPT Female type
Cold Water Piping from Storage Tank to Heat Pump
and return of Hot Water piping from Heat Pump to Tank
shall be 1/2" Copper or PEX.
2 of 4" long 3/4" Male x 3/4" Male connections will be boxed
which shall be located at the base of the ECO-119GLBB
2 x Magnesium anode rods shall be installed internally

Controls
The tank shall be supplied with a Temperature sensor
installed in a sensor well to control the GS5-45HPC & -D
Additional GS Heat Pumps connected to a tank shall
require an individual Temperature sensor
Tank Sensor wiring to the GS Heat Pump will be 18-2AWG
Two additional Thermowells are supplied with the Tank at
the Top and Bottom levels of the Tank so that a Controller
to provide Demand Response signals can be used

Pressure and Temperature Relief
Tank shall be supplied with a factory installed
ASME certified Pressure and Temperature Relief valve
Settings shall be at 150 Psig for Presssure and
210°F for Temperature

技术规格

唯一参考119-gallon-storage-tank
产品系列Residential Tanks
产品组ECO-119GLBB
类型对象（单个对象）
发布日期2025-09-05
版本号1
高度 (inch)63.57
宽度 (inch)28
深度 (inch)28

链接

相关

主材料碳钢
次要材料玻璃颗粒
设计国家/地区United States
制造国家/地区United States
净重 (Lbs)345

分类

BIMobject 类别暖通空调 - 热水器
IFC 分类电热器
ETIM 代码EG000043
ETIM 名称Residential heating
Uniclass 2015 代码Pr_60_60_96
Uniclass 2015 说明Water heaters
CSI MasterFormat 2014 代码22 33 36.16
CSI MasterFormat 2014 标题Commercial Storage Electric Domestic Water Heaters
OmniClass 编号23-31 29 00
OmniClass 标题Hot Water Heaters
