Perforated Metal Center-Basket LED Troffer Light

Alcon Lighting

Perforated Metal Center-Basket LED Troffer Light

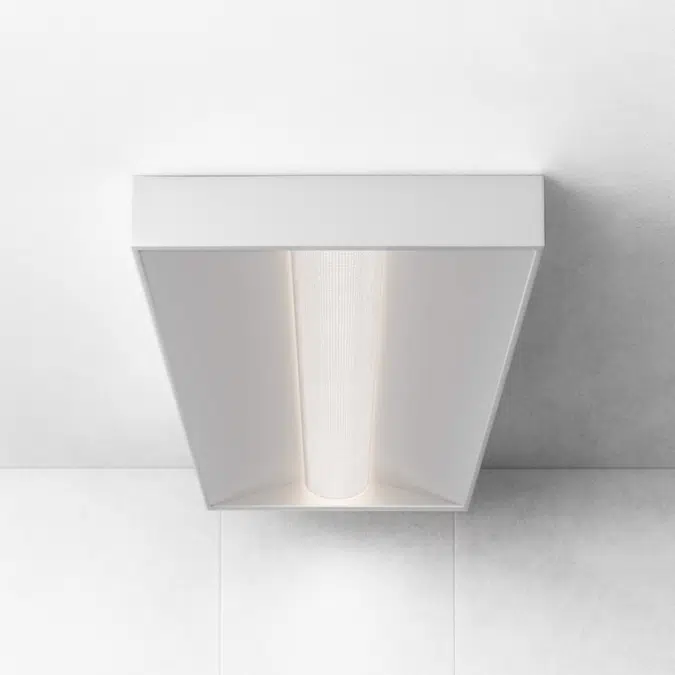

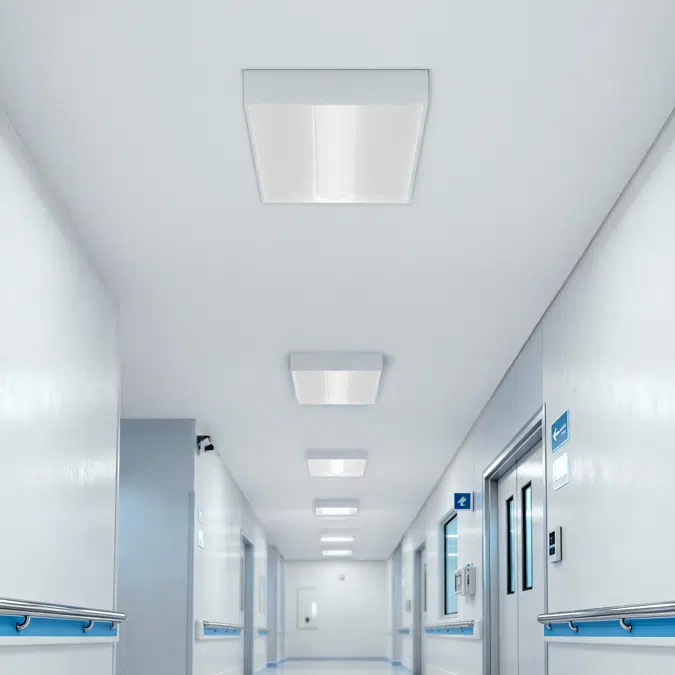

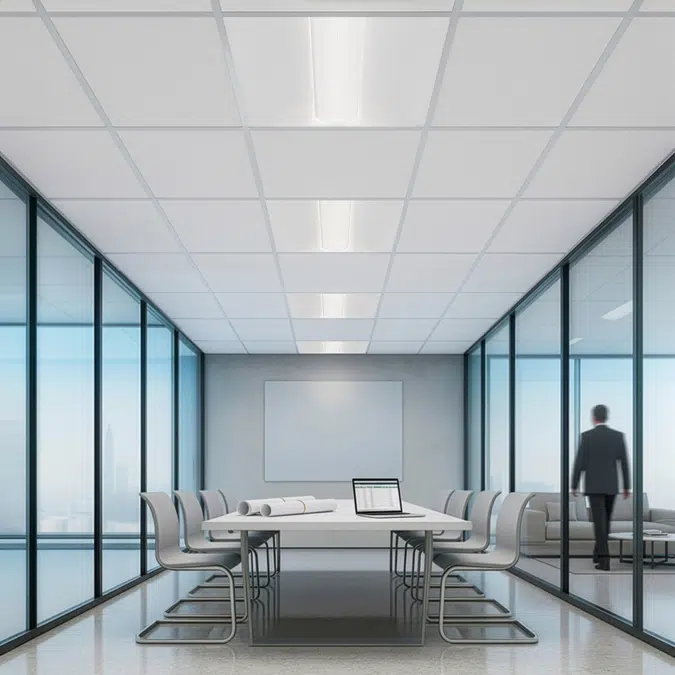

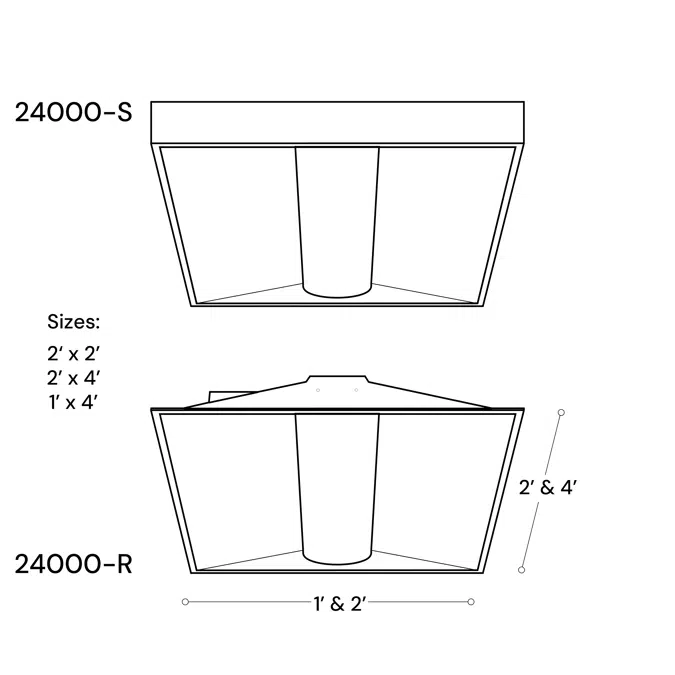

Alcon Lighting’s 24000 perforated metal center-basket LED troffer delivers high-performance illumination for offices, classrooms, medical facilities and institutional environments. Available in 2’x2’ and 2’x4’ sizes, the architectural troffer is available in recessed and surface-mount configurations and features a perforated metal asymmetrical center basket that reduces glare while reflecting light efficiently. Four wattage options provide 2,964 to 5,866 lumens, with a color temperature switch offering 3500K, 4000K or 5000K static CCT. Choose recessed or surface-mount configurations, with optional emergency battery backup, occupancy and daylight sensors, and an antimicrobial white finish for healthcare applications. Smooth edges allow easy installation, and the troffer is backed by a 5-year warranty, extendable to 10 years.

规格

Construction: Aluminum
Lens: Perforated metal basket or acrylic
Finish: White

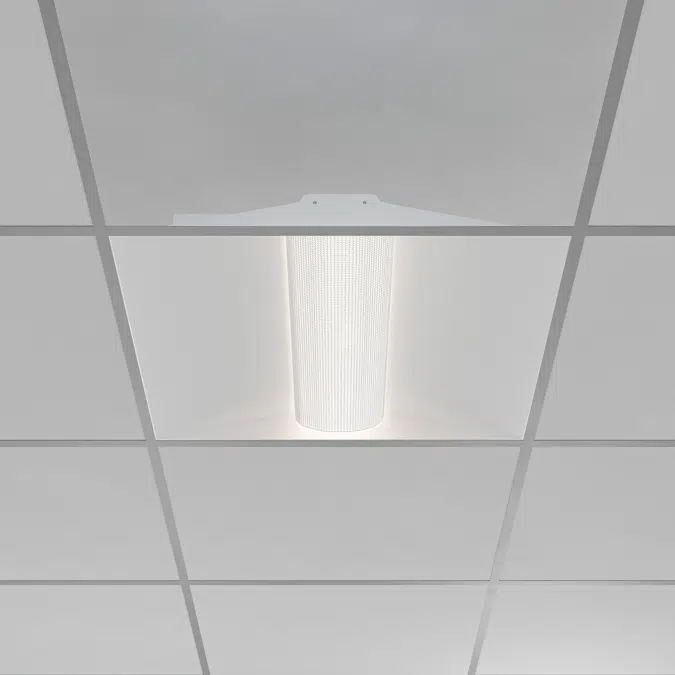

Mounting: Recessed T-bar grid, recessed flanged, surface (22-gauge cold-rolled steel with a high-gloss baked enamel finish)
Voltage: 120-277V
Wattage/Lumens: 19W/2964 lm, 24W/3696 lm, 32W/4864 lm, 39W/5866 lm
Driver: 0-10V (100% to 10%)
Color temperature (CCT): Field-selectable 3500K/4000K/5000K
CRI: 80+
Optional features: 8W/16W/25W emergency battery, occupancy & daylight harbesting sensor, 10-year warranty, controls
Operating temperature: -22°F to 122°F
Life: >54,000 (L70); >51,000 (L90)
Warranty: 5 years carefree for parts & components (labor not included), 10 years available upon request
Listing: Dry and Damp location rated, cULus, DLC, DLC Premium

技术规格

唯一参考24000-center-basket-troffer-light
产品系列Indoor Lighting
产品组Recessed Lighting
类型对象（单个对象）
发布日期2025-11-21
版本号1
