Hexagon LED Pendant Uplight and Downlight

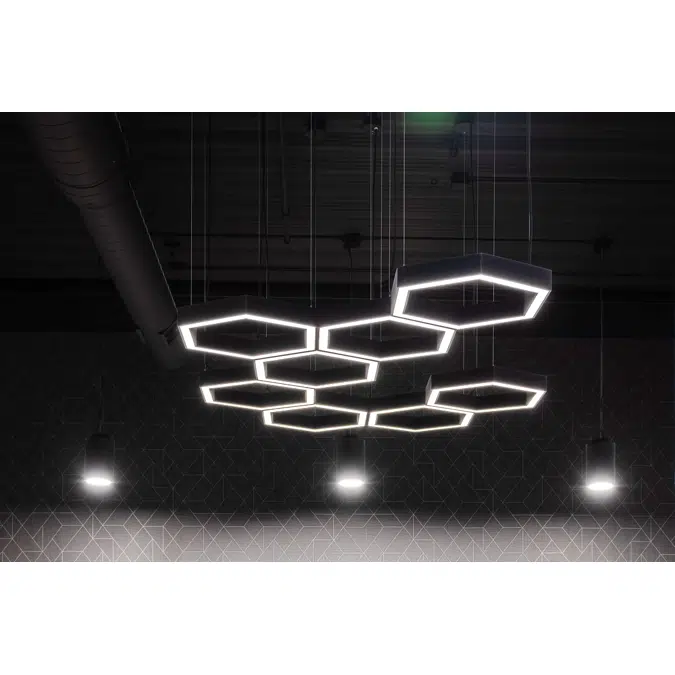

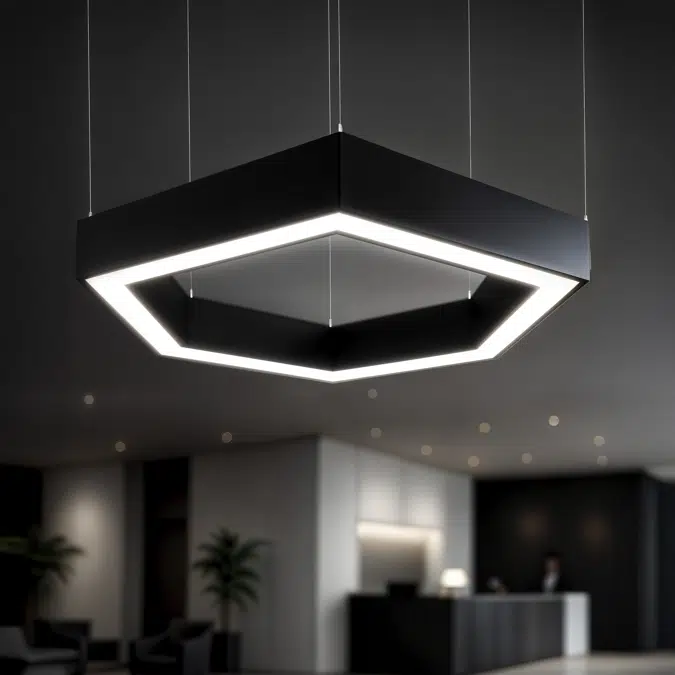

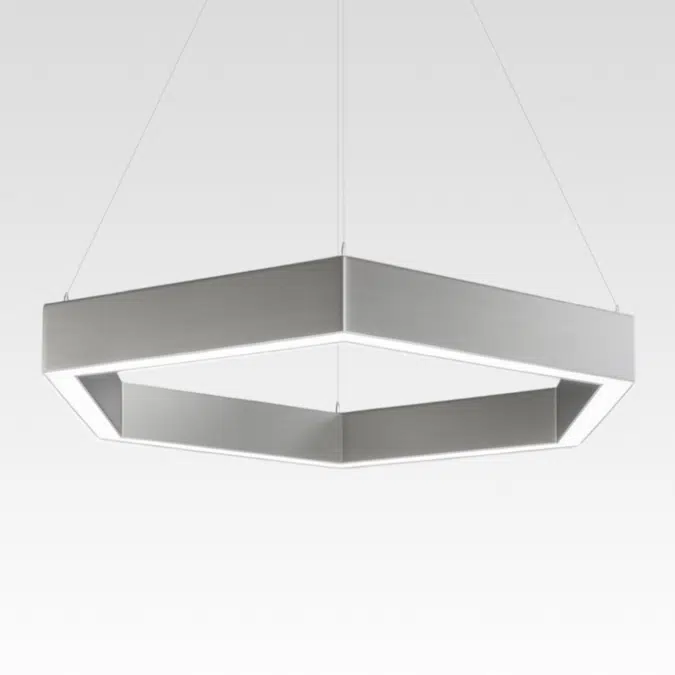

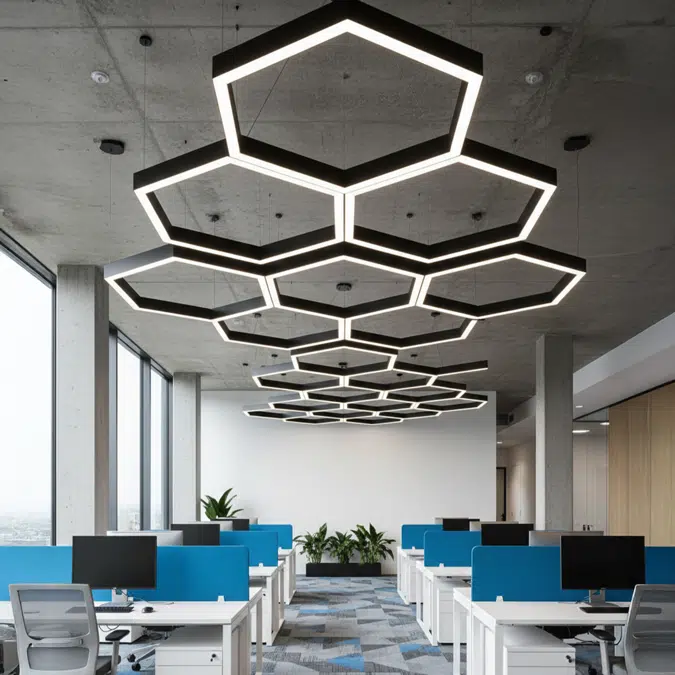

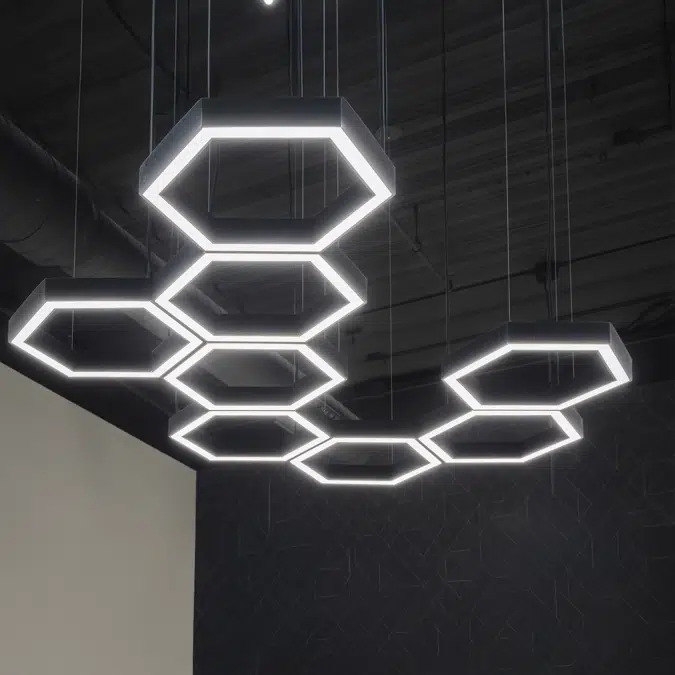

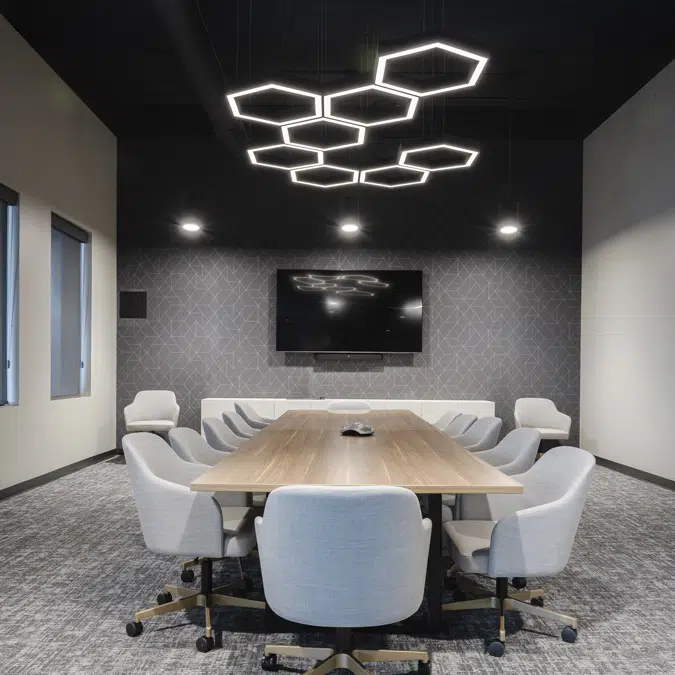

Alcon Lighting's 12000-20-P-HEX hexagon LED pendant uplight and downlight delivers architectural style with functional performance for commercial interiors. Constructed from cold-rolled steel with a snap-in frosted acrylic lens, this damp-location-rated pendant provides even illumination with 0-10V dimming from 1% to 100% and optional independent uplight and downlight controls. Downlight output ranges from 1,280 to 3,074 lumens, with optional uplight delivering 1,060 to 1,466 lumens. Mounting options include 2–4 foot stem or 4–8 foot adjustable aircraft cable suspension. Create dynamic designs with a range of honeycomb layout configurations. Available with emergency battery backup, Buy American Act compliance and advanced sensor options, this pendant light offers modern hexagon and honeycomb lighting in garages, retail, hotels, offices and restaurants.

规格

Construction: Cold-rolled steel

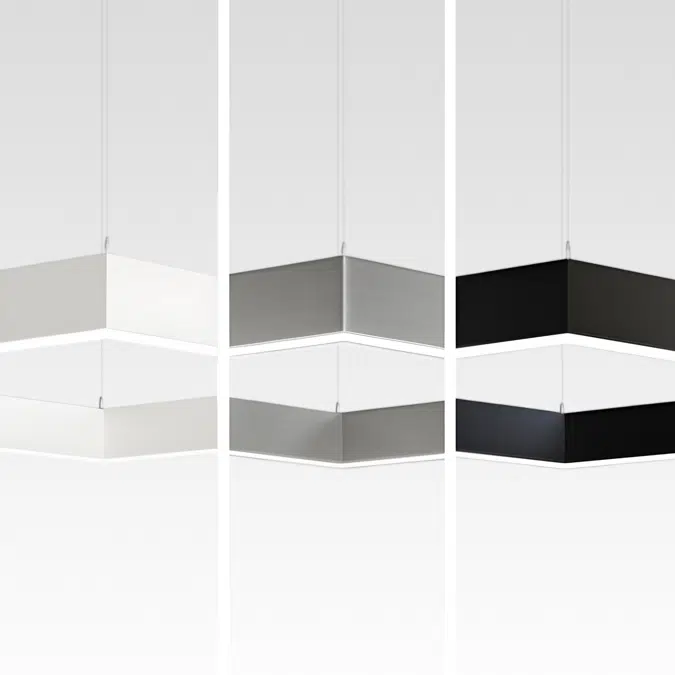

Finish: White, silver, black, custom RAL (see spec sheet)
Lens: Snap-in frosted acrylic lens, flat or 1/2" drop down

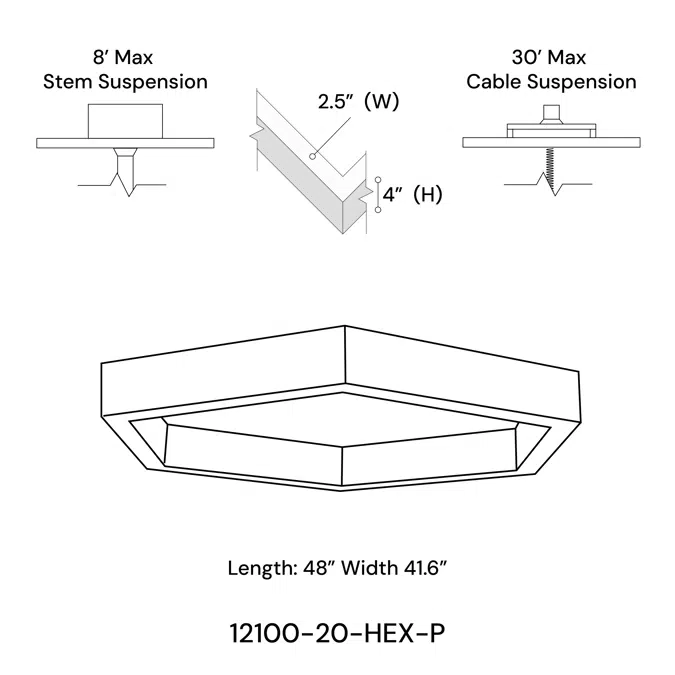

Mounting: 4'-8' or custom adjustable aircraft cable up to 30', 2'-4' or custom stem lengths up to 8', sloped mounting available
Voltage: 120-277V 50/60 Hz
LED downlight wattage/lumens: 60W/7682 lm, 90W/9850 lm, 120W/12734 lm, 160W/16869 lm, 180W/18878 lm
LED uplight wattage/lumens: Not required, 60W/6360 lm, 90W/8796 lm
Color temperature (CCT): 2700K, 3000K, 3500K, 4000K, 5000K
Dimming: 0-10V Dimmable 1%-100%
CRI: 80+ or 90+
Emergency backup options: 8W, 15W, 20W, 25W emergency battery
Optional features: Occupancy & daylight havesting sensor, daylight dimming photo sensor, separate uplight & downlight dimming control
Operating temperature: -4°F (-20°C ) ~ 122°F (50°C)
Nominal lamp life: 100,000 Hours
Life: 60,000 Hours (L70)
Listings: UL/cULus listed for dry and damp locations, Buy American Act Compliant, Assembled in USA
Warranty: 5 Years Carefree for Parts & Components (labor not included)

技术规格

唯一参考12100-20-p-hex-hexagon-pendant-light
产品系列Indoor Lighting
产品组Pendant Lighting
类型对象（单个对象）
发布日期2025-11-21
版本号1
