Ruskin Aluminum Airfoil Blade Sunshade SSAFH8

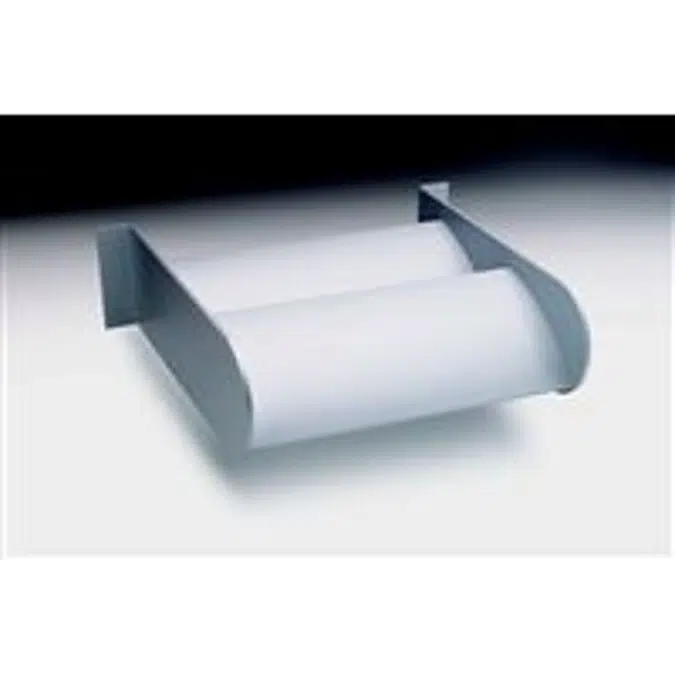

The SSAFH8 is a horizontally mounted sunshade utilizing an 8" extruded airfoil blade

Features:
• Classic airfoil shape blade
• May be provided with fascia or special design outriggers
• Special blade spacing available for specific project requirements

Özellikler

STANDARD CONSTRUCTION
BLADES
8" (203) wide airfoil shape, 6063T5 extruded aluminum, .110"
(3) nominal thickness, 6" (152) center-to-center spacing,
installed at 45° angle.
OUTRIGGERS
6" wide x .375" thick (152 x 10) flat, non-tapered aluminum bar.
Other outrigger designs are available at additional cost.
FASCIA
None.
INSTALLATION
Installation brackets and hardware by others.
CONSTRUCTION
All welded
FINISH
Mill
MINIMUM SIZE
12"w x 12"h (305 x 305).
APPROXIMATE SHIPPING WEIGHT
6 lbs. per sq. ft. (29 kg/m2).
MAXIMUM SINGLE SECTION SIZE
Consult factory.
OVERALL
Single sections may be joined together in the field for unlimited overall size. Field assembly and supporting structure are by others.
VARIATIONS
• Alternate blade spacing.
• Alternate blade installation angles.
• Outrigger Options: tapered bar, channel and tube.
• Fascia Options: channel, round and bullnose shapes.
• Installation brackets and hardware are available.
• Selection of finishes: baked enamel (modified fluoropolymer),
Kynar, Pearledize 50 & 70, prime coat, clear and color anodize.
(Some variation in anodize color consistency is possible.)
All variations are available at additional cost. Consult Ruskin for other special requirements.
