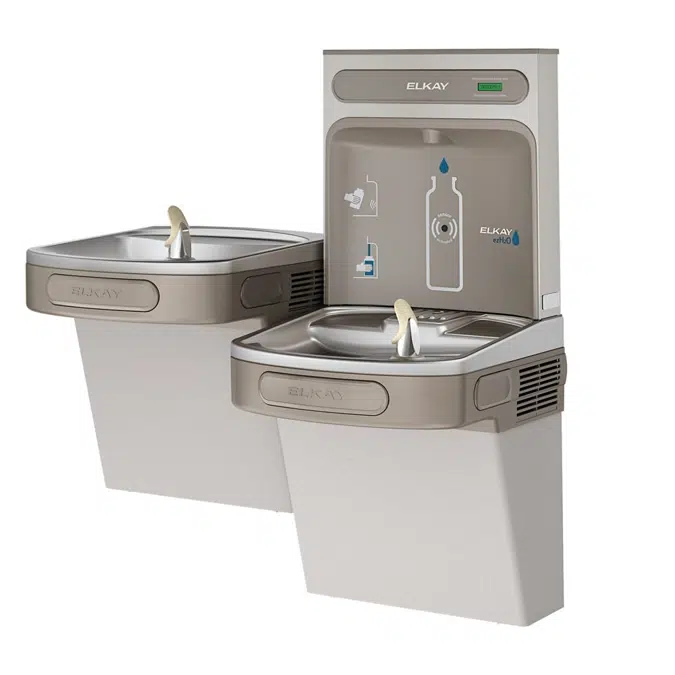

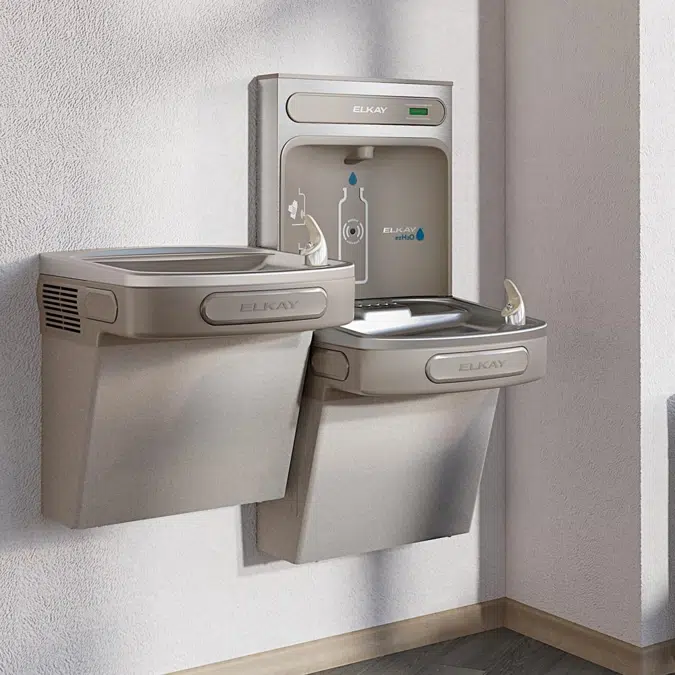

EZSTL8WSLK Elkay ezH2O®  Bottle Filling Station & Versatile Bi-Level ADA Cooler Non-Filtered Refrigerated Light Gray
EZSTL8WSLK Elkay ezH2O®  Bottle Filling Station & Versatile Bi-Level ADA Cooler Non-Filtered Refrigerated Light Gray
EZSTL8WSLK Elkay ezH2O®  Bottle Filling Station & Versatile Bi-Level ADA Cooler Non-Filtered Refrigerated Light Gray
EZSTL8WSLK Elkay ezH2O®  Bottle Filling Station & Versatile Bi-Level ADA Cooler Non-Filtered Refrigerated Light Gray
    Elkay

    EZSTL8WSLK Elkay ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler Non-Filtered Refrigerated Light Gray

    EZSTL8WSLK Elkay ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler Non-Filtered Refrigerated Light Gray. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial*, Green Ticker™, Hands Free, Laminar Flow, Real Drain. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.

    Compliance:

    • ADA & ICC A117.1
    • ASME A112.19.3/CSA B45.4
    • CAN/CSA C22.2 No. 120
    • GreenSpec®
    • NSF/ANSI 61 (Q≤1), 372 (lead free)
    • UL 399

    Features:

    • Touchless, sensor-activated bottle filler designed for easy use; easy-to-operate push-bar-activated bubbler.
    • Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
    • Fill rate is 1.1 GPM.
    • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
    • Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
    • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
    • Real drain system eliminates standing water.
    • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard that protects against injury and microorganisms from growing on it.
    • Touchless, sensor-activated bottle filler designed for easy use; easy-to-operate push-bar-activated bubbler.

    Keywords: lead reduction, reduces lead, lead removal, reduce lead, take out lead, lead free, no lead, low lead, leadfree, lead-free, NSF372, NSF 372, NSF, EZH20

    Özellikler

    Teknik özellikler
    • Benzersiz ref.EZSTL8WSLK
    • Ürün ailesiBOTTLE FILLING STATION
    • Ürün grubuEZ Family
    • TipObje (Tekil Nesne)
    • Yayınlanma tarihi2022-08-19
    • Baskı numarası2
    • Yükseklik (inç)39.06
    • Genişlik (inç)19
    • Derinlik (inç)36.75
    İlgili
    • Ana malzemePaslanmaz Çelik
    • Üretim yeriBirleşik Devletler
    • Ağırlık net (Lbs)85
    Sınıflandırma
    • BIMobject kategorisiHijyenik - İçme Çeşmeleri
    • CSI MasterFormat 2014 kodu22 47 00
    • CSI MasterFormat 2014 başlığıDrinking Fountains and Water Coolers
