SmartPro 120V 1kVA 750W Medical-Grade Line-Interactive Tower UPS
SmartPro 120V 1kVA 750W Medical-Grade Line-Interactive Tower UPS
    Tripp Lite by Eaton

    SmartPro 120V 1kVA 750W Medical-Grade Line-Interactive Tower UPS

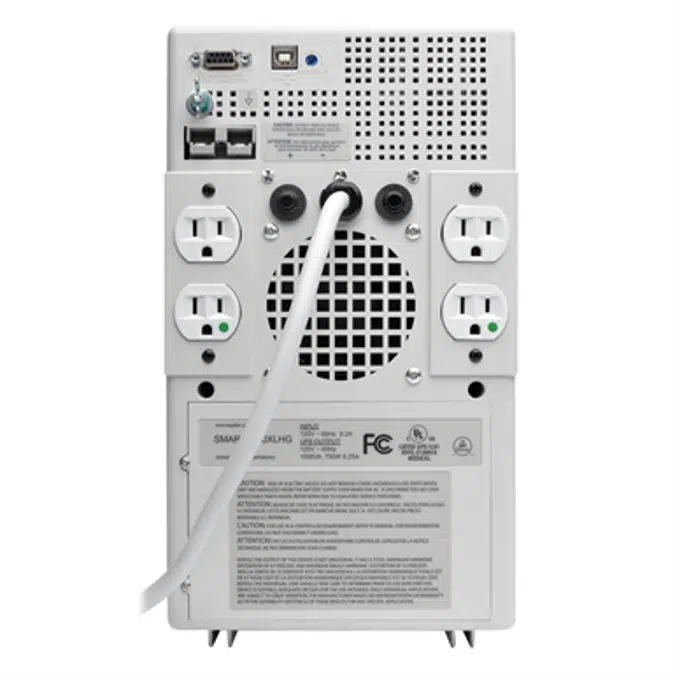

    Tripp Lite’s SMART1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 28 minutes of runtime for a half load or 10 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output without drawing battery power. The SMART1200XLHG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise, while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both backup protection and surge protection rated to 940 joules. The SMART1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite’s included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure. Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART1200XLHG in this type of application will void the battery warranty. For mobile applications, Tripp Lite recommends the SMART1200XLHGL with lithium iron phosphate (LiFePo4) battery
    สเปคสินค้า
    • Installation Form Factors Supported with Optional Accessories Wallmount (UPSWM - tower mounting kit)

      Primary Form Factor Tower

      UPS Power Module Dimensions (hwd, in.) 12.5 x 7.5 x 9.5

      UPS Power Module Weight (lbs.) 45.2

      UPS Power Module Weight (kg) 20.50

      Shipping Dimensions (hwd / in.) 17.00 x 11.40 x 13.10

      Shipping Weight (lbs.) 48.20

      Cooling Method Fan

      UPS Housing Material PVC

      Primary UPS Height (mm) 318

      Primary UPS Width (mm) 191

      Primary UPS Depth (mm) 241

      Grounding Lug Grounding lug (equipotential)

      Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported

      High Availability UPS Features Hot swappable batteries

      UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI); Tested to UL60601-1 (medical grade)

      Product Warranty Period (Worldwide) 2-year limited warranty

      KEYWORDS

      tripp lite pdu

      100kva ups

      server cabinet

      rack

      wall mounted light fixture

      ups

      smartrack

      smartrack low profile

      16u av rack

      cabinet

    สเปคสินค้าด้านเทคนิค
    • Unique ref.SMART1200XLHG
    • Product familyUPS System
    • กลุ่มผลิตภัณฑ์UPS System
    • ประเภทวัตถุ (วัตถุชิ้นเดียว)
    • วันที่เผยเเพร่2019-08-08
    • หมายเลขฉบับ1
    • สูง (นิ้ว)12.5
    • กว้าง (นิ้ว)7.5
    • ความลึก (นิ้ว)9.5
    สิ่งที่เกี่ยวข้อง
    • วัสดุหลักSteel
    • วัสดุรองSteel
    • ออกเเบบโดยสหรัฐอเมริกา
    • ผลิตโดยจีน
    • น้ำหนัก20.5
    การจำแนกประเภท
    • หมวดหมู่ BIMobjectอุปกรณ์ไฟฟ้า - การแบ่งแยกโหลด / ตู้กระจายโหลด
    • IFC classificationFurnishing Element
    • UNSPSC nameElectrical equipment and components and supplies
    • UNSPSC code3912
    • Uniclass 2015 CodeEn_70_30
    • Uniclass 2015 DescriptionElectricity distribution and transmission entities
    • CSI MasterFormat 2014 Code33 80 00
    • CSI MasterFormat 2014 TitleCommunications Utilities
    • OmniClass Number23-35 31 27
    • OmniClass TitlePower Distribution Units
    • CSI UniFormat II CodeD5010
    • CSI UniFormat II TitleElectrical Service and Distribution
