Industry Standard Single Horizontal Carrier for Floor Mounted Back Outlet Bowl - ISCA-101-L/R-BF
Watts

Industry Standard Single Horizontal Carrier for Floor Mounted Back Outlet Bowl - ISCA-101-L/R-BF

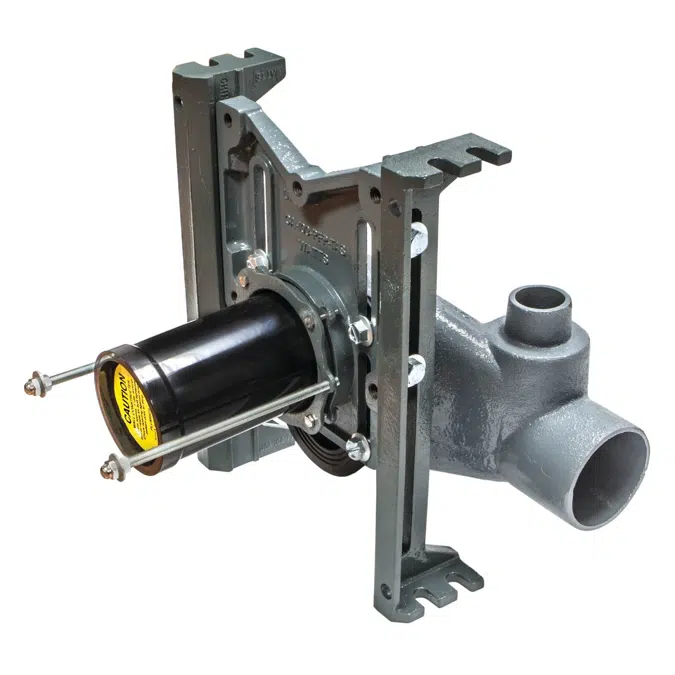

Series ISCA-101-L/R-BF Industry Standard single horizontal water closet carrier for floor mounted back outlet bowl, with epoxy coated cast iron fitting, 4 in.(102mm) no hub waste and 2 in.(51mm) no hub vent connections, epoxy coated cast iron foot supports and patented compression seal faceplate assembly, ABS nipple with integral test cap and neoprene bowl gasket, plated hardware and chrome cap nuts. The closet carrier legs are embossed with incremental measurements markings, allowing contractors to easily adjust the height of the carrier to the most commonly used fixture requirements.

Specifikation
  • Keywords: cast iron, horizontal left, industrial standard, no hub waste and vent, single closet carrier, watts, drainage, drains, plumbing

    Features

    • Compression seal nipple does not require sealants, positively holds test
    • Carrier provides transition to piping system
    • Reversible uprights embossed with incremental height markings
    • For floor mounted back outlet bowls
Teknisk specifikation
  • Unik ref.ISCA-101-L-R-BF-Industry-Standard-Single-Horizontal-Carrier-Floor-Mounted
  • ProduktfamiljDrainage Solutions
  • ProduktgruppFixture Carriers
  • TypObjekt (enstaka objekt)
  • Publiceringsdatum2022-03-17
  • Edition nummer1
  • Höjd (tum)17.75
  • Bredd (tum)15
  • Djup (tum)16.44
Relaterad
  • HuvudmaterialCast iron
  • Designad iUSA
  • Tillverkad iUSA
Klassificering
  • BIMobjektkategoriSanitet - Badrumstillbehör
  • UNSPSC namnPlumbing fixtures
  • UNSPSC kod3018
  • Uniclass 2015 kodPr_20_85_09_96
  • Uniclass 2015 beskrivningWall-hung WC support brackets
  • CSI MasterFormat 2014 Kod22 30 00
  • CSI MasterFormat 2014 TitelPlumbing Equipment
  • OmniClass nummer23-31 00 00
  • OmniClass TitelPlumbing Specific Products and Equipment
  • CSI UniFormat II KodD20
  • CSI UniFormat II TitelPLUMBING

Region tillgänglighet

Nordamerika
Kanada
USA
