EXOS. foam soap dispenser EXOS616X

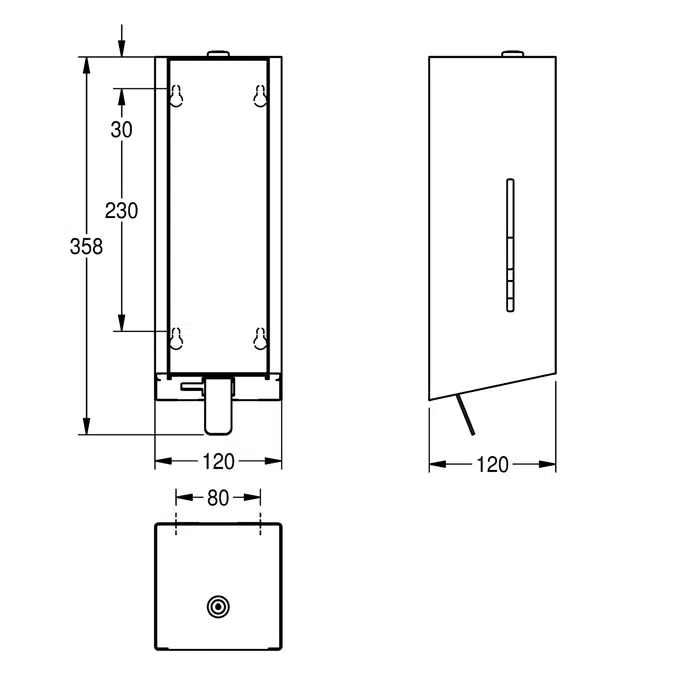

Foam soap dispenser for wall mounting, stainless steel with satin finish, front and casing with InoxPlus surface refinement for the reduction of finger marks and better cleaning characteristics (easy to clean), material thickness 1.2 mm, inspection window on side, with stainless steel pull lever, suitable for Franke foam soap, includes mounting materials and 650 ml Franke foam soap. Dimensions 120 x 357 x 120 mm (W x H x D)

Specifikation

Lock Key-lock
Material code 1.4301 Chrome Nickel steel V2A
Overall depth 120.00 mm
Overall height     358.00 mm
Overall width     120.00 mm
Type of mounting     Wall mounting
Filling quantity     650.00000
Filling quantity uom     ml
Surface treatment     InoxPlus (anti fingerprint)
Type of consumable     Foam soap
Type of operation     Manual operation
Type of soap container     Single-use bag
Surface finish     Satin finished

Teknisk specifikation

Unik ref.2030022945
ProduktfamiljAccessories
ProduktgruppSoap dispensers
TypObjekt (enstaka objekt)
Publiceringsdatum2021-03-17
Edition nummer1
Höjd (mm)358
Bredd (mm)120
Djup (mm)120

Länkar

Produkt-urlhttps://kwc-professional.com/en/exos616x-soap-dispenser-foam_p2030022945
Installationsinstruktionerhttps://stpkwcprodaks01.blob.core.windows.net/public/assets/products/2030022945/mounting-instruction_2030027013.pdf

Relaterad

HuvudmaterialRostfritt stål
Designad iFörenade Arabemiraten
Tillverkad iFörenade Arabemiraten
Vikt netto (kg)2.92

Klassificering

BIMobjektkategoriSanitet - Dispensers
Uniclass 2015 kodPr_40_70_22_81
Uniclass 2015 beskrivningSoap dispensers
