VARIUScare washbasin, barrier-free ANMW501

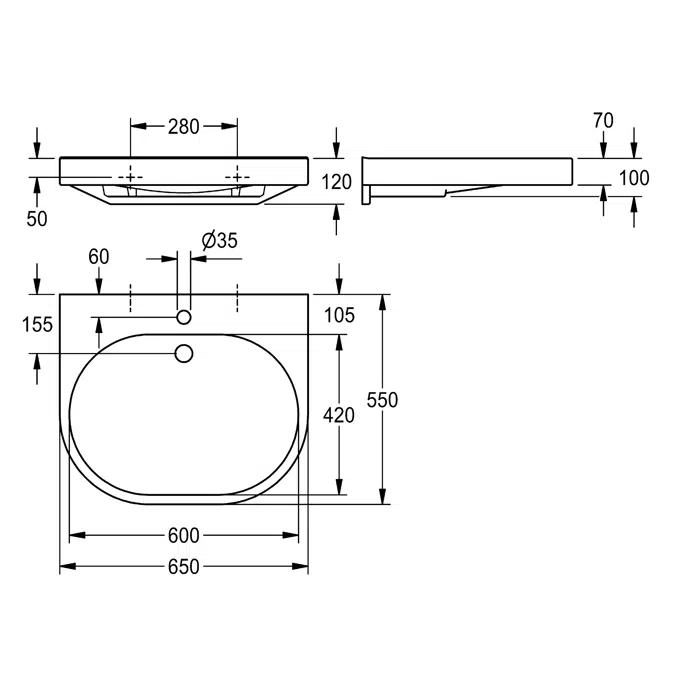

Single washbasin VARIUScare made of MIRANIT resin-bonded mineral material. Colour Alpine white. Wheelchair accessible, with integrated gripping edge. Seamless moulded bowl, without overflow. With tap hole, integral back panel with integrated brackets and holes for fixing. Rear contoured edge. Mounting material included. Dimensions 650 x 120 x 550 mm (W x H x D) Bowl dimensions 600 x 80 x 420 mm (W x H x D)

Specifikation

Material code Miranit
Overall depth 550.00 mm
Overall height 120.00 mm
Overall width 650.00 mm
Type of mounting Wall mounting
Bowl height 80.00 mm
Bowl depth 420.00 mm
Bowl width 600.00 mm
Overflow No
Tap hole diameter 35.00 mm
Tap hole position Middle
Number of tap holes 1.00000
Tap ledge Yes
Type of basin Vanity basin
Siphon diameter DN 32
Barrier-free Yes

Teknisk specifikation

Unik ref.2030020958
ProduktfamiljWash basins
ProduktgruppWash basins
TypObjekt (enstaka objekt)
Publiceringsdatum2021-04-28
Edition nummer1
Höjd (mm)120
Bredd (mm)650
Djup (mm)550

Länkar

Produkt-urlhttps://kwc-professional.com/en/anmw501-wash-basin-accessible_p2030020958
Installationsinstruktionerhttps://stpkwcprodaks01.blob.core.windows.net/public/assets/products/2030020956/mounting-instruction_2030020966.pdf

Relaterad

HuvudmaterialMineral
Designad iTyskland
Tillverkad iTyskland
Vikt netto (kg)22

Klassificering

BIMobjektkategoriSanitet - Handfat
Uniclass 2015 kodPr_40_20_96_96
Uniclass 2015 beskrivningWall-hung wash basins
