CAMPUS Squat pan HDTX504

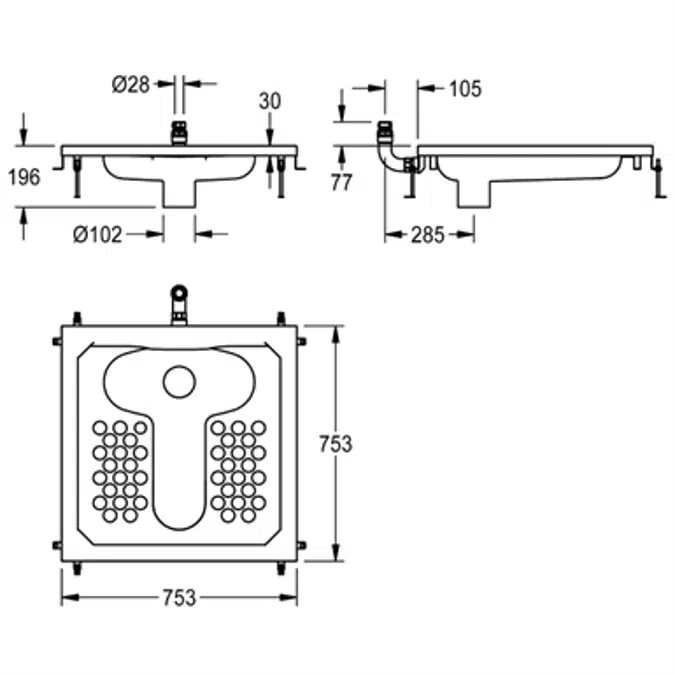

Squat pan made of stainless steel, suitable for DN 20 in-wall flush valves, surface satin finished, material thickness 1 mm, 9 liter flushing capacity, with circular folded edge (22 mm), ircular flushing rim, suicide-resistant. Vertical connection from behind with screw connection of 28 mm diameter, internal DN 100 waste outlet, fixing material and height adjustment included. Dimensions 755 x 200 x 755 mm (W x H x D)

Specifikation

material	stainless steel
material code	1.4301 Chrome Nickel steel V2A
material thickness	1 mm
outlet size	DN 100
overall depth	755 mm
overall height	200 mm
overall width	755 mm
tailor made	no
type of mounting	inset floor mounting
type of toilet seat	no seat
type of WC	squat-pan

Teknisk specifikation

Unik ref.2000108804
ProduktfamiljUrinals / WC
ProduktgruppSquat pans
TypObjekt (enstaka objekt)
Publiceringsdatum2023-09-11
Edition nummer1
Höjd (mm)200
Bredd (mm)755
Djup (mm)755

Länkar

Produkt-urlhttps://kwc-professional.com/en/hdtx504-squat-pan_p2000108804
Installationsinstruktionerhttps://stpkwcprodaks01.blob.core.windows.net/public/assets/products/2000102731/mounting-instruction_01815276.pdf

Relaterad

HuvudmaterialRostfritt stål
Designad iTyskland
Tillverkad iTyskland
Vikt netto (kg)14.5

Klassificering

BIMobjektkategoriSanitet - Toaletter
Uniclass 2015 kodPr_40_20_93_96
Uniclass 2015 beskrivningWC squatting pans
