HEAVY-DUTY WC washbasin combination HDTX805R

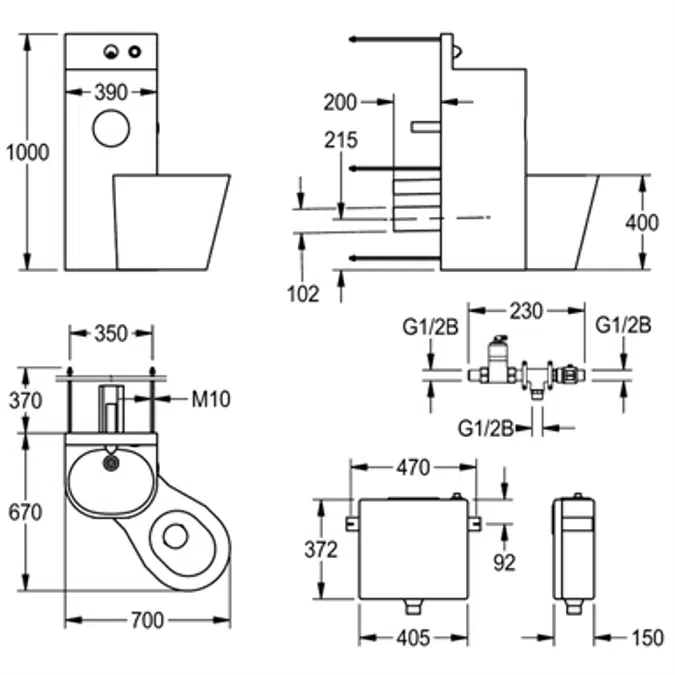

Chromium nickel steel WC wash basin combination, satin finish surface for installing in front of a utility room accessible from the back with remotely controlled tap components for fitting in the utility room, fixing from the back with threaded pins. Mounting stand, material thickness 2 mm with elevated rear wall including wall outlet and press button operation, seamless welded WC paper compartment and seamless moulded wash basin with trap, outlet DN 40. WC pan, material thickness 1.6 mm with full-length skirting, arranged on the right 45 degrees, bowl rim where nothing can hide, flushing certified pursuant to EN 997, horizontal outlet at the back DN 100. Self-closing gate valve with remote control to connect to premixed hot water or cold water, closing automatically with no blow back. Condensation water-proof concealed cistern with single flush technology (9 or 6 litres) Including fixing material. Overall dimensions 700 x 1000 x 670 mm (W x H x D) WC position on the right

Specifikation

body width	390 mm
front access panel	yes
floor fixing joggle plate	no
inlet size	DN 15
material	stainless steel
material code	1.4301 Chrome Nickel steel V2A
material thickness body	2 mm
material thickness WC	1.5 mm
outlet size	DN 50 / DN 100
overall depth	670 mm
overall height	1000 mm
overall width	700 mm
overflow	no
pipework material	stainless steel
self closing push buttons	mechanical
toilet roll holder diameter	153 mm
shroud design	round shape
soap dish	no
spout length	83 mm
surface finish	satin finished
tailor made	no
tap with integrated bubbler	no
type of flushing fitting	WC cistern
type of mounting	bolt mounting
type of toilet seat	no seat
type of WC	floor standing
upper edge of basin height	850 mm
upstand depth	20 mm
upstand height	150 mm
WC height	400 mm
WC position	right

Teknisk specifikation

Unik ref.2000100955
ProduktfamiljPrison units
ProduktgruppWC-washbasin-combinations
TypObjekt (enstaka objekt)
Publiceringsdatum2023-09-01
Edition nummer1
Höjd (mm)1000
Bredd (mm)700
Djup (mm)670

Länkar

Produkt-urlhttps://kwc-professional.com/en/hdtx805r-combi-unit_p2000100955
Installationsinstruktionerhttps://stpkwcprodaks01.blob.core.windows.net/public/assets/products/2000100953/mounting-instruction_2030067296.pdf

Relaterad

HuvudmaterialRostfritt stål
Designad iTyskland
Tillverkad iTyskland
Vikt netto (kg)40

Klassificering

BIMobjektkategoriSanitet - Toaletter
Uniclass 2015 kodPr_40_20_93_86
Uniclass 2015 beskrivningWC and washbasin combined units
