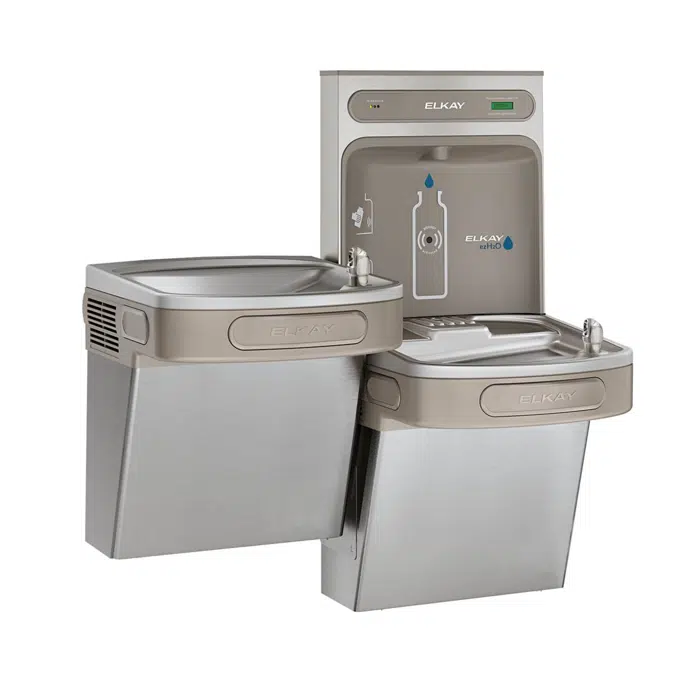

LZSTL8WSVRSK Elkay ezH2O®  Bottle Filling Station with Versatile Bi-Level ADA Cooler Filtered Refrigerated Stainless
Elkay

LZSTL8WSVRSK Elkay ezH2O® Bottle Filling Station with Versatile Bi-Level ADA Cooler Filtered Refrigerated Stainless

ezH2O® Bottle Filling Station with Versatile Bi-Level ADA Cooler Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial*, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor, Automatic Filter Status Reset. Furnished with Vandal Resistant bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.

Compliance:

  • Massachusetts MA approved
  • ASME A112.19.3/CSA B45.4
  • NSFStandard61
  • NSFStandard372
  • CSA B45.4,CSA C22.2 No. 120
  • UL

Features:

  • Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler)
  • All metal, vandal-resistant bubbler with chrome-plated integral hood guard to prevent contamination from other users, airborn deposits and tampering
  • Hermetically sealed refrigeration system provides chilled water to satisfy thirst
  • Quick filter change wrapper provides easy access to filter from front and side of cooler for convenient and efficient filter change in under a minute
  • Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water
  • Visual filter monitor with LED filter status indicator for when filter change is necessary
  • FillSafe recognition automatically recognizes new filter and updates LED light back to green
  • The 3,000-gallon filter is tested and certified to NSF 42 and 53 for lead, Class 1 particulates, chlorine taste and odor reduction
  • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste
  • Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
  • Low-energy LED light encourages use, assists with filling dark bottles and illuminates in dark hallways
  • One-box packaging so the cooler and bottle filler ship together

keywords: ezh2o, bottle filler, lead reduction, reduces lead, reduce lead, take out lead, no lead, low lead, leadfree, lead-free, NSF, NSF372, NSF 372, lead

Teknisk specifikation
  • Unik ref.LZSTL8WSVRSK
  • ProduktfamiljBOTTLE FILLING STATION
  • ProduktgruppEZ Family
  • TypObjekt (enstaka objekt)
  • Publiceringsdatum2022-08-19
  • Edition nummer1
  • Höjd (tum)39.52
  • Bredd (tum)19
  • Djup (tum)36.75
Relaterad
  • HuvudmaterialRostfritt stål
  • Designad iUSA
  • Vikt netto (lbs)87
Klassificering
  • BIMobjektkategoriSanitet - Dricksfontän
