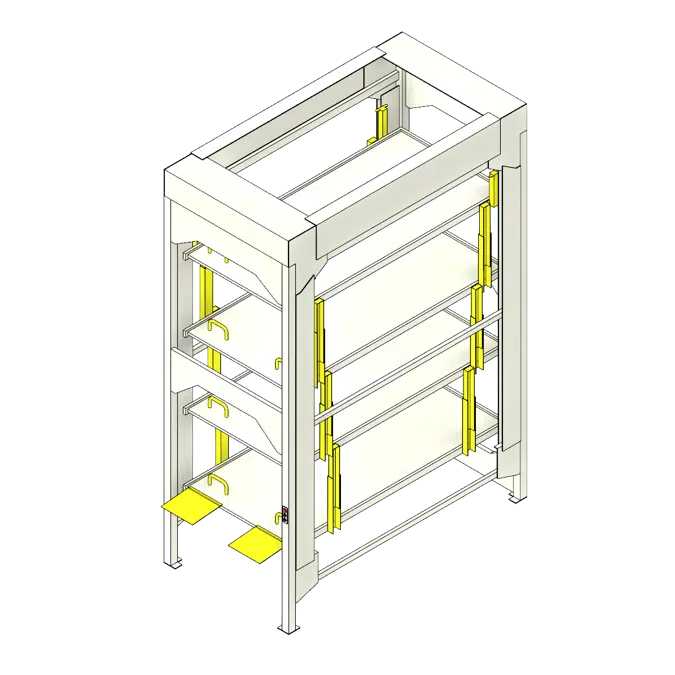

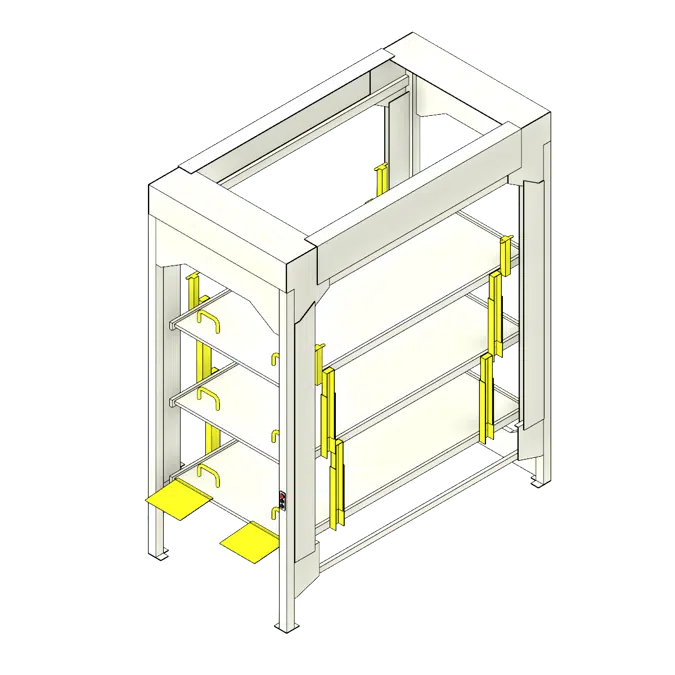

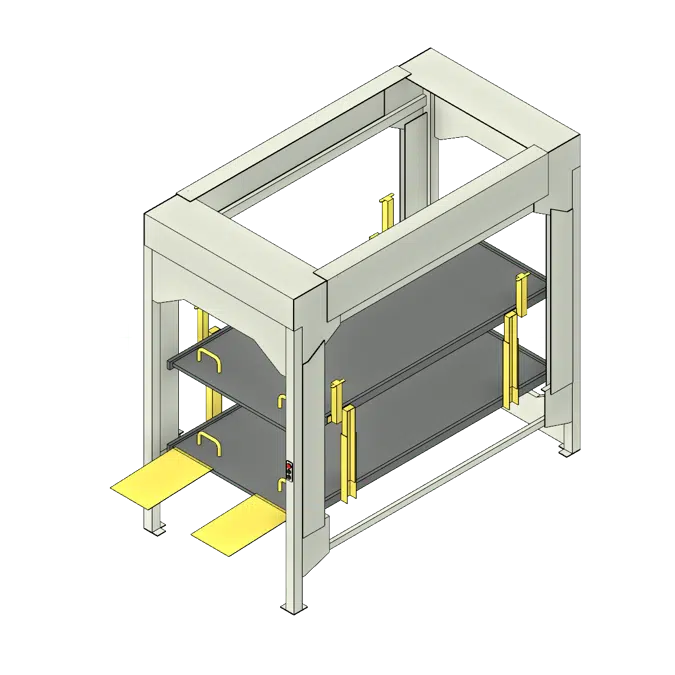

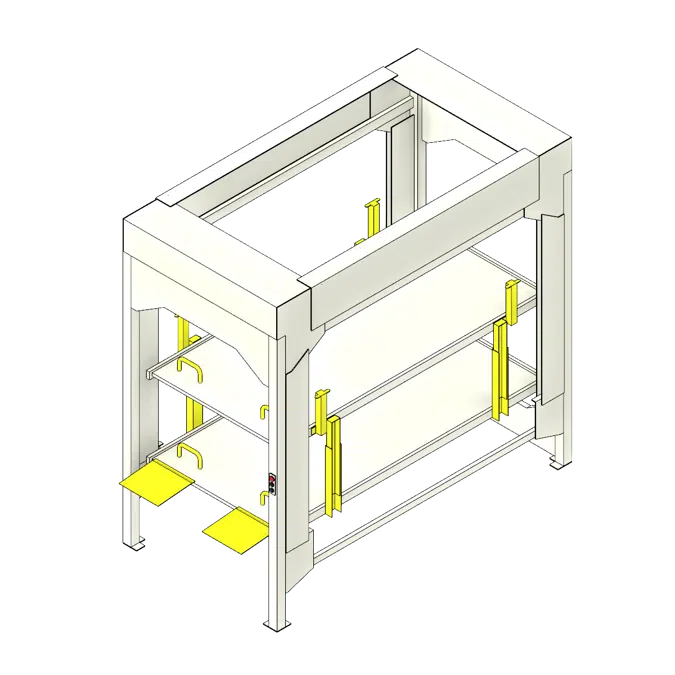

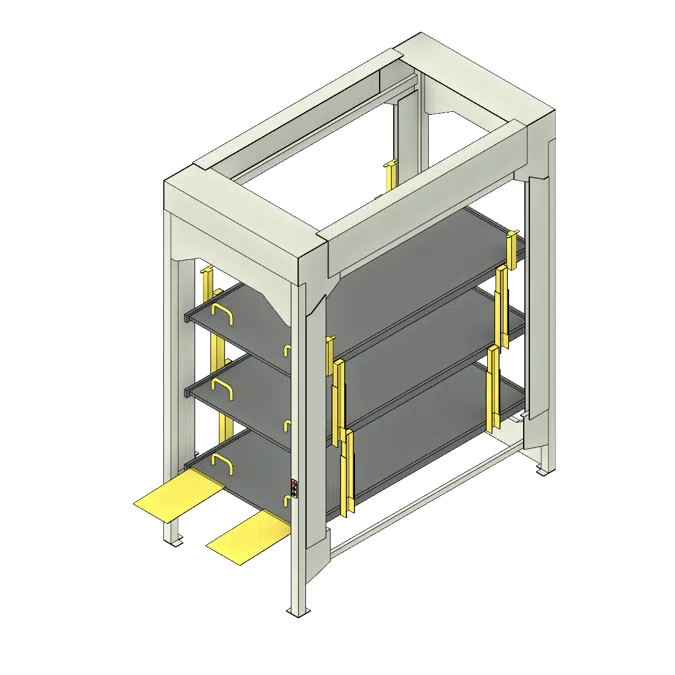

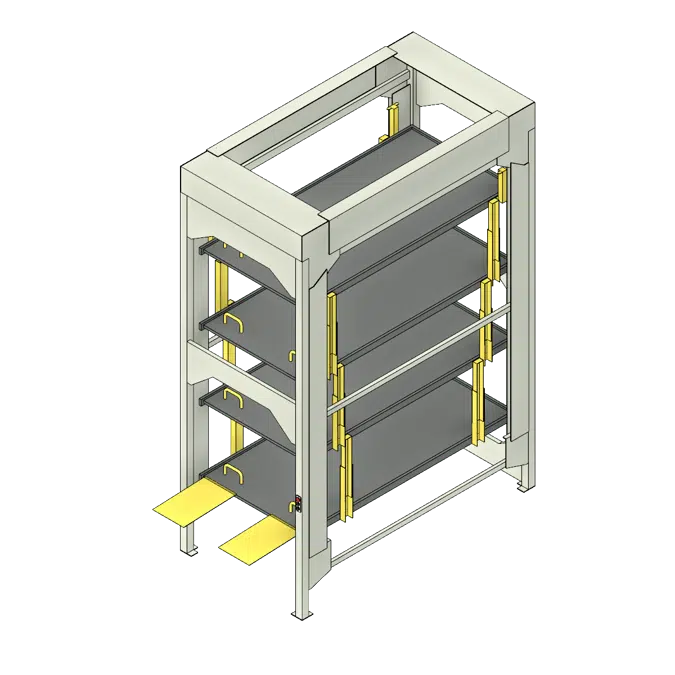

Side Load Hospital Bed Stacker

Universal Storage Lift - Side Load

The Side-Load Hospital Bed Lift is engineered for facilities that require lateral loading access. By stacking beds vertically from the side, it simplifies maneuverability in tighter storage rooms, equipment bays, or hospital back-of-house areas, freeing valuable hallway space and ensuring safety compliance.

Standard sizes
Widths: 55"
Depths: 105"
Heights: 89", 100", 127", 150"

Engineered for hospitals and rehab centers with side-access storage rooms
Stores 2–5 beds vertically (up to 900 lbs per platform)
Side-load configuration for easy lateral handling
Convertible storage for hospital beds, carts, and wheelchairs

The Hospital Bed Stacker efficiently utilizes vertical space, freeing up valuable floor areas and ensuring compliance with Joint Commission and OSHA guidelines. This robust system accommodates 2–5 beds, each weighing up to 900 lbs, with adjustable platforms that can be spaced between 24" and 36" to fit various bed types. It offers front or side loading for flexibility and includes features like seismic-rated anchoring, adjustable wheel chocks, loading ramps, and a safety curtain for operator protection. With backlit controls and a keyed emergency stop, it ensures ease of use and safety. The lift is engineered for quick installation, typically completed in one day, and is proudly built in the USA. It stands out from competitors by offering a convertible system for beds, carts, and wheelchairs, making it a versatile choice for hospitals, rehab centers, and other medical facilities looking to enhance space efficiency, safety, and operational effectiveness.

Specifikim

Construction
- Stores up to 2–5 beds vertically (up to 900 lbs each bed)
- Accommodates the majority of hospital bed sizes and weights in one lift
- Adjustable platforms: 24"–36" spacing to fit multiple bed types
- Front or side loading for maximum flexibility
- Seismic-rated anchoring available
- Adjustable wheel chocks and loading ramps
- Fast installation typically completed in one day per lift by qualified installation team.
- Built in the USA, engineered for long-term reliability
Controls & Safety
- Backlit momentary up/down controls with keyed emergency stop
- Safety curtain & freefall arrestor included for operator protection
- Regulatory Compliance: Meets Joint Commission, CARF, OSHA standards by eliminating corridor storage issues.
Bed Compatibility
- Standard Hospital Bed: Max Width 47", Max Length 96", Avg. Height 26", Capacity up to 900 lbs
- Bariatric Bed: Max Width 47", Max Length 96", Avg. Height 32", Capacity up to 1,000 lbs
- Rehab/Tilt Beds: Max Width 47", Max Length 96", Avg. Height 26", Capacity up to 900 lbs
ROI & Cost Savings
- Floor Space Savings: Each lift saves an average of 60 sq. ft. of floor space.
- Bed Rental Avoidance: Reduces or eliminates expenses from bed rentals.
- Labor Efficiency: Frees staff time for higher-value patient care.
- Payback: Full ROI in less than one year for many hospitals.

Specifikime teknike

Referencë unikeSSG_Lift_Universal_Side_Load_PCS
Familja e produkteveHealthcare
Grupi i produkteveSurgical, Storage, Pharmacy Casework and Exam Room
LlojiObjekt (një objekt të vetëm)
Data e botimit2021-01-29
Numri i botimit1
Gjerësia (inçet)55
Thellësisë (inçet)105

Lidhje

Product URLhttps://fetchbim.com/product/386/ssg-lift-universal-side-load-pcs
Përshkrimet teknikehttps://app.fetchbim.com/Family/31850a5d-cd87-43c0-8a39-4ab8f2c9d692/File/PDF-SpecManual

Të ngjashme

Materiali kryesorPowder coated steel
Projektuar nëShtetet e Bashkuara
Prodhuar nëShtetet e Bashkuara

Klasifikimi

Kategoria BIMobjectMobilje - Dollap & Ruajtje
IFC classificationMobilje
CSI MasterFormat 2014 Code10 56 29.16
CSI MasterFormat 2014 TitlePallet Storage Racks
OmniClass Number23-21 11 11 15
OmniClass TitleCommercial Storage Racking
CSI UniFormat II CodeE10
CSI UniFormat II TitleEQUIPMENT
