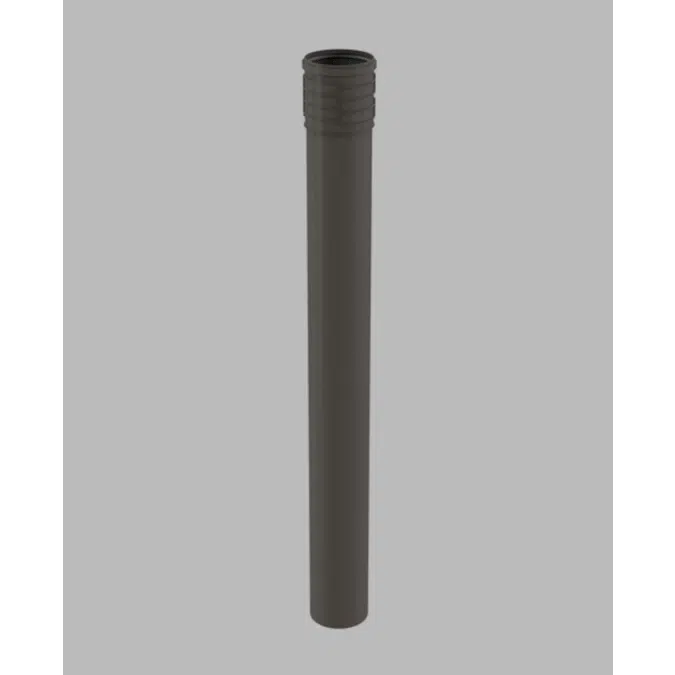

12" x 108" Vent Length
Centrotherm Eco Systems

12" x 108" Vent Length

Constructed from UL1738 and ULCS636 listed polypropylene, industry best InnoFlue 10' vent lengths are a critical component in our industry leading vent system. Engineered to withstand flue gas temperatures up to 230°F (110°C), InnoFlue vent lengths provide an environmentally friendly venting solution that installs quickly without any glues, primers, or solvents. InnoFlue vent lengths are thin-wall and lightweight combining performance and durability.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Engineered for high-efficiency venting up to 230°F (110°C).
  • Durable and lightweight.
  • Integrated gasket assures airtight seal without without glues, primers, or solvents.
  • Available in up to industry-best 10' lengths.
Cпецификация
  • SpecificationsGeneralProduct Name12" x 108" Vent LengthTrade nameInnoFlueGTIN0810017292202Part number250400702040TechnicalColorGrayMaterialPPsSystem typeSingle wallDimensionsLength gross3065 mm / 120.7 inchHeight351 mm / 13.8 inchDiameter flue pipe315 mm / 12 inchWidth351 mm / 13.8 inchNet weight16.367 kg / 36.1 lbsLogisticalIntrastat3917220000Gross weight16.367 kg / 36.1 lbsPackaging / Trade width351 mm / 13.8 inchBase unit packagingUnpackedPackaging / Trade length3065 mm / 120.7 inchPackaging / Trade height351 mm / 13.8 inchPerformanceTemperature resistance (max.)120 °CCertificationCertificates (US/CAN)UL 1738 – ICC-ES / ULC S636 – ICC-ESBack to overview

Техническая спецификация
  • Уникальная ссылка12-x108-ventlength
  • Тип продукцииVent Lengths
  • Группа продукцииSingle Wall - Large diameter
  • ТипОбъект (один объект)
  • Дата публикации2025-07-10
  • Номер версии1
Связанные
  • Разработано вСоединенные Штаты Америки
  • Страна-производительСоединенные Штаты Америки
Классификация
  • Категория BIMobjectВентиляция и кондиционирование воздуха - Воздуховоды
  • Классификация IFCСоединение воздуховода
  • Код ETIMEG015540
  • Название ETIMFittings, flanges and connectors
  • Код Uniclass 2015Pr_65_65_25
  • Описание Uniclass 2015Ductwork and fittings
  • Код CSI MasterFormat 201423 31 13.19
  • Заголовок CSI MasterFormat 2014Metal Duct Fittings
  • Номер OmniClass23-33 49 00
  • Наименование OmniClassHVAC Ductwork
