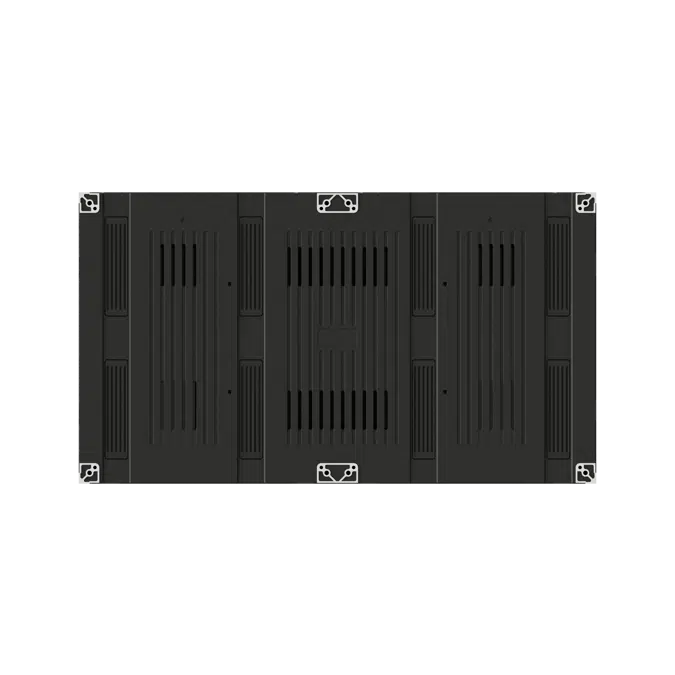

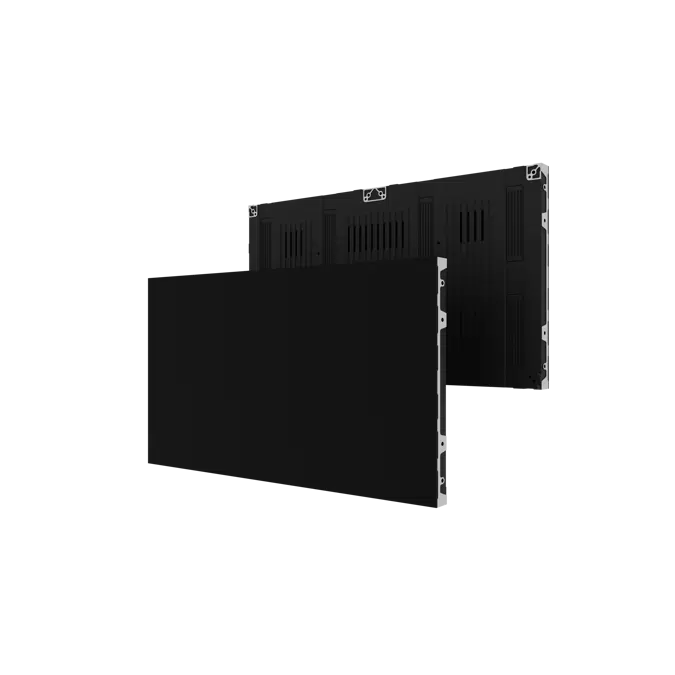

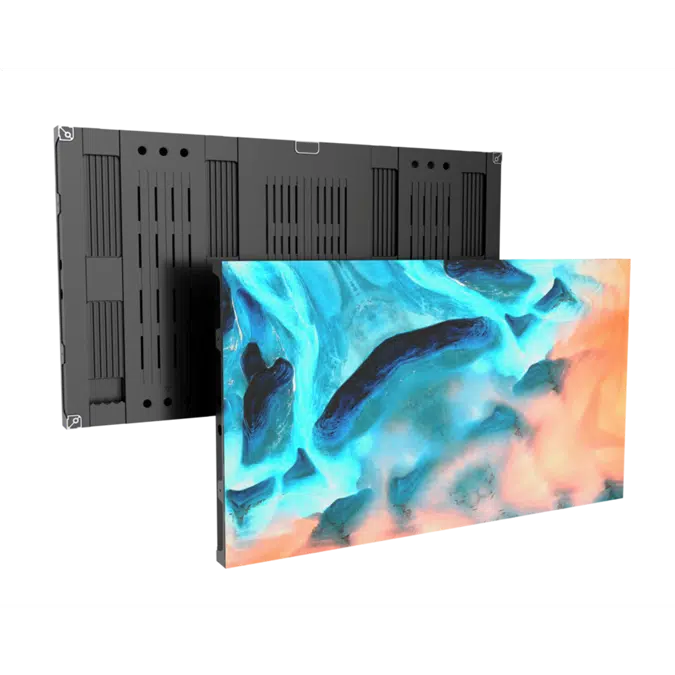

Axion Sirius -16x9 Panels

Traduzido pelo Google,

Série Sirius Indoor 169 e 329

A série Sirius oferece extrema flexibilidade de aplicação, especialmente para telas maiores que a média. Com uma diagonal de gabinete de 54 polegadas e combinada com os espaçamentos mais populares, a Sirius pode criar telas com a mesma qualidade de painéis de 27 polegadas, mas com um quarto do tamanho dos painéis.

Os painéis Sirius têm exatamente o dobro da largura dos painéis padrão 16:9, com 1.200 mm, e o dobro da altura dos painéis padrão 16:9, com 675 mm.

Especificação

Parameter	Value
Series Name	Sirius (SI)
Maximum Brightness (nits)	Up to 1,000
Width	1200 mm (47.2 in)
Height	675 mm (26.6 in)
Depth	28 mm (1.1 in)
Panel Aspect Ratio	16:09
Panel Weight	17.5 kg (38.6 lbs)
Modules per Panel	Up to 16 per panel
Bonding Wire	Copper
Power Common	Anode, Cathode (depending on pitch)
Watts per Panel	446–551W max (156–193W average)
Watts per Sq. Meter	550–680W max (193–238W average)
Max Amps per Cascade	20
Operating Voltage	100–240V AC, 50/60 Hz
Operating Temperature	-10°C to +40°C
Maximum Heat	1,522–1,882 BTU/hr (depending on pitch and panel size)
Humidity	10% – 80%, Non-condensing
IP Rating	IP41
Frame Material	Die-cast Aluminium
Hanging and Stacking	No hanging / 30 stacking max
Rear Bolt Threading	M8
Power Connectors	C13/C14
Data Connectors	RJ45
Service Access	Front
Warranty	3 years (up to 5 available)
Viewing Angle (Horizontal)	160°
Viewing Angle (Vertical)	160°
LED Lifetime (hrs)	1,00,000
Contrast	Up to 6,000:1
Drivers	ICN2153, ICN1069 (depending on pitch)
Scan Rate	1/27, 1/30, 1/60 (depending on pitch)
Processing Depth (bits)	14 default (range: 10–16)
Refresh Rate (Hz)	3,840 default (range: 3,840)
Frame Rate (Hz)	60 default (50, 60 options)
Color Temperature (K)	7,500 default (range: 2,000–12,000)
Color Gamut	N/A
Certifications	EMC-A, CCC, FCC, ETL, LVD, CE, RoHS, CB
