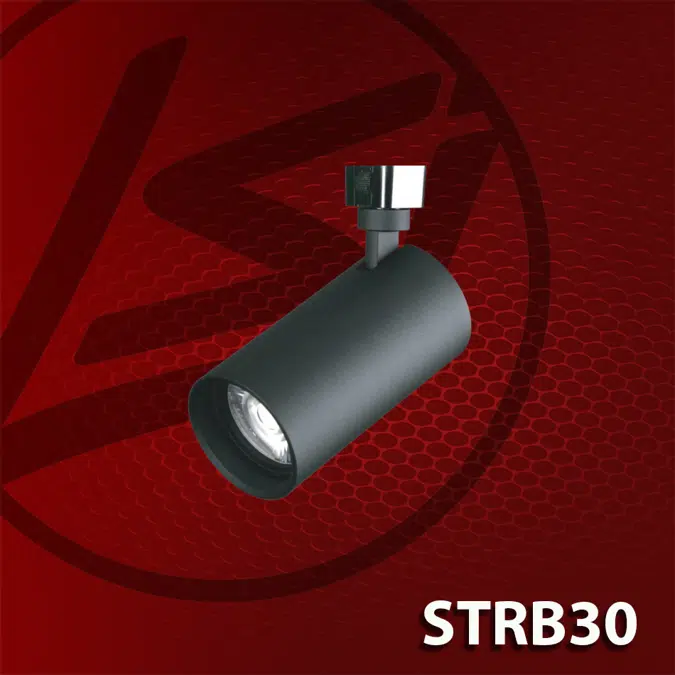

(TRKS) Track Box System with (STRB30) Track Light Fixture

Traduzido pelo Google,

A STRB30 oferece uma solução de iluminação de trilhos de nível especial para as aplicações de varejo mais exigentes. A iluminação de trilhos LSI foi projetada para facilitar a instalação e a eficiência, utilizando a mais recente tecnologia LED. O cabeçote de trilhos STRB30 utiliza tecnologia chip on board integrada e um invólucro de alumínio fundido para eficiência térmica, proporcionando longa vida útil e manutenção de lúmens superior em comparação com fontes de luz tradicionais.

Especificação

FEATURES & SPECIFICATIONS - TRKS
Construction
• Die-cast aluminum LED housing
• Die-cast aluminum swivel joint
• Polycarbonate adapter with copper conductor
• Directionally adjustable up to 90° tilt and 355° rotation
• Compatible with Juno style track Optical System
• LSI track lights utilize integrated chip on board modules
• 3-step McAdam
• Minimum CRI of 80
Electrical
• High-performance driver features overvoltage, undervoltage, short-circuit and over temperature protection
• Leading-edge and trailing-edge dimming down to 2%
• 120V AC Input 50/60 Hz
• L70 Calculated Life: >61,000 Hours
• Total harmonic distortion: <20%
• Power factor: >0.9
• Input current 0.20A / 0.1A
• Surge rating: 2.5kV minimum
Installation
• Quick connect harness to attach fixtures in continuous rows
• Alignment guides ensure proper alignment between tracks
Warranty
• Complete warranty terms located at: https://lsicorp.com/lighting/resources/terms-conditions-warranty/
Listings
• cETLus Listed
• Dry and Damp locations
