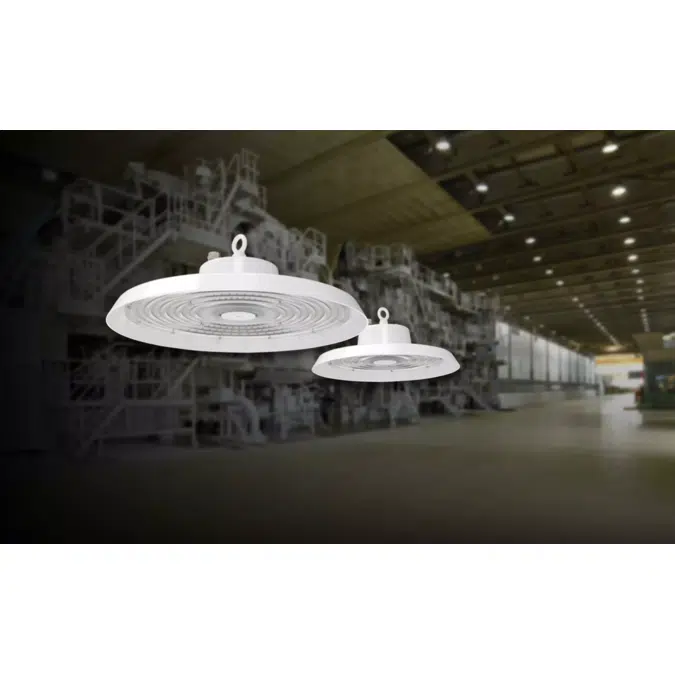

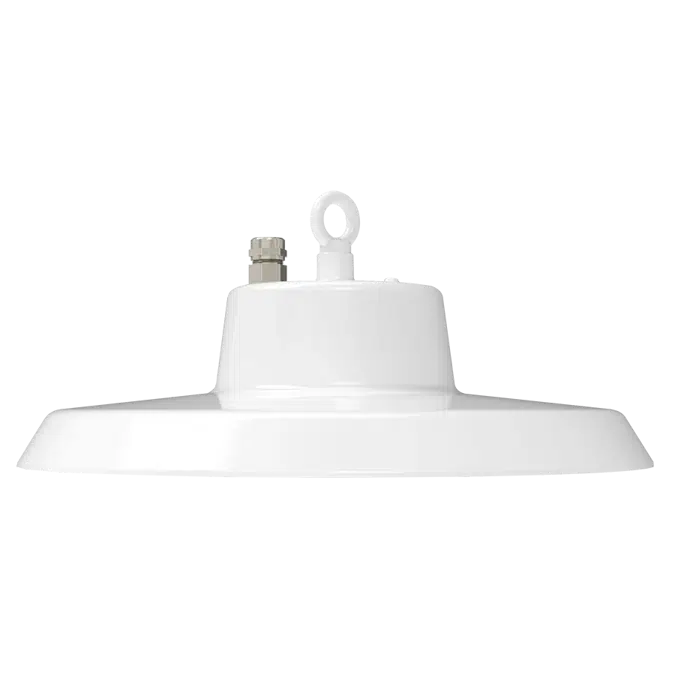

Obiekty BIM - Pobierz za darmo! H22 Field-Adjustable High Bay 100W - 240W

LED CHARACTERISTICS
- LEDs
  - Long-life, high-efficacy, discrete, surface-mount LEDs
- Color Consistency
  - 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
- Color Uniformity
  - RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
COMPLIANCE
- UL Listed
  - Suitable for wet locations
- NSF
  - NSF certified by public health and safety
- IK Ratings
  - IK10 rated for protection against impact
- DLC Listed
  - This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
CONSTRUCTION
- Cold Weather Starting
  - The minimum starting temperature is -40°C (-40°F)
- Cold Weather Starting for Battery Backup
  - The minimum starting temperature is 0°C (32°F)
- Maximum Ambient Temperature
  - H22, H22/480 and H22XL/480 : Suitable for use in up to and 50°C (122°F)
  - H22XL : Suitable for use in up to and 45°C (104°F)
- Maximum Ambient Temperature for Battery Backup
  - Suitable for use in up to 50°C (122°F)
- Mounting
  - Comes standard with a hanging hook and a 6-foot cord. Heavy-duty 3/4"-14 NPT hook and 3/4"-14 pendant mount capable (pendant by others).
- Housing
  - Precision die-cast aluminum
- Lens
  - Polycarbonate
- Green Technology
  - Mercury and UV free. RoHs-compliant components.
- Finish
  - Formulated for high durability and long lasting color
- IP Rating:
  - Ingress protection rating of IP69K for high-pressure and hightemperature cleaning
ELECTRICAL
- Drivers:
  - Constant Current, Class 1, 120-277V, 50/60 Hz,
  - H22:
    - 150W: 120V: 1.17A, 208V: 0.68A, 240V: 0.61A, 277V: 0.39A
    - 120W: 120V: 0.78A, 208V: 0.56A, 240V: 0.50A, 277V: 0.45A
    - 100W: 120V: 0.82A, 208V: 0.48A, 240V: 0.43A, 277V: 0.39A
  - H22XL:
    - 240W: 120V: 1.99A, 208V: 1.12A, 240V: 0.97A, 277V: 0.86A
    - 200W: 120V: 1.66A, 208V: 0.96A, 240V: 0.84A, 277V: 0.74A
    - 150W: 120V: 1.29A, 208V: 0.75A, 240V: 0.65A, 277V: 0.59A
  - Constant Current, Class 1, 480V, 50/60 Hz,
  - H22:
    - 150W: 480V: 0.32A
    - 120W: 480V: 0.27A
    - 100W: 480V: 0.23A
  - H22XL:
    - 240W: 480V: 0.51A
    - 200W: 480V: 0.44A
    - 150W: 480V: 0.34A
- Dimming Driver:
  - Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
- Battery Backup:
  - Battery backup will operate the LED Lamp for 90 minutes if power falls.
  - Wired for 120-277V.
- Emergency Light Loss Factor: (120-277V)
  - H22:
    - 150W: 23.3%
    - 120W: 27.6%
    - 100W: 31.3%
  - H22XL
    - 240W: 15.7%
    - 200W: 17.7%
    - 150W: 21.8%
  - Emergency Light Loss Factor: (480V)
  - H22:
    - 150W: 28.1%
    - 120W: 33.5%
    - 100W: 39.0%
  - H22XL
    - 240W: 18.2%
    - 200W: 21.0%
    - 150W: 26.8%
- Surge Protection: 4kV + 6kV
FIELD ADJUSTABLE
- Field Adjustable:
  - H22: 150/120/100W - Factory default 150W
  - H22X: 240/200/150W - Factory default 240W
- Color Temperature: 3000/4000/5000K - Factory default 4000K
- Beam Angle: 105°/90°/60° - Factory default 90°
PERFORMANCE
- Lifespan
  - 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 Calculations
OTHER
- Warranty
  - The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty

H22 Field-Adjustable High Bay 100W - 240W
