Control 414C/T-VA 4" Two-Way Coaxial Ceiling Loudspeaker for Life Safety Applications (EN54-24)

JBL Professional

Control 414C/T-VA 4" Two-Way Coaxial Ceiling Loudspeaker for Life Safety Applications (EN54-24)

The JBL Control 414C/T-VA, part of the Control 400 Standard Coverage Series, is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and an integrated enclosure that is ideal for installation in most ceiling plenum spaces. This model is EN54-24 certified, making it suitable for life safety applications.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

The Control 414C/T-VA includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 414C/T-VA supports both 70V/100V and low impedance applications.

Features

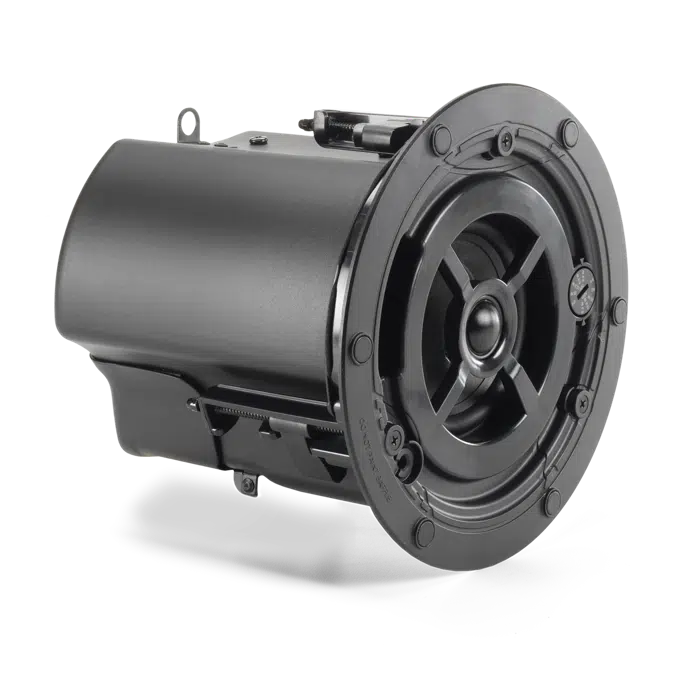

100 mm (4 in) woofer and 20mm (0.75 in) soft-dome tweeter
Integrated enclosure that is ideal for installation in most ceiling plenum spaces
Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input

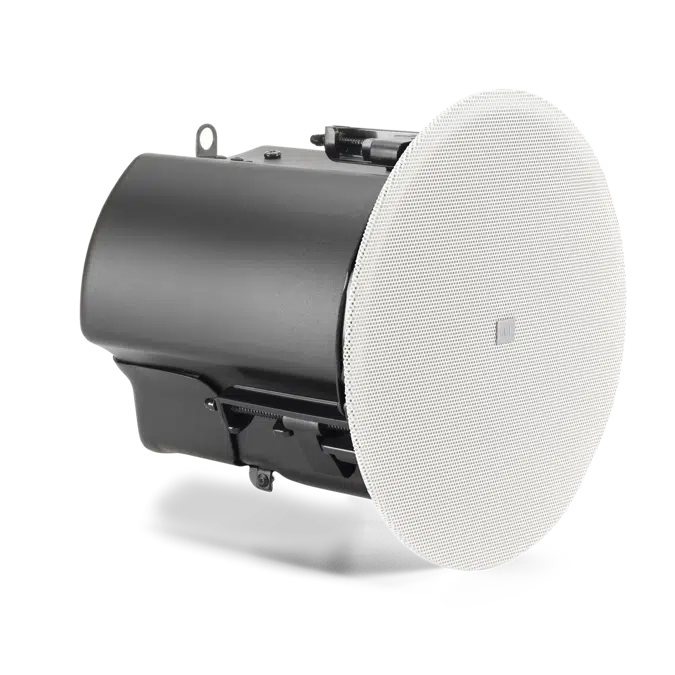

Full-face, easily paintable magnetic grilles

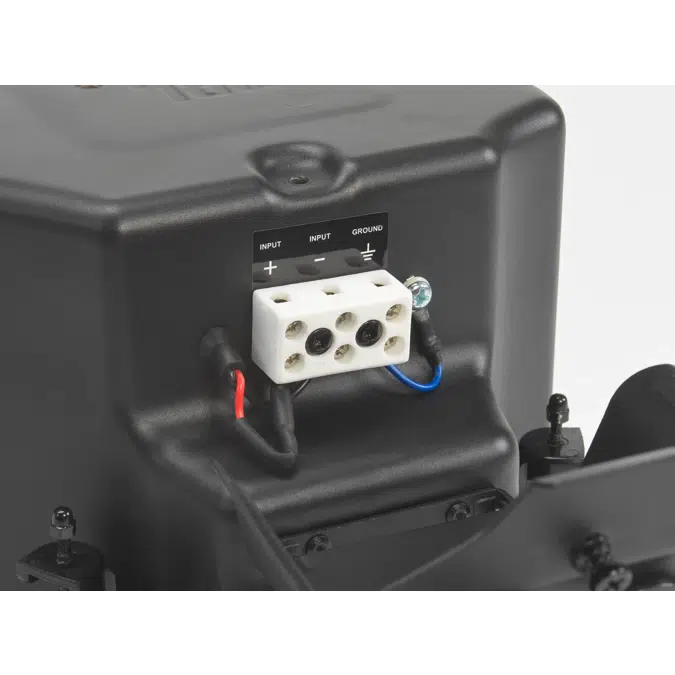

Top and side cable entry options

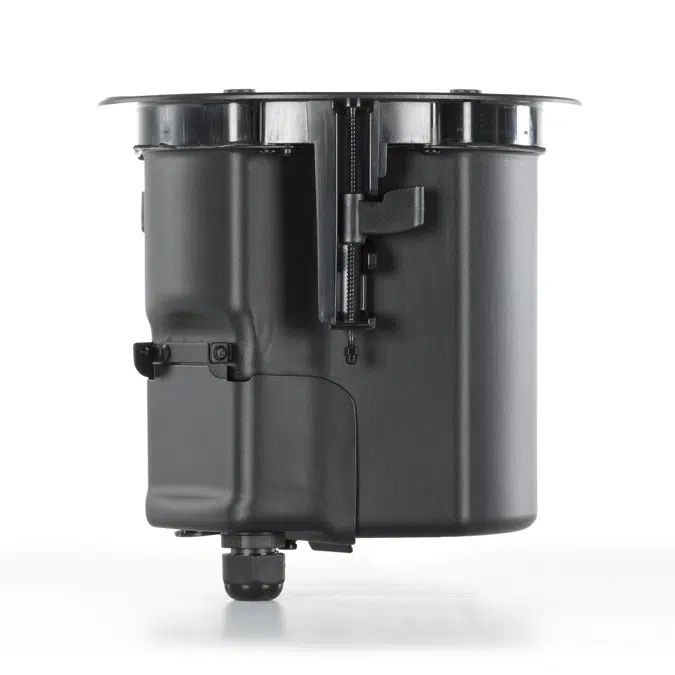

Robust and adaptable dogears for wide range of ceiling thicknesses
IP33 rated
EN54-24 Certified for Standard for Life Safety applications

Opis

Frequency Range (-10 dB)	65Hz - 20kHz
Power Capacity	45W (180W Peak) Cont. Pink Noise (2 hrs) 30W (120W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W)	86dB
Coverage Angle	130° conical
Maximum SPL (1m)	103 dB continuous pink noise (109 dB peak)
Nominal Impedance	8Ω
Transformer Taps	70 V: 25 W, 12.5 W, 6.3 W & 3.2 W 100 V: 25 W, 12.5 W, 6.3 W
Drivers	LF: 100 mm (4.0 in) with paper cone, SBR surround. HF: 20 mm (0.75 in) soft dome
Ceiling Cutout Size	168 mm (6.6 in)
Dimensions	206 mm (8.2 in) H x 203 mm (8.1 in) dia. 197 mm (7.9 in) from bottom of ceiling tile to top of gland nut.
Safety Agency Rating	EN 54-24:2008 certified Type A. Designed in accordance with BS 5839-8 and EN 50849. Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental	IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.
Optional Accessories	JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG white (RAL9003) weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color	Stock grille is White (RAL9003), paintable (please read the user manual before painting)
Net Weight (ea)	2.50 kg (5.51 lbs)
Shipping Weight (pair)	9.52 kg (20.99 lbs)
SKU Numbers	JBL-C414C/T-VA

Specyfikacja techniczna

Nr referencyjnycontrol-414c-t-va-4-two-way-coaxial-ceiling-loudspeaker-for-life-safety-applications-en54-24
Rodzina produktuInstalled Sound
Grupa produktuCeiling Speakers
TypObiekt (jeden obiekt)
Data publikacji2025-11-04
Numer edycji1

Linki

Url produktuhttps://jblpro.com/en-US/products/control-414c-t-va
Instrukcja montażuhttps://jblpro.com/en-US/products/control-414c-t-va#downloads
Certyfikacja produktuhttps://jblpro.com/en-US/products/control-414c-t-va
Opis technicznyhttps://jblpro.com/en-US/products/control-414c-t-va#:~:text=Control%20414C/T%2DVA%20Spec%20Sheet

Dodatkowe informacje

Zaprojektowano wStany Zjednoczone
Wyprodukowano wStany Zjednoczone

Klasyfikacja

Kategoria BIMobjectElementy elektroniczne - Elektronika dźwięku
Klasyfikacja IFCObiekt
Kod ETIMEC000682
Nazwa ETIMLoudspeaker set
Uniclass 2015 CodePr_70_75_36_50
Uniclass 2015 DescriptionLoudspeakers
CSI MasterFormat 2014 Code11 52 00
CSI MasterFormat 2014 TitleAudio-Visual Equipment
OmniClass Number23-37 15 29 11 13
OmniClass TitleLoudspeakers
